Tronair 06-5010-6500 Fluid Service Cart - 6 Gallon (CE)
On the way to us
Ships around July 24
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

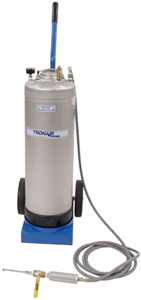

The Tronair 06-5010-6500 is a fluid service cart with a 6 gallon capacity.
Standard Features
- Anodized aluminum housing
- #6 SAE female ports
- EPR or Vitron seals
- 2 micron absolute rating per ISO 4572
- Beta rating > 1000 at 4 micron
- Dirt capacity of 1.38 grams at < 50 psig
- 150 psi (10 bar) collapse rating
- 3,000 psi (207 bar) maximum pressure rating
- Length: 4.75 in (12 cm)
- Diameter: 1.5 in (3.8 cm)
- Dry Weight: 1 lb (.5 kg)
| General Information | |
|---|---|
| Part # | 06-5010-6500 |
| Manufacturer | Tronair |
| NSN | 4930014926898 |
| Manual 1 | View Tronair 06-5010-6500 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 60 lbs. |
| Shipping Dimensions | 17 x 14 x 45 in. |
| Freight NMFC | 128000 |
| Schedule B | 8413600040 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Fluid Type | MIL-PRF-5606 / MIL-PRF-83282 |
| Height | 44 (112) in (cm) |
| Length | 17 (43) in (cm) |
| Weight | 44 (20) lb (kg) |
| Width | 14 (36) in (cm) |
| Spare Parts | |
|---|---|
| G-1159-103504 | Screw, Round Head |
| G-1202-1035 | Stopnut, Elastic |
| G-1203-1095 | Jamnut, Elastic |
| G-1250-1090N | Flatwasher |
| H-1218 | Vessel, Pressure |
| H-1221 | Air Valve |
| H-1223 | Grip, Handle |
| HC-1831 | Certified Pressure Gauge (0-160 psi/11 bars) |
| HC-2141 | Assembly, Inline Filter (VITON) |
| N-2005-04-S | Elbow, Male |
| N-2007-05-S-B | Straight Thread Connector |
| N-2026-01-S | Swivel, 37° JIC |
| N-2210-02-S | Reducer, Pipe Thread |
| N-2214-03-S-B | Straight Thread Connector |
| PC-1017-02-125 | Safety Valve (125 psi/9 bars) |
| TF-1047-01*180 | Hose, Push-on (15 ft/4.57 m) |
| U-1001-01 | Wheel |
| V-1001 | Label, Made In USA |
| V-1002 | Label, Tronair |
| V-1101 | Label, MIL-PRF-83283 |
| V-1102 | Label, MIL-PRF-5606 |
| V-1163 | Label, Max Fluid Level |
| V-1164 | Label, 85 psi Max |
| V-1431 | Tag, Flush System |
| V-2033 | Label, Closed Hydraulic System Caution |
| V-2118 | Label, Serial Number (CE) |
| Z-1325-00 | Weldment, Cart |
| Z-2152 | Assembly, Fill Valve |
Customers also viewed
Fluid Service Unit (Pe) (Ce)
2.5-Gallon Skydrol Fluid Service Unit, Max. 125 psi
2.5-Gallon Engine Oil Service Unit – 23699 & 87257 Fluids
– 23699 & 87257 Fluids
– 5606 & 83282 Fluids
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Eclipse | 500 |
| Hawker Beechcraft | Beech 1900 , Beech 99 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
