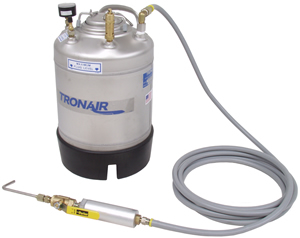

Tronair 06-5009C6600 – 2.5-Gallon Skydrol Fluid Service Unit, Max. 125 psi (CE)

The Tronair 06-5009C6600 is a portable fluid service unit designed to provide a source of clean, pressurized fluid for remotely servicing reservoirs and other maintenance functions. This unit will retain enough air pressure for proper operation for an eight-hour period. Thereafter, recharging may be required.

Standard Features

• ASME-certified stainless steel reservoir
• 2-micron filtration (beta rating > 1,000 @ 4µm per ISO 4572)
• 100 psi (6.9 bar) certified pressure gauge
• 125 psi (8.6 bar) safety pop-off valve
• 15-ft. (4.6 m) #4 hose with 37° JIC female swivel connector, shutoff valve, and filler tube
• Large filtered fill port
• Inline filter
• CE rated

Specifications

• Reservoir Capacity: 2.5 gallons (9.5 liters)
• Maximum Pressure: 125 psi (8.6 bar)
• Fluid Type: Phosphate-Ester (Skydrol)
• Dimensions: 9.5" dia. x 16.9" H (24 x 42.8 cm)
• Weight: 44 lbs. (19.8 kg)

Calibration Information

The Certificates of Calibration supplied for the gauge(s) on this unit contain the calibration data for the actual instrument calibrated and the calibration date of the STANDARD used to perform the calibration check.

The due date for instrument recalibration should be based on the date the instrument was placed in service in your facility. Recalibration should be done on a periodic basis as dictated by the end user's quality system or other overriding requirements.
