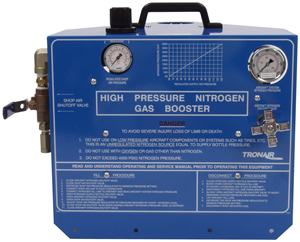

Tronair 18-4201-1010 Aircraft Nitrogen Booster
Used Also Available
In addition to selling this item as new, we also have used or refurbished of this item in stock (subject to prior sale).
Get a Quote or Ask a Question
Simply fill out the form below and you will receive a quote via email shortly.
| Name: | E-Mail: |
| Company Name: | Phone: (optional) |
| Questions/Comments: (optional) | |
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
The Tronair Model 18-4201-1010 Pneumatic Nitrogen Booster provides the capability of boosting remaining lower pressure
Nitrogen from supply bottles to the required higher aircraft system pressure; up to 4,000 psig maximum.
This Nitrogen Booster incorporates an air driven pressure amplifier which cycles automatically with 150 psig (10.3 bars)
maximum air pressure input at 80 SCFM volume.
Specifications
- Output Hose: 15 ft (4.6 m) long with #4, 37 degrees JIC (female 37 degrees flared swivel fitting) at aircraft hook-up end
- Nitrogen Output Rating: 4,000 psig (276 bar) Maximum. (Do Not Exceed)
- Minimum Supply Bottle Pressure: 500 psig (34.5 bar)
- Shop Air Input: 80 SCFM at 150 psig (10.3 bar) Maximum
- Shop Air Input Connection: 1/2 in (1.27 cm) Female NPT
- System pressure relief is provided by a non-resettable, 5,700 psi (393 bar) rupture disc assembly
- Unit mounts on Nitrogen supply bottle or Tronair Bottle Cart, Part Number: 12-3104-0000
- Temperature Range: 0 degrees to 200 degrees F (17.7 to 93.3 degrees C)
Standard Features
- Automatic - 18-4201-1010
- Mounts on standard nitrogen bottles with CGA-580 connector
- 80 cfm (37.8 lps) at 150 psi (10.3) bar shop air required
- Temperature range 0 to -200 degrees F (17.7 to 93.3 degrees C)
- Sturdy welded steel construction
- 15 ft (4.6m) #4 output hose with 37 degrees JIC female swivel connector
- 5,000 psi (345 bar) certified pressure gauge
- 0 to 160 psi (0 to 11 bar) certified input regulator pressure gauge
- When input regulator is set at a specified pressure the booster automatically shuts down when set pressure is reached
- Finish: Durable Powder Coat Tronair Blue
| Specifications | |
|---|---|
| Length | 20 (51) in (cm) |
| Height | 15 (38) in (cm) |
| Width | 20 (51) in (cm) |
| Weight | 45 (20) lb (kg) |
| Max Output | 4000 (276) psi (bar) |
| Replacement Parts | Quote? | |
|---|---|---|
| HC-1254 | VALVE, NEEDLE (MB) | |
| H-1780 | HANDLE, GRAB | |
| N-2001-03-S-B | ELBOW, STRAIGHT THREAD | |
| S-1385-01 | ||
| HC-1137 | VALVE, BALL | |
| N-2065 | PLUG, MODIFIED | |
| PC-1035 | BRACKET, Z-TYPE | |
| J-2036 | BLOCK, CARTRIDGE | |
| J-2037 | SPACER, PUMP | |
| Z-2541-00 | ||
| PC-1017-02-150 | VALVE, SAFETY | |
| PC-1032 | FILTER | |
| Z-2540-00 | ||
| PC-1034 | REGULATOR | |
| PC-1033 | Gauge, Pressure | |
| HC-2003-208 | ||
| J-2038 | SPACER, BRACKET | |
| HC-1644 | GAUGE, PRESSURE 0-6000 PSI | |
| H-1803-02 | ||
| V-1450 | LABEL, NITROGEN BOOSTER | |
| N-2007-03-S-B | CONNECTOR, STR THD | |
| Z-2512-00 | ||
| PC-1043 | ELEMENT, FILTER | |
| H-1831 | RING, BREAKING | |
| K-2144 | KIT, AIR HOSE REPL. | |
| Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you. | ||
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
| Shipping Information | |
|---|---|
| Pkg. 1 Weight | 56 lbs. |
| Pkg. 1 Dimensions | 27 in. x 23 in. x 22 in. |
| Pkg. 1 Type | Carton |
| Freight Class | 125 |
| Freight NMFC | 188560-5 |
| Schedule B | 8414.80.9000 |
Parts
As an authorized Tronair Distributor, we sell factory OEM parts for the 18-4201-1010. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.
