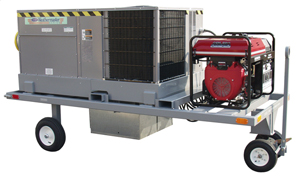

Gas 4 Ton Air Conditioner - Tronair 17A7505-7000
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Standard Features (Models: 17-7505-7000 Gasoline, 17-7519-0000 Diesel, 17-7524-0000 LPG):
- Cooling capacity 45,000 Btu/hr output
- 1600 cfm maximum air flow
- Refrigerant type R-410A is environmentally safe
- Hermetic compressor belt driven with over current and over temperature protection
- 1,200-2,000 cfm propellor type condenser fan
- 12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
- Dual suction high density filters
- 115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch - 17-505-7000 & 17-7519-0000
- Sturdy welded frame with 16 gauge sheet metal cabinet
- Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
- Trailer mounted - Finish: Black
- 20 HP Honda engine - 17-7505-7000
- 18 HP Lombardini engine - 17-7519-7000
- 23 HP Subaru engine - 17-7524-0000
- 13 gal (49.2 l) tank with run time of 8 hours - 17-7505-7000
- 8 gal (30.3 l) tank with run time of 10 hours - 17-7519-0000
- 240/1 phase, 13.5 kW AC output
- Finish: Acrylic Enamel Gray
- Available Option, 8.7 kW heater, 29,700 Btu/hr maximum thematically controlled (Btu output will vary with input voltage) insert an "A" as the third digit of the model number (e.g. 17A7505-7000)
- Units are designed to cool and/or heat an aircraft through a window or door opening
| General Information | |
|---|---|
| Part # | 17A7505-7000 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Freight NMFC | 114125 |
| Schedule B | 8415820115 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Height | 64 (163) in (cm) |
| Input | 230V/60Hz/1ph/56.4Amps/Gas |
| Length | 132 (335) in (cm) |
| Weight | 1,950 (885) lb (kg) |
| Width | 61 (156) in (cm) |
Customers also viewed
– 20 HP Honda Gas Engine, 4-Ton Capacity
with Booster, Manifold, & High/Low-Pressure Regulators
– Up to 3,000 PSIG
4 Ton - Input Voltage - 208V/60Hz/3ph/25.9Amps - 8.7 kW Heater
4 Ton - Input Voltage - 460V/60Hz/3ph/13.8Amps - 8.7 kW Heater
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Hawker Beechcraft | Hawker 4000 (Horizon) |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
