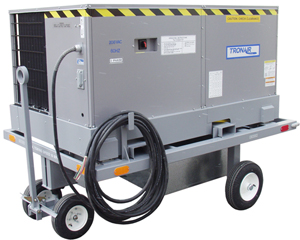

Standard Features (Model: 17-7503-7000 AC Plug-in):
- Cooling capacity 45,000 Btu/hr output
- 1600 cfm maximum air flow
- Refrigerant type R-410A is environmentally safe
- Hermetic compressor belt driven with over current and over temperature protection
- 1,200-2,000 cfm propeller type condenser fan
- 12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
- Dual suction high density filters
- 115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch
- Sturdy welded frame with 16 gauge sheet metal cabinet
- Trailer mounted - Finish: Black
- Finish: Acrylic Enamel Gray
- AC plug-in: 208, 230, 400, 460, 575 volt
- 1 or 3 phase (single phase not available in all voltages)
- 50 ft (15.3 m) long power cord
- Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
- Available Option, 8.7 kW heater, 29,700 Btu/hr maximum thematically controlled (Btu output will vary with input voltage) insert an "A" as the third digit of the model number (e.g. 17A7503-7000)
- Unit is designed to cool and/or heat an aircraft through a window or door opening
| General Information | |
|---|---|
| Part # | 17A7503J7000 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Freight NMFC | 114125 |
| Schedule B | 8415820115 |
| ECCN | EAR99 |
