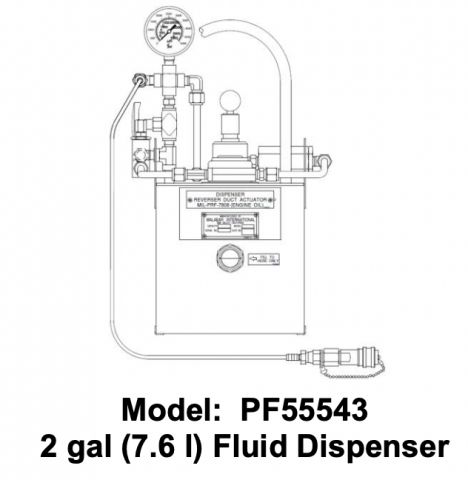

The Malabar PF55543 is a 2-gallon fluid dispenser used to open/close the reverser duct actuator door to perform maintenance and inspection. The hand pump dispenser consists of a reservoir, pump assembly, relief valve, check valve, bypass valve, filter assembly, pressure gauge, fluid level indicator, and a fluid delivery hose with a coupling.
Specifications
- Fluid: MIL-PRF-7808
- Reservoir capacity: 2 gal (7.6 l)
- Operating reservoir capacity: 1.3 gal (4.9 l)
- Operating pressure range: 0-5000 psig (0-345 bar)
- Volume per stroke: 0.14 cubic in (2.3 cc)
- Relief valve setting: 4100/4150 psig (283/286 bar)
- Hose length: 12 ft (3.66 m)
- Net weight: (dry) 32 lbs (14.5 kg)
- Handle force to generate: 3500 psig 25 lbs (11 kg)
| General Information | |
|---|---|
| Part # | PF55543 |
| Manufacturer | Malabar |
| Shipping Information | |
|---|---|
| Shipping Weight | 33 lbs. |
| Shipping Dimensions | 34 x 16.5 x 13.3 in. |
| ECCN | EAR99 |
