Malabar 280 Turbine Oil Duct Reverser Service Unit - 2 Gallon
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

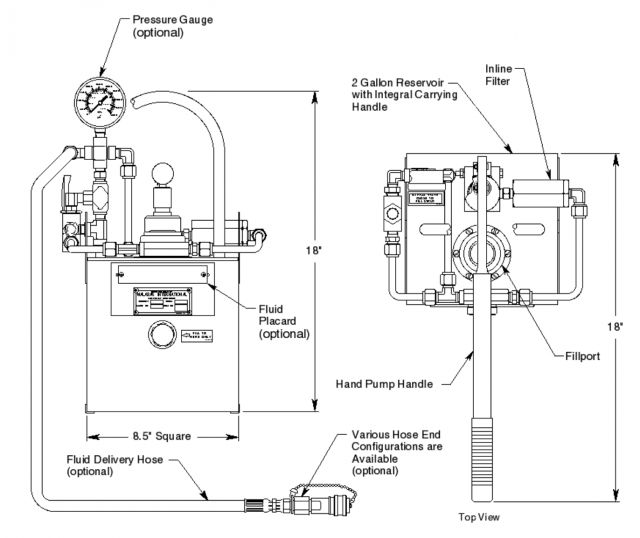

The Malabar 280 turbine oil duct reverser service unit is a 2 gallon fluid dispenser used to open/close the reverser duct actuator door to perform maintenance and inspection. The hand pump dispenser consists of a reservoir, pump assembly, relief valve, check valve, bypass valve, filter assembly, pressure gauge, fluid level indicator and a fluid delivery hose.
Standard Features
- Durable, lightweight and portable 2 gallon capacity stainless steel reservoir with integral carrying handle
- Manual hand pump and inline filter to dispense clean filtered aircraft fluids into aircraft systems
- Large fill port
- 1 year standard warranty
- Fully enclosed shipping container
Specifications
- Fluid Type: Turbine Oil
- Fluid Capacity: 2 Gallon (7.6 liters)
- Unit Displacement per Stroke: 0.14 cu inches (2.3 cc)
- Maximum Pump Outlet Pressure : 4100 psig (288 kg/sq cm)
- Standard Hose Length (single): 144 inches (3658 mm)
- Standard Filter Rating: 2-3 micron nominal
- Net Weight Stainless Steel Tank: 32 lbs (14.5 kg)

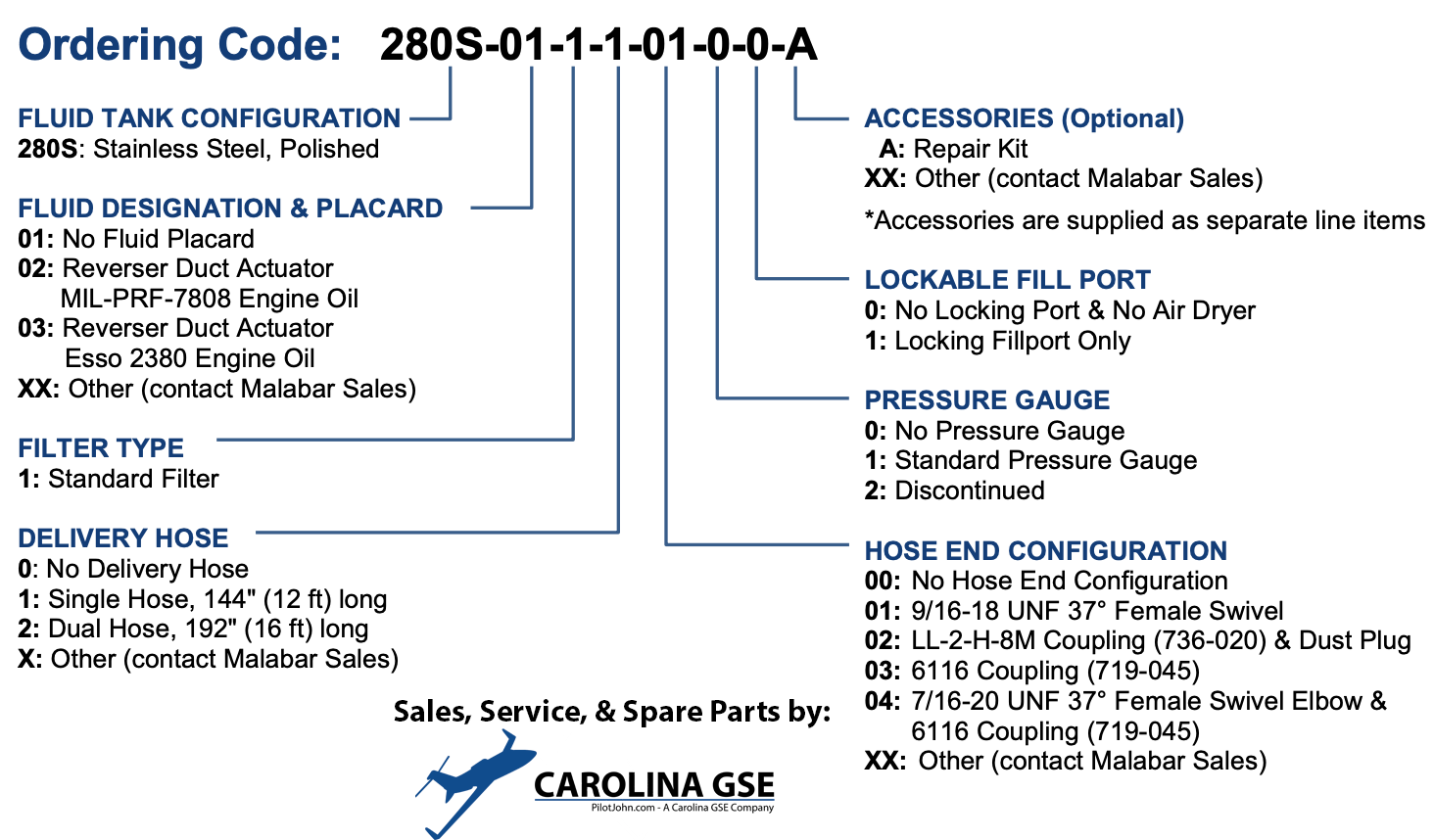

How to Order - Ordering Code
| Alternate Models | |
|---|---|
| PF55543 | 280S-02-1-1-02-1-0 |
| PF55543-1 | 280S-02-1-2-02-1-0 |
| PF55543-2 | 280S-01-1-1-02-1-0 |
| PF55543-3 | 280S-XX-1-2-01-1-0 - XX: Slats and Flaps HYJET IV placard |
| PF55543-4 | 280S-01-1-1-04-1-0 |
| PF55543-5 | 280S-03-1-1-02-1-0 |
| PF55543-6 | 280S-01-1-1-01-1-0 |
| PF55543-7 | 280S-01-1-1-02-0-1 |
| PF55543-8 | 280S-02-1-1-01-1-1 |
| General Information | |
|---|---|
| Part # | 280 |
| Manufacturer | Malabar |
