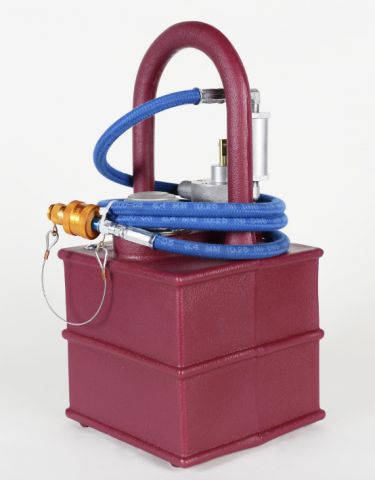

Malabar 260 Skydrol / HyJet Dispenser - 2 Gallon

Malabar 260
Malabar 260Malabar 260
Manufacturer: Malabar
Part Number: 260
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Fluid Tank Configuration
Filter Type
Fluid Totalizing Meter
Delivery Hose
Hose End Configuration
Pressure Gauge
Fill Port / Inlet Air Dryer
Accessories (Optional)
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Fluid Service Unit (Ce) - Skydrol / Hyjet - 2 Gallon Stainless Steel Reservoir
5 Gallon Turbine Oil Dispenser
12 Ton Axle Jack - 6 to 17 inches
1 Quart or 1 Liter Skydrol / Hyjet Hydraulic Container Fluid Gun Dispenser
Wheel and Brake Changer - 34 to 56 inches OD

The Malabar 260 is a 2 gallon fluid dispenser used to service various commercial aircraft hydraulic systems with skydrol or hyjet hydraulic fluids . The hand pump dispenser consists of a reservoir, pump assembly, filter assembly and a fluid delivery hose.

Standard Features

  • Durable, lightweight and portable 2 gallon capacity reservoir with integral carrying handle made from specially formulated "HS" cross-linked polyethylene material that is impervious to petroleum based fluids, hydraulic fluids, UV, solvents and cleaning solutions. "HS" units maintain a very high impact strength even at sub-zero temperatures and are available in several colorfast colors for easy identification of proper fluid type.
  • Manual hand pump and inline filter to dispense clean filtered aircraft fluids into aircraft systems
  • Large fill port
  • 1 year standard warranty
  • Fully enclosed shipping container

Specifications

  • Fluid Type: Skydrol or HyJet
  • Fluid Capacity: 2 Gallon (7.6 liters)
  • Unit Displacement per Stroke: 2.5 cu. inches (41 cc)
  • Maximum Pump Outlet Pressure: 100 psig (7 kg/sq cm)
  • Standard Hose Length: 84 inches (2134 mm)
  • Standard Filter Rating: 2-3 micron nominal
  • Net Weight "HS" Tank: 12 lbs (5.4 kg)
  • Net Weight Stainless Steel Tank: 18 lbs (8.2kg)

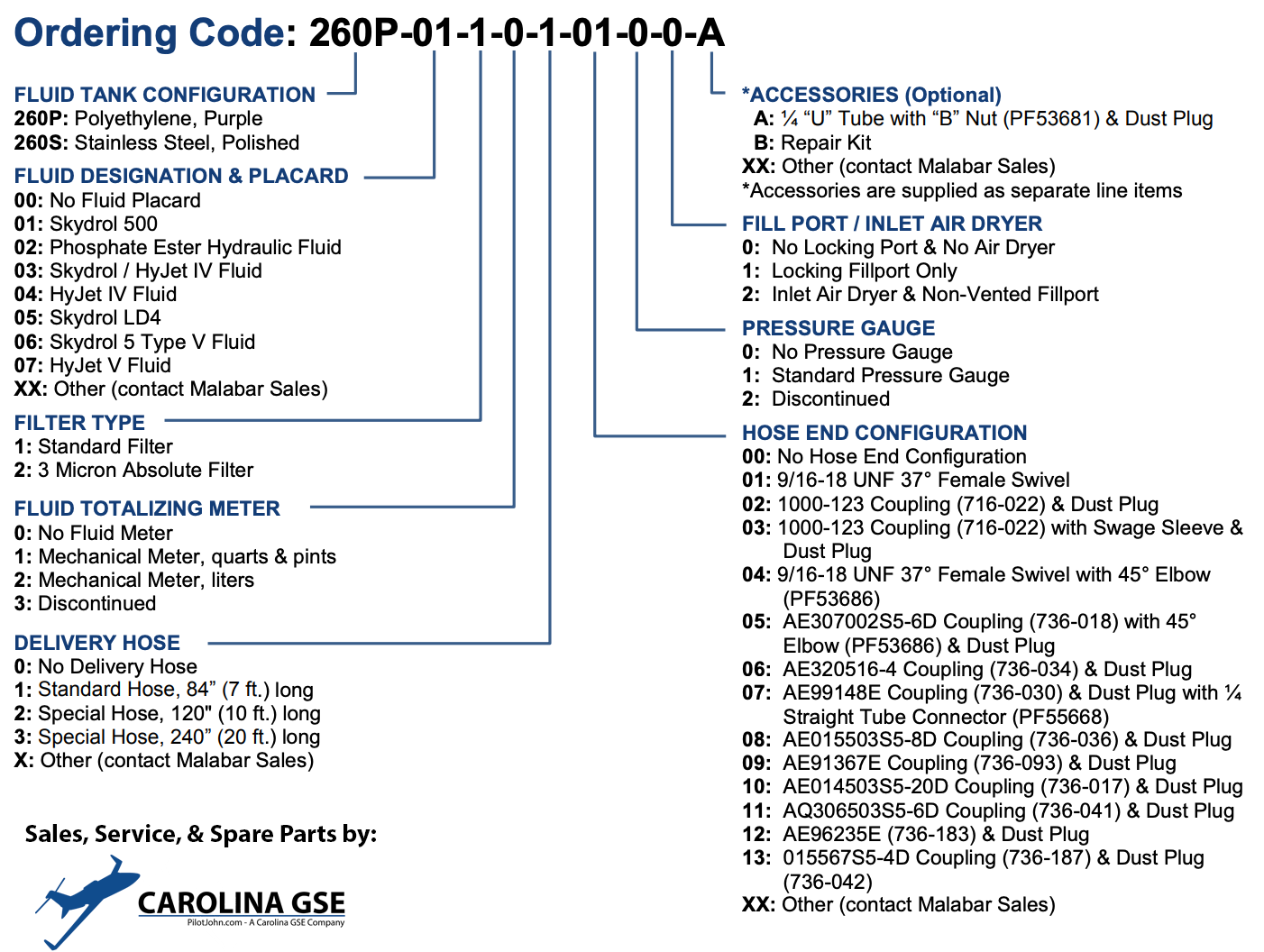

How to Order With Ordering Codes

Alternate Models
PF54115-10P260P-01-1-0-1-08-0-0
PF54115-12P260P-01-1-0-1-11-0-0
PF54115-13AP260P-01-2-0-1-03-0-0
PF54115-13P260P-01-1-0-1-03-0-0
PF54115-14PNo Longer Available
PF54115-15P260P-04-1-0-1-05-0-0
PF54115-15PWSNo Longer Available
PF54115-17PWSNo Longer Available
PF54115-18AP260P-01-2-0-1-07-0-0
PF54115-19P260P-04-1-0-1-01-0-2
PF54115-1P260P-01-1-0-1-04-0-0
PF54115-1PWS260P-01-3-0-1-04-0-0
PF54115-20P260P-01-1-0-1-06-1-0
PF54115-22P260P-01-1-0-0-00-0-0
PF54115-23P260P-05-2-0-1-07-0-0
PF54115-23PWS260P-05-X-0-1-07-0-0
PF54115-24P260P-01-1-0-1-08-0-0
PF54115-25P260P-04-1-0-1-09-0-0
PF54115-26P260P-04-1-0-1-01-0-0
PF54115-27P260P-03-2-1-1-06-0-2-A
PF54115-28P260P-00-1-0-1-01-0-1 - Basic Unit
PF54115-29P260P-01-2-0-1-01-0-0
PF54115-2PNo Longer Available
PF54115-30P260P-04-1-0-1-08-0-0
PF54115-31P260P-05-1-0-2-04-0-0
PF54115-32P260P-04-1-0-1-01-0-1
PF54115-33260S-03-1-1-2-01-0-0
PF54115-34260S-03-1-1-2-04-1-0
PF54115-36P260P-04-1-0-2-01-0-0
PF54115-37P260P-03-1-1-1-01-0-1
PF54115-38P260P-04-1-0-1-03-0-0
PF54115-39P260P-03-2-1-1-04-1-2
PF54115-3P260P-01-1-0-1-05-0-0-A
PF54115-42260S-05-2-0-2-04-1-1
PF54115-4P260P-01-1-0-2-06-0-0
PF54115-50P260P-02-2-2-1-06-0-1
PF54115-51P260P-02-2-2-1-XX-0-1 - XX: 9/16-18 UNF 37 degree SWIVEL w/ DUST PLUG
PF54115-52260S-03-2-0-3-01-0-2
PF54115-53260S-01-1-0-2-01-0-0
PF54115-54P260T-07-1-0-1-05-1-1 - Translucent Tank
PF54115-55P260P-03-1-1-2-01-0-0
PF54115-56P260P-03-1-0-1-01-1-1
PF54115-57P260P-05-1-1-1-07-0-0
PF54115-58260S-05-1-0-2-01-0-0
PF54115-59P260-07-1-1-1-02-0-0
PF54115-5P260P-01-1-0-1-06-0-0
PF54115-5PWSNo Longer Available See PF54115-5P
PF54115-61PWS260P-05-X-0-1-XX-1-0 - X-Waterstop XX - 04 & 06
PF54115-62P260P-01-1-2-1-01-0-1
PF54115-63P260P-05-1-0-1-08-0-2
PF54115-64P260P-03-2-0-2-07-0-0
PF54115-66P260-03-1-0-1-01-0-0
PF54115-67P260P-05-2-1-1-07-0-0
PF54115-68P260P-05-1-0-1-06-0-0
PF54115-69260S-00-1-0-1-01-0-1
PF54115-6P260P-01-1-0-1-01-0-0
PF54115-6PWSNo Longer Available See PF54115-6P
PF54115-70260S-07-1-1-1-01-1-1
PF54115-71P260T-07-1-0-1-01-0-0
PF54115-7P 260P-01-1-0-1-05-0-0
PF54115-8AP260P-01-2-0-1-07-0-0
PF54115-8APWS260P-01-X-0-1-07-0-0 - X=Waterstop filter
PF54115-8P260P-01-1-0-1-07-0-0
PF54115-8PWS260P-01-X-0-1-07-0-0 - X=Waterstop filter
PF54115-9P260P-01-1-0-1-10-0-0
PF54115-AAP260P-02-1-0-1-03-0-0
PF54115-COPNo Longer Available
PF54115P260P-01-1-0-1-02-0-0
PF54115PWS260P-01-3-0-1-02-0-0
