Malabar 360 Skydrol / Hyjet Service Unit - 5 Gallon

Malabar 360
Manufacturer: Malabar
Part Number: 360
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Fluid Tank Configuration
Accessories (Optional)
Fluid Designation & Placard
Filter Type
Fluid Totalizing Meter
Delivery Hose
Hose End Configuration
Pressure Gauge
Fill Port / Inlet Air Dryer
Wheels
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
5 Gallon Turbine Oil Dispenser
50Hz/60Hz, 800A Continuous / 1600A Peak Start
1 Quart & 1 Liter Turbine Oil O-C Gun
8,000 lbs DBP - AWD Standard - Available in Gas, Diesel, LPG
1 Quart or 1 Liter Skydrol / Hyjet Hydraulic Container Fluid Gun Dispenser

The Malabar 360 skydrol or hyjet dispenser is a 5 gallon fluid dispenser used to service various commercial aircraft hydraulic systems. The hand pump dispenser consists of a reservoir, pump assembly, filter assembly and a fluid delivery hose.

Standard Features

  • Durable, lightweight and portable 5 gallon capacity reservoir made from specially formulated "HS" cross-linked polyethylene material that is impervious to petroleum based fluids, hydraulic fluids, UV, solvents and cleaning solutions. "HS" units maintain a very high impact strength even at sub-zero temperatures and are available in several colorfast colors for easy identification of proper fluid type
  • Stainless steel handle / axle assembly with wheels
  • Manual hand pump and inline filter to dispense clean filtered aircraft fluids into aircraft systems
  • Large fill port
  • 1 year standard warranty
  • Fully enclosed shipping container

Specifications

  • Fluid Type: Skydrol or HyJet
  • Fluid Capacity: 5 Gallon (18.9 liters)
  • Unit Displacement per Stroke: 3.0 cu inches (49 cc)
  • Maximum Pump Outlet Pressure: 100 psig (7 kg/sq cm)
  • Standard Hose Length: 120 inches (3048 mm)
  • Standard Filter Rating: 2-3 micron nominal
  • Net Weight "HS" Tank: 35 lb. (15.9 kg)
  • Net Weight Stainless Steel Tank: 47 lbs (21.3 kg)

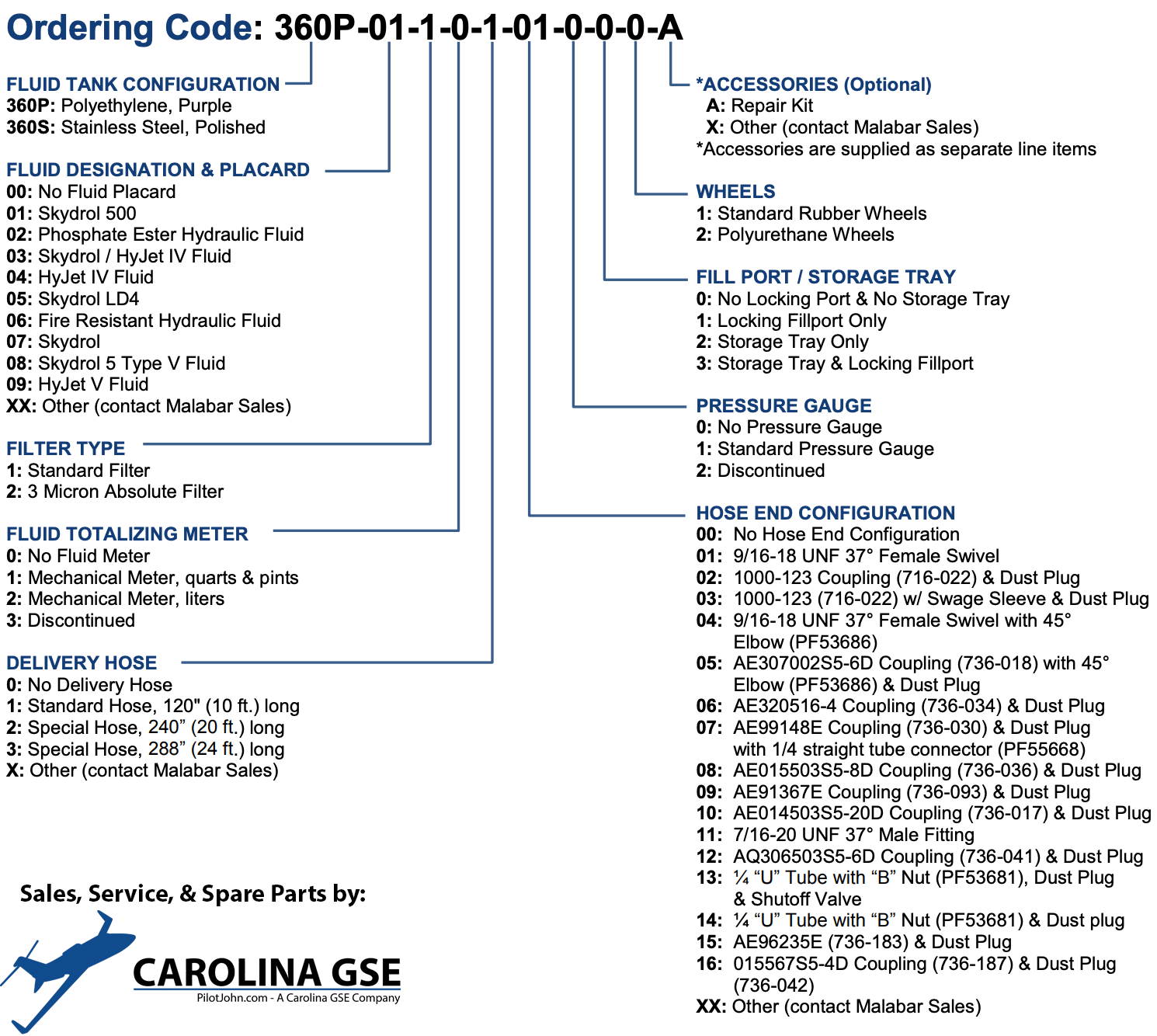

How to Order - Ordering Codes

Alternate Models
PF53467-10P360P-05-1-0-1-01-0-0-1
PF53467-12P360P-07-1-0-3-01-0-0-1
PF53467-14P360P-01-1-0-1-01-0-0-2
PF53467-15P360P-04-1-0-1-01-0-0-1
PF53467-16P360P-05-1-0-1-07-0-0-1
PF53467-16PWS360P-05-XX-0-1-07-0-0-1 - XX: Waterstop filter
PF53467-17P360P-04-1-0-1-01-0-0-1
PF53467-19P360P-XX-1-0-1-06-0-0-1 - XX: HYJET IV placard
PF53467-1AA360T-XX-1-0-1-03-0-0-1 - Translucent Tank. XX: "HYJET V - 787 ONLY"
PF53467-1P360P-01-1-0-1-01-0-0-1 - Basic Unit
PF53467-1PWS360P-01-3-0-1-01-0-0-1
PF53467-20360S-04-1-0-1-06-0-0-1
PF53467-20P360P-04-1-0-1-06-0-0-1
PF53467-21P360P-03-1-1-1-01-1-1-1
PF53467-22PPF53467-22P
PF53467-23P360P-03-1-0-1-01-0-3-1
PF53467-24P360P-03-1-1-2-01-1-3-2
PF53467-25P360P-05-1-1-1-01-1-0-1
PF53467-27P360P-02-2-2-1-06-0-1-1
PF53467-28P360P-02-2-2-1-XX-0-1-1 - XX: 9/16-18 UNF 37 degree F SWIVEL w/ DUST PLUG
PF53467-29P360P-04-1-1-1-06-0-0-2
PF53467-2P360P-01-1-0-1-05-0-0-1
PF53467-2PWSNo Longer Available
PF53467-32360S-00-2-2-1-01-0-3-1
PF53467-33P360P-09-1-0-1-15-0-0-1
PF53467-34P360P-06-1-0-1-01-0-0-2
PF53467-35360S-07-1-0-1-06-0-0-1
PF53467-36P360P-01-1-2-1-01-0-1-1
PF53467-37P360P-06-1-0-1-05-0-0-2
PF53467-38P360P-03-2-0-2-07-0-0-2
PF53467-38PWS360P-05-X-0-1-XX-1-0-1 - X-Waterstop XX - 04 & 06
PF53467-3P360P-01-1-0-1-08-0-0-1
PF53467-3PWSNo Longer Available
PF53467-3USAP360P-01-1-0-1-08-0-0-1 - Dust Plug mounts on handle weldment
PF53467-4P360P-01-1-0-1-06-0-0-1
PF53467-4PWSNo Longer Available
PF53467-5P360P-01-1-0-1-11-0-0-1
PF53467-6P360P-01-1-0-1-07-0-0-1
PF53467-6PWS360P-01-X-0-1-07-0-0-2 - X-Waterstop filter
PF53467-7P360P-01-1-0-1-12-0-0-1
PF53467-8P360P-01-1-0-1-05-0-0-1
PF53467-9PNo Longer Available
PF53467-AAP360P-02-1-0-1-03-0-0-1
PF53467-COPNo Code Provided
PF53467P360P-01-1-0-1-02-0-0-1
PF53467PWS
PF53684-1360S-04-1-0-1-13-0-0-1
PF53684P360P-01-1-1-1-13-0-1-1
PF53684PWSNo Longer Available
PF53685-1P360P-01-1-0-1-14-0-0-1
PF53685-2PNo Longer Available
PF53685-3P360P-01-1-0-1-10-0-0-1
PF53685-5P360P-04-1-0-1-05-0-0-1
PF53685-6P360P-01-1-0-1-14-0-0-1
PF53685P360P-01-1-0-1-05-0-0-1
PF53685UAL1A360P-07-3-0-1-05-0-0-1
PF53691PNo Longer Available
