Unitron UFC-45M 45 kVA Ground Power Unit (GPU)

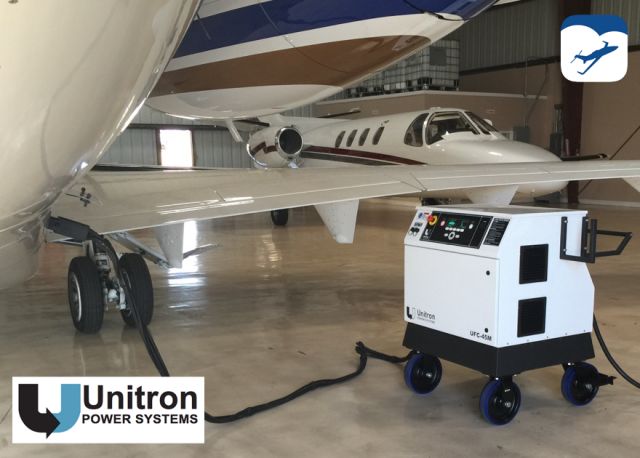

Unitron UFC-45M
Unitron UFC-45MUnitron UFC-45MUnitron UFC-45M
Manufacturer: Unitron
Part Number: UFC-45M
Condition: New
Optional Financing Available: $579/month - View Details
Warranty: 3 Year Limited Warranty - View Details
Lead Time: In-Stock
On Hand: 1 (subject to prior sale)
Rating: 5.0 Based on 1 customer review

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
What is your 3 phase input voltage?
What size of input cable do you need?
Do you want 28.5V DC added on to the unit?
Do you want your unit with a custom color instead of white?
Do you want to upload a custom logo on the touch screen panel?
Do you want a 120V service outlet on unit?
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Combo 45 kVA / 28V DC - 3 Phase Input Voltage
28V DC - 3 Phase Voltage - 425 amps continuous - 1600/2000 amps max
Unitron GPU Distributor

Your Power GSE Team

45 kVA GPU

45 kVA with Optional 28V DC

45 kVA GPU

Unrivaled Support and Teamwork Through Our Partnership with Unitron

45 kVA GPU

Event Logs Stored for Remote Diagnostic and Testing

45 kVA GPU

Safety is Our Top Priority

45 kVA GPU

Design the Unit for Your Flight Department

45 kVA GPU

The Unitron UFC-45M PwrKart is 45 kVA ground power unit (GPU) for powering corporate to airline aircraft in the hangar or ramp environment. This unit operates on 3 phase input voltage from the hangar or your local facility. (Please advise your hangar's voltage at the time of requesting a quote to quote the correct model.)

Specifications

  • IP55
  • Certified to UL 1012
  • 3 Phase, 380-480VAC Input (Other 3 Phase Input Voltages Available On Request)
  • Indoor/Outdoor (Hangar/Ramp) Use
  • <= 5% Input Current Distortion
  • Automatic Input Line Monitoring
  • Advanced Integrated Display (AID) Console
  • 8000 Event Log / Diagnostics
  • TCP/IP/Ethernet interface (Modbus)
  • Internal Communication Ports - USB, RJ45 (ETHERNET), RS485 (Modbus), & RS232
  • External Communication Ports - RJ45 (ETHERNET) & USB
  • 15% Automatic Line Drop Compensation
  • Emergency Power "OFF" Switch
  • 18-Inch Hazard Area Clearance
  • I/O Voltage, Current, & Frequency Monitoring
  • Elapsed Time Meter
  • Sleep Mode
  • Front Panel Summary Fault Indicators
  • Input & Output Cable Racks
  • Input High Voltage Transient Protection
  • Multi Language (Romanization) Display - English, French, German, Italian, Portuguese, Russian and Spanish, Others - Request at time of quote

Input

  • Input Current Distortion: <= 5%, typically 3%
  • Input Voltage: 380 to 480 V, +10%, -15%, 3 or 4 wire plus ground (Alternate voltages - request at time of quote)
  • Frequency: 50 - 60 Hz +/- 10%
  • Phase Rotation: Any
  • Protection: Over/undervoltage, loss of phase, overcurrent, short circuit. Voltage transient protection IAW IEEE C62.41.1, Location Cat. B/C
  • Inrush Current: No greater than 100% of full load current

Environmental

  • Acoustical Noise: < 65 dBA maximum at 5 feet (1.5m)
  • Temperature Range: -40 degree C to +55 degree C
  • Relative Humidity: 10 - 95%
  • Ingress of Water: Type 3RX, IP55

Energy Factors

  • Efficiency: 93% typical at full load, 90% typical at half load; varies depending on configuration
  • Energy Efficiency Ratio: 20.0 typical

Output

  • Overload: 100% continuous, 110% for 60 min, 125% for 10 min, 150% for 2 min, 200% for 20 sec (45kVA)
  • Voltage: 115/200 volts, 3, 4 wire, grounded neutral
  • Crest Factor: 1.414 +/- 3%
  • Voltage Regulation: +/- 1.0% under all conditions of line, balanced loads and temperature
  • Voltage Transients: IAW MIL-STD-704F
  • Frequency Regulation: 400 Hz +/- 0.01% under all conditions of line, load and temperature
  • Frequency Transients: None
  • Phase Angle Regulation: +/- 1 degree for balanced loads; +/- 2 degree for unbalanced loads
  • Harmonic Distortion: 2.0% maximum
  • Protection: Overload, short circuit, over/undervoltage and safety disconnect
  • Automatic Line Drop Compensation (ALDC): 15%

Cabinet Info

  • Weight: 637 lbs. (289 kg)
  • Length: 40 inches (1015 mm)
  • Width: 33 inches (838 mm)
  • Height: 45 inches (1138 mm)
  • Enclosure: NEMA 3RX Corrosion Resistant
  • Cooling: Forced Convection

Standards

  • EN 61000-6-2*: Electromagnetic compatibility, Immunity standard for industrial environments
  • EN 61000-6-4*: Electromagnetic compatibility, Emission standard for industrial environments
  • 2006/95/EC*:Low Voltage Directive
  • ISO 1540: Characteristics of aircraft electrical system
  • ISO 6858: Aircraft ground support electrical supplies
  • SAE ARP 5015: Ground equipment 400Hz ground power performance requirement
  • MIL-STD-704F: Aircraft electric power characteristics
  • MIL-STD-1472: Human Engineering Design Criteria
  • DFS-400: Specification for 400Hz aircraft power supply
*Defined Basis of CE Mark Certification

Available Options

**If any options below are required, please request at time of quote.
  • Alternate input voltage range 3 Phase, 208-240 or 600VAC input
  • 50 or 100 Foot Input Power Cable (Pigtail, Specify Required Length)
  • AC Output Power Cable with Plug (available in 30 or 60 foot standard lengths), specify required length
  • Output Universal Aircraft Safety Interlock Circuit Disconnect (Single or Dual)
  • Output Safety Disconnect
  • Front Panel AC Voltage Adjust (+/- 15%)
  • 28VDC or 270VDC Output
  • Up to 675% Overload for 6 sec., Dependent on Rating
  • No Break Power Transfer (NBPT) Compatible
  • Indoor Touch Screen Panel
  • Alternate Mounting Configurations Available
  • Pneumatic Ramp Tires
  • Custom Paint & Decals (Standard Color - White)
  • CSA Certified
  • CE Mark Certified
  • Ground Fault Monitor
  • Lockable Front Door
  • Neutral Interrupt Protection
  • Universal Safety Interlock
Alternate Models
45SX200Comparable Model Number
45SX240Comparable Model Number
GFC-25MAlternate Model Number
GFC-37MAlternate Model Number
GFC-45MAlternate Model Number
UFC-45M-DualDual Output (380-480V 3 Phase Input Voltage)
UFC-45M-T3Low 3 Phase Voltage Transformer Installed (208V to 220V)
UFC-45M-T3-DualDual AC Output - Low 3 Phase Voltage Transformer Installed (208V to 220V)
Compatible Aircraft*
Bombardier (Business)Challenger 600, Challenger 601, Challenger 604, Challenger 850, Challenger 870, Challenger 890, Global 5000, Global Express
Bombardier (Regional)CRJ100, CRJ1000, CRJ200, CRJ700, CRJ900, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
Fokker28, 50, 70
GulfstreamG350, G450, G500, G550, G650, II, III
Hawker BeechcraftHawker 4000 (Horizon)
Saab2000
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight850 lbs.
Pkg. 1 Dimensions56 in. x 48 in. x 51 in.
Pkg. 1 TypeCrate
Freight Class85
Freight NMFC62900
Schedule B8504.21.0020
Parts

We sell parts for the UFC-45M and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Input / Output Cables
Renting

We provide short-term and long-term rentals for the UFC-45M. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used UFC-45M (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.

CUSTOMER REVIEWS
5/5
by
John was fantastic to work with. All RFQ's were answered promptly and professionally. To my knowledge, the unit is working well. We are using it to power special equipment installed on the aircraft. Overall, great experience.
