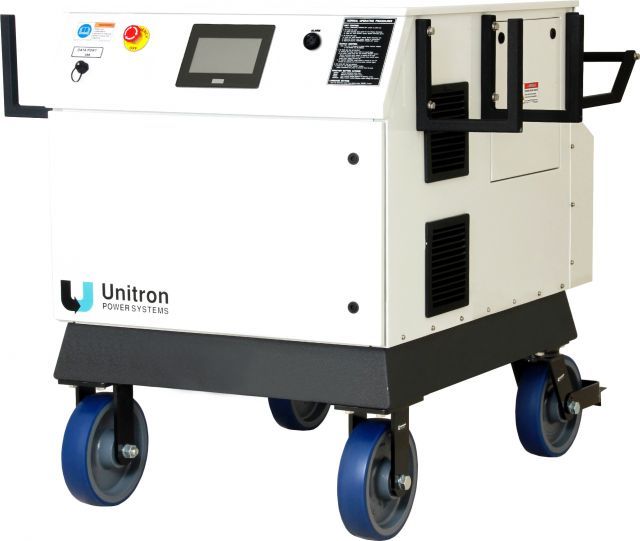

The Unitron UFC-90M-DUAL PwrKart is a 90 kVA ground power unit (GPU) for powering corporate to airline aircraft in the hangar or ramp environment. This unit operates on 3 3-phase input voltage from the hangar or your local facility.
Dual Output
This unit is a DUAL output unit that can supply AC 400 HZ ground power to two aircraft at the same time (only up to 90 kVA total). The recommended standard configurations are one 100' input cable and two 30' AC output cables to the aircraft.
Specifications
- IP55
- Certified to UL 1012
- 3 Phase, 380-480VAC Input
- Indoor/Outdoor (Hangar/Ramp) Use
- <= 5% Input Current Distortion
- Automatic Input Line Monitoring
- Advanced Integrated Display (AID) Console
- 8000 Event Log / Diagnostics
- TCP/IP/Ethernet interface (Modbus)
- Internal Communication Ports - USB, RJ45 (ETHERNET), RS485 (Modbus), & RS232
- External Communication Ports - RJ45 (ETHERNET) & USB
- 15% Automatic Line Drop Compensation
- Emergency Power "OFF" Switch
- 18-Inch Hazard Area Clearance
- I/O Voltage, Current, & Frequency Monitoring
- Elapsed Time Meter
- Sleep Mode
- Front Panel Summary Fault Indicators
- Input & Output Cable Racks
- Input High Voltage Transient Protection
- Multi-Language (Romanization) Display: English, French, German, Italian, Portuguese, Russian and Spanish, Others – Request at time of quote
Input
- Input Current Distortion: <= 5%, typically 3%
- Input Voltage: 380 to 480 V, +10%, -15%, 3 or 4 wire plus ground (Alternate voltages - request at time of quote)
- Frequency: 50 - 60 Hz +/- 10%
- Phase Rotation: Any
- Protection: Overvoltage/undervoltage, loss of phase, overcurrent, short circuit. Voltage transient protection IAW IEEE C62.41.1, Location Cat. B/C
- Inrush Current: No greater than 100% of full load current
Environmental
- Acoustical Noise: < 65 dBA maximum at 5 feet (1.5m)
- Temperature Range: -40°C to 55°C
- Relative Humidity: 10 - 95%
- Ingress of Water: Type 3RX, IP55
Energy Factors
- Efficiency: 94% typical at full load, 92% typical at half load; varies depending on configuration
- Energy Efficiency Ratio: 20.0 typical
Output (Two AC Outputs - Can only use up to 90 kVA)
- Overload: 100% continuous, 110% for 60 min, 125% for 10 min, 150% for 2 min, 200% for 20 sec
- Voltage: 115/200 volts, 3, 4 wire, grounded neutral
- Crest Factor: 1.414 +/- 3%
- Voltage Regulation: +/- 1.0% under all conditions of line, balanced loads, and temperature
- Voltage Transients: IAW MIL-STD-704F
- Frequency Regulation: 400 Hz +/- 0.01% under all conditions of line, load, and temperature
- Frequency Transients: None
- Phase Angle Regulation: +/- 1 degree for balanced loads; +/- 2 degree for unbalanced loads
- Harmonic Distortion: 2.0% maximum
- Protection: Overload, short circuit, overvoltage/undervoltage, and safety disconnect
- Automatic Line Drop Compensation (ALDC): 15%
Cabinet Info
- Weight: 1,017 lbs. (461 kg)
- Length: 53" (1,345 mm)
- Width: 33" (838 mm)
- Height: 45" (1,138 mm)
- Enclosure: NEMA 3RX Corrosion-Resistant
- Cooling: Forced Convection
Standards
- EN 61000-6-2*: Electromagnetic compatibility, Immunity standard for industrial environments
- EN 61000-6-4*: Electromagnetic compatibility, Emission standard for industrial environments
- 2006/95/EC*: Low-Voltage Directive
- ISO 1540: Characteristics of aircraft electrical system
- ISO 6858: Aircraft ground support electrical supplies
- SAE ARP 5015: Ground equipment 400Hz ground power performance requirement
- MIL-STD-704F: Aircraft electric power characteristics
- MIL-STD-1472: Human Engineering Design Criteria
- DFS-400: Specification for 400Hz aircraft power supply
*Defined Basis of CE Mark Certification
Available Options
**If any options below are required, please request at the time of quote.
- 50 or 100 Foot Input Power Cable (Pigtail, Specify Required Length)
- AC Output Power Cable with Plug (available in 30 or 60-foot standard lengths), specify required length
- Output Universal Aircraft Safety Interlock Circuit Disconnect (Single or Dual)
- Output Safety Disconnect
- Front Panel AC Voltage Adjust (+/- 15%)
- 28VDC or 270VDC Output
- Indoor Touch Screen Panel
- Alternate Mounting Configurations Available
- Pneumatic Ramp Tires
- Custom Paint & Decals (Standard Color - White)
- Ground Fault Monitor
- CSA Certified
- CE Mark Certified
- Ground Fault Monitor
- Lockable Front Door
- Neutral Interrupt Protection
- Universal Safety Interlock
| General Information | |
|---|---|
| Part # | UFC-90M-Dual |
| Manufacturer | Unitron |
| Warranty | |
|---|---|
| Details | 3 Year Limited Warranty - View Details |
| Shipping Information | |
|---|---|
| Freight NMFC | 61700 |
| ECCN | EAR99 |
