Unitron UFC-45M – PwrKart 45 kVA – T3 Ground Power Unit (GPU) - 100' input and 30' output cable

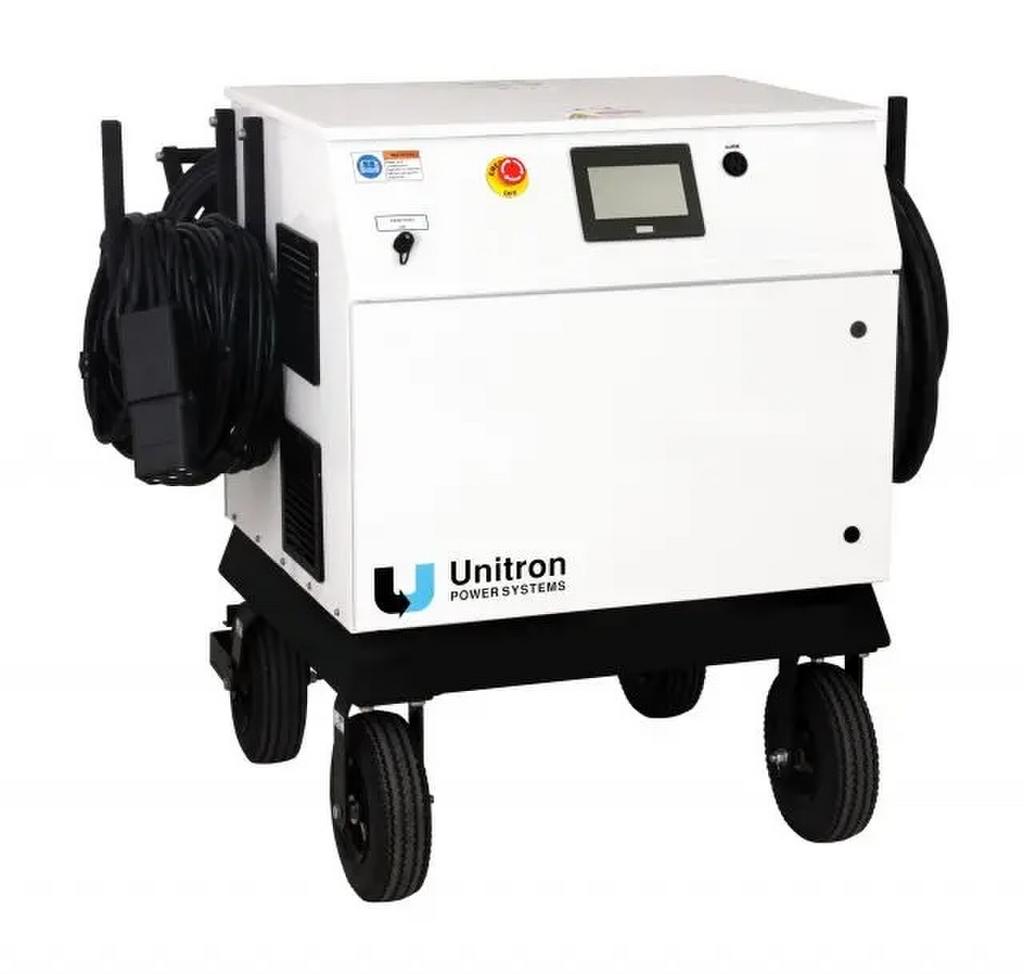

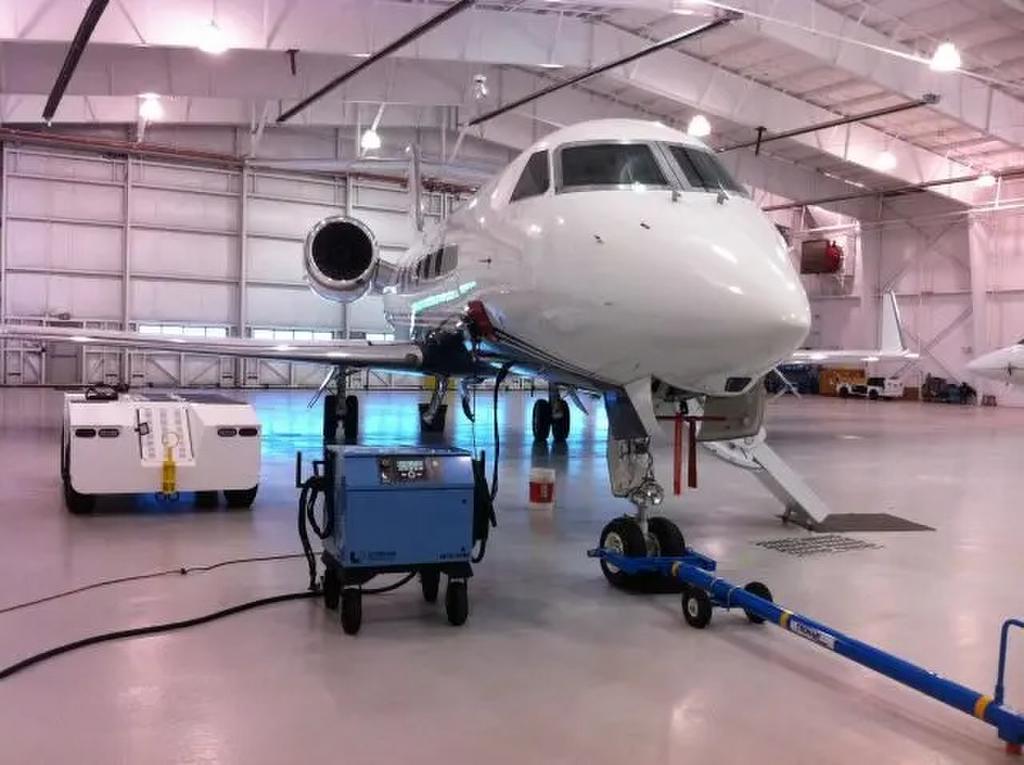

The Unitron UFC-45M-T3-PJI100 PwrKart is a 45 kVA ground power unit (GPU) with T3 Transformer (Low Voltage) for powering corporate to airline aircraft in the hangar or ramp environment. This unit operates on a 3-phase input voltage from the hangar or your local facility.

NOTE: Please advise your hangar's voltage at the time of requesting a quote so that we can quote the correct model.

SPECIFICATIONS

• IP55 Rated for Dust and Water Resistance
• Certified to UL 1012
• 3-Phase, 208V to 240V AC Input  (other 3-phase input voltages available upon request)

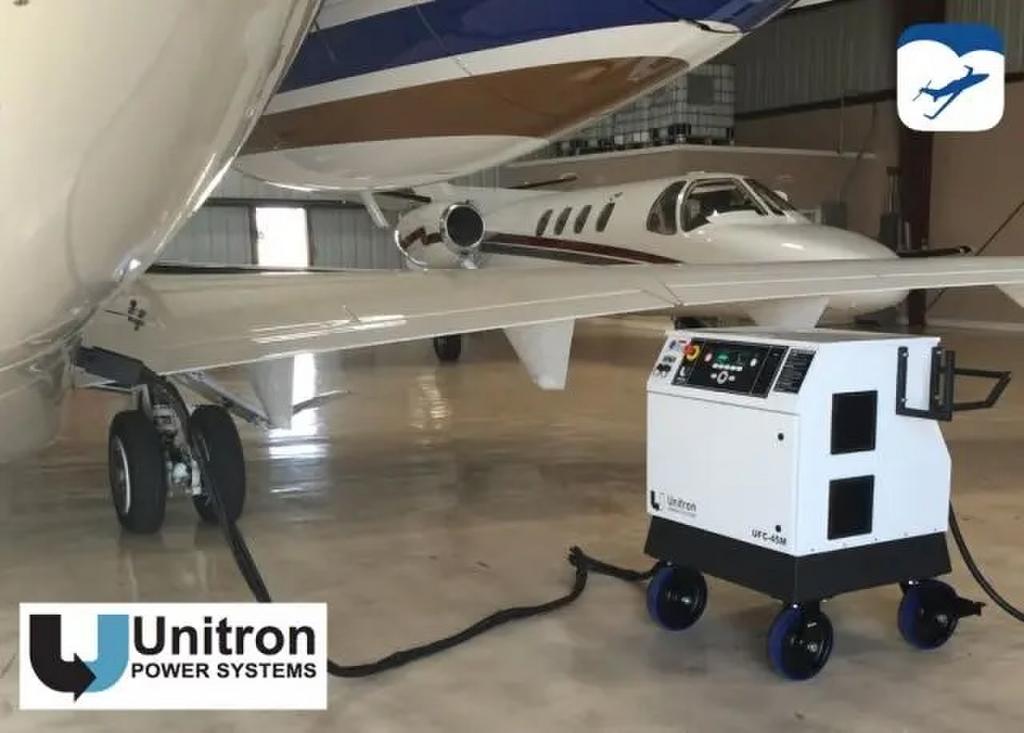

• Indoor/Outdoor Use – Hangar/Ramp
• <= 5% Input Current Distortion
• Automatic Input Line Monitoring
• Advanced Integrated Display (AID) Console
• 8,000 Event Log/Diagnostics
• TCP/IP/Ethernet interface (Modbus)
• Internal Communication Ports: USB, RJ45 (Ethernet), RS485 (Modbus), & RS232
• External Communication Ports: RJ45 (Ethernet) & USB
• 15% Automatic Line-Drop Compensation
• Emergency Power "OFF" Switch
• 18" Hazard Area Clearance
• I/O Voltage, Current, & Frequency Monitoring
• Elapsed Time Meter
• Sleep Mode
• Front Panel Summary Fault Indicators
• Input & Output Cable Racks
• Input High Voltage Transient Protection
• Multi-Language (Romanization) Display: English, French, German, Italian, Portuguese, Russian, Spanish, and Others (Request at the time of quote)

INPUT

• Input Current Distortion: <= 5%, typically 3%
• Input Voltage: 380V to 480 V, +10%, -15%, 3- or 4-Wire Plus Ground (Alternate voltages – request at time of quote)
• Frequency: 50 to 60 Hz +/- 10%
• Phase Rotation: Any
• Protection: Overvoltage/Undervoltage, Loss of Phase, Overcurrent, Short Circuit. Voltage-Transient Protection IAW IEEE C62.41.1, Location Cat. B/C
• Inrush Current: No Greater Than 100% of Full Load Current

ENVIRONMENTAL

• Acoustical Noise: < 65 dBA Maximum at 5 ft. (1.5m)
• Temperature Range: -40°C to 55°C
• Relative Humidity: 10% to 95%
• Ingress of Water: Type 3RX, IP55

ENERGY FACTORS

• Efficiency: 93% Typical at Full Load, 90% Typical at Half Load; Varies Depending on Configuration
• Energy Efficiency Ratio: 20.0 Typical

OUTPUT

• Overload: 100% Continuous, 110% for 60 Min., 125% for 10 Min., 150% for 2 Min., 200% for 20 Sec. (45kVA)
• Voltage: 115/200 Volts, 3-Wire, 4-Wire, Grounded Neutral
• Crest Factor: 1.414 +/- 3%
• Voltage Regulation: +/- 1.0% Under All Conditions of Line, Balanced Loads, and Temperature
• Voltage Transients: IAW MIL-STD-704F
• Frequency Regulation: 400 Hz +/- 0.01% Under All Conditions of Line, Load, and Temperature
• Frequency Transients: None
• Phase Angle Regulation: +/- 1° for Balanced Loads; +/- 2° for Unbalanced Loads
• Harmonic Distortion: 2.0% Maximum
• Protection: Overload, Short Circuit, Overvoltage/Undervoltage, and Safety Disconnect
• Automatic Line-Drop Compensation (ALDC): 15%

CABINET INFO

• Weight: 637 lbs. (289 kg)
• Length: 40" (1,015 mm)
• Width: 33" (838 mm)
• Height: 45" (1,138 mm)
• Enclosure: NEMA 3RX Corrosion-Resistant
• Cooling: Forced Convection

STANDARDS

• EN 61000-6-2*: Electromagnetic Compatibility, Immunity Standard for Industrial Environments
• EN 61000-6-4*: Electromagnetic Compatibility, Emission Standard for Industrial Environments
• 2006/95/EC*: Low-Voltage Directive
• ISO 1540: Characteristics of Aircraft Electrical System
• ISO 6858: Aircraft Ground Support Electrical Supplies
• SAE ARP 5015: Ground Equipment 400 Hz Ground Power Performance Requirement
• MIL-STD-704F: Aircraft Electric Power Characteristics
• MIL-STD-1472: Human Engineering Design Criteria
• DFS-400: Specification for 400 Hz Aircraft Power Supply

*Defined Basis of CE Mark Certification

AVAILABLE OPTIONS

**If any options below are required, please request them at the time of the quote.

• Alternate Input Voltage Range: 3-Phase, 208V to 240V or 600V AC input
• 100' Input Power Cable – Pigtail (specify required length)
• 30' Foot AC Output Power Cable with Plug
• Output Universal Aircraft Safety Interlock Circuit Disconnect (single or dual)
• Output Safety Disconnect
• Front Panel AC Voltage Adjust (+/- 15%)
• 28V DC or 270V DC Output
• Up to 675% Overload for 6 Seconds, Dependent on Rating
• No Break Power Transfer (NBPT) Compatible
• Indoor Touch Screen Panel
• Alternate Mounting Configurations Available
• Pneumatic Ramp Tires
• Custom Paint & Decals – Standard Color: White
• CSA Certified
• CE Mark Certified
• Ground Fault Monitor
• Lockable Front Door
• Neutral Interrupt Protection
• Universal Safety Interlock
