ITWGSE 1400 GPU - 28V DC 600 Amp - Aircraft Ground Power Unit
Item Superseded
This item has been discontinued or is no longer available.
A known replacement is available, but due to the complexity of this supersede you will need to contact us for more information.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

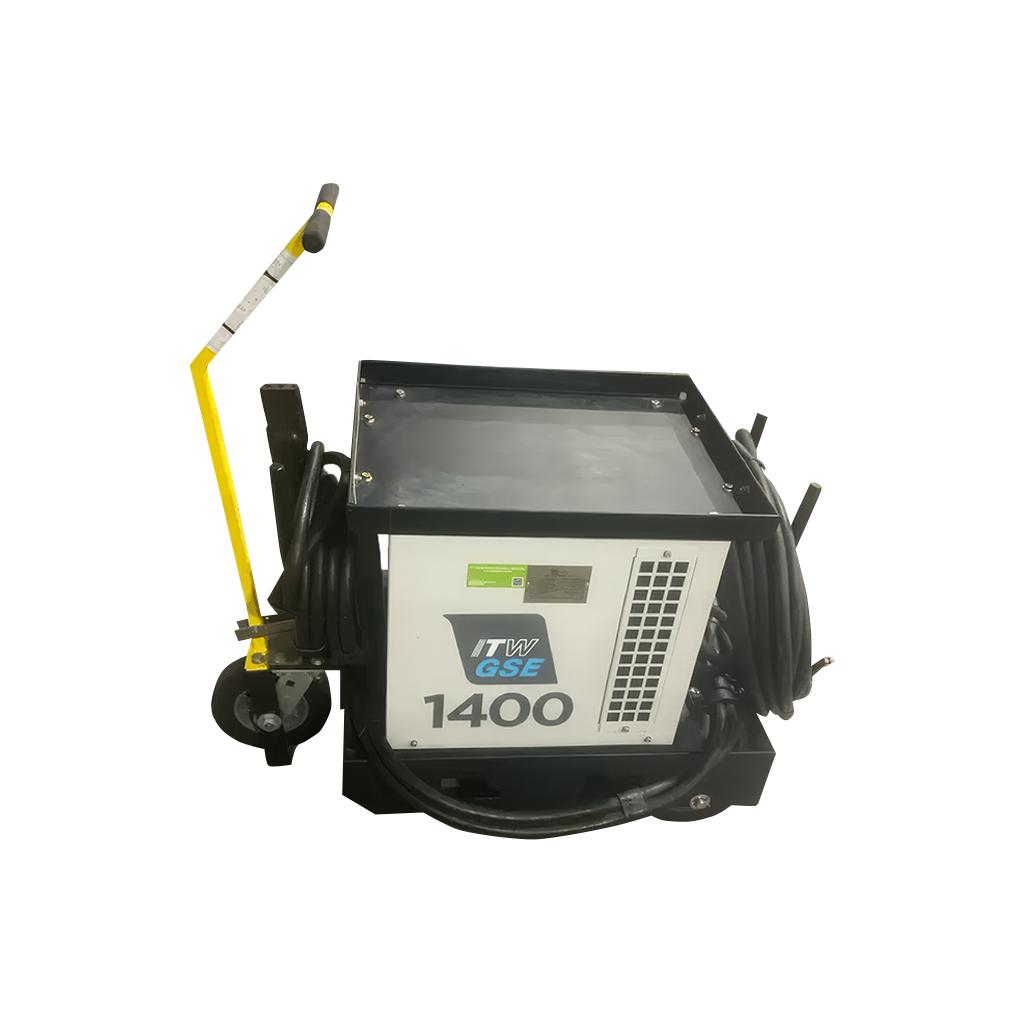

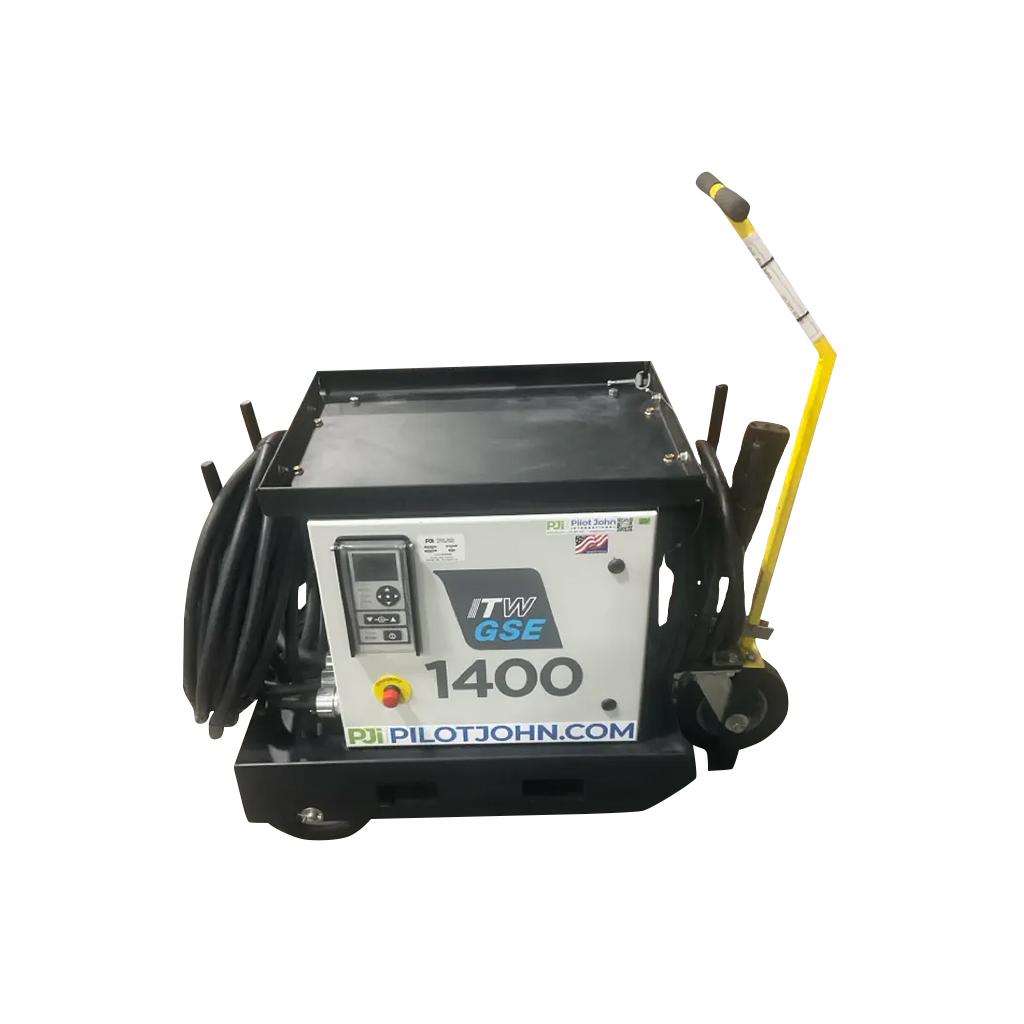

The ITWGSE 1400 is a 28V DC aircraft ground power unit with 600 amps continuous / 2000 amps starting. The unit comes on a standard 3 wheel hangar T-handle cart.
Our GSE team can help with short-term rentals, financing, and repair / service on your ITWGSE 1400 unit. Contact our team to start discussing your options.
Input
- Voltage range: 3 x 400 V -10/+15% 3 x 460 V -10/+20%
- Frequency: 50/60 Hz 5%
- Rectification: 6 pulse
- Line current: 29 A
- Power factor: 0.91
- Inrush current: None, soft start
Output
- Current: 600 A continuously (can be limited to 400 A upon request)
- Engine Start Capability: 28 V @ 2000A
- Voltage: 28 VDC (or as adjusted)
- Ripple: less than 2% at full load
- Voltage regulation: <0.5% from no load to full load
- Voltage compensation: 3 V @ 600 A Manual or voltage feed-back via interlock
Efficiency
- Overall efficiency: 0.87
- Stand by losses: 130W
- No load losses: 330W
Overload Ratings
- 1200 A for 30 seconds
- 1800 A for 10 seconds
- 2100 A for 5 seconds
- 2400 A for 2 seconds
Protection
- Protection class: IP55 (electronic section)
- Over/under voltage at in/output
- Over-temperature
- Internal voltage error
- Short circuit at output
- Trip in case that
- U<20 VDC for more than 4 seconds
- U>32 VDC for more than 4 seconds
- U>40 VDC for more than 150 ms
Additional Specifications
- MTBF (proven): 100,000 hours
- Ventilation system: min. 25,000 hours
- MTTR: max. 20 minutes
- Communication: TCP/IP, USB
Norms and Standards
- ISO 6858 Aircraft ground support electrical supplies – General requirements
- BS 2G 219 General requirements for ground support equipment
- MIL-704F Aircraft electric power characteristics
- EN 1915 - 1 & 2 (Machinery - General safety requirements)
- EN 12312-20 (Machinery - Specific safety requirements)
- EN 60204-1 (Machinery - Electrical safety)
- EN 62040-1-1 LVD - Safety standards
- EN 61558-2-6 LVD - Safety standards
- EN 61000-6-2 EMC - Immunity standard
- EN 61000-6-4 EMC - Emission standards
| General Information | |
|---|---|
| Part # | 1400 |
| Manufacturer | ITW GSE/Hobart |
| Shipping Information | |
|---|---|
| Shipping Weight | 625 lbs. |
| Shipping Dimensions | 49 x 39 x 45 in. |
| Schedule B | 8504409540 |
| ECCN | EAR99 |
