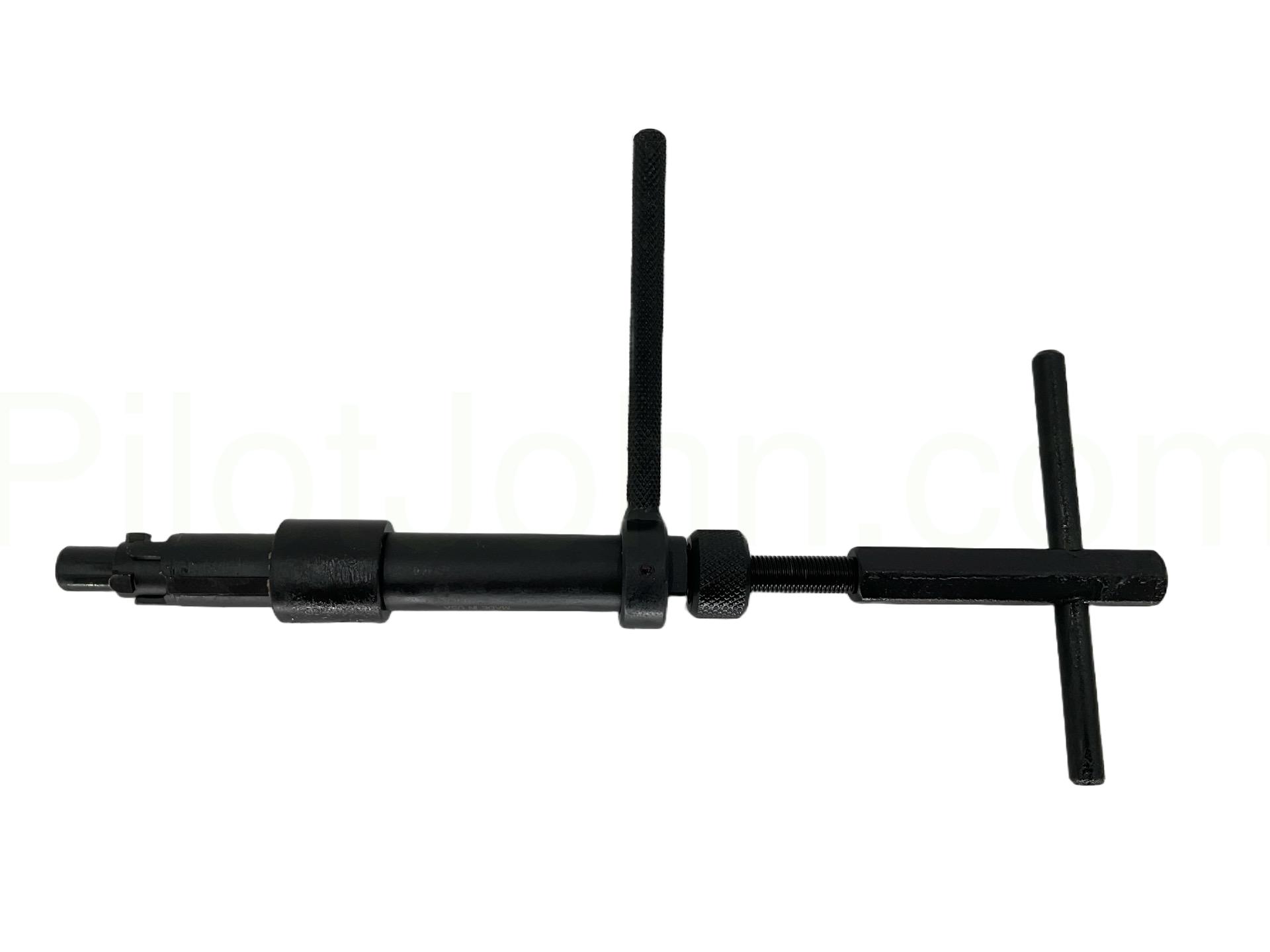

Kell-Strom PWC30403 Turbine Disc Puller

The PWC30403 is intended for use on a wide range of Pratt & Whitney turbine engines, including select models of the PT6A series. Before use, technicians must confirm compatibility by referring to the engine’s maintenance manual. In many hot-section tool kits, this puller is listed for critical disc removal tasks in designated engine models.

By applying controlled axial force, the puller dislodges the turbine disc evenly, reducing stress on mating surfaces and nearby parts. Compared to improvised prying or hammering, this method minimizes the risk of distortion, scoring, or cracking of delicate components. Its design helps maintain alignment and safeguard both the disc and surrounding structure.

The PWC30403 is made from heat-treated, high-strength steel capable of withstanding the high forces needed to remove shrunk-fit or press-fitted discs. The machining tolerances are held to Pratt & Whitney tooling standards to ensure engagement accuracy and durability. Its robust construction supports repeated use in engine shop environments.

Technicians mount the puller’s interface points onto the designated disc (or coupling points) and then apply controlled torque to retract the disc along its axis. It often operates in conjunction with lubrication, gentle heating, or pressurization techniques to ease disc separation. Proper setup, alignment, and steady force are essential for safe operation.

While the PWC30403 can be procured as a standalone puller, it is also a standard component in the Kell-Strom PWC35200-100, PWC35200-200, and PWC35200-300 hot-section engine kits. Its inclusion in these kits ensures that field or shop teams already equipped with the kit will have the correct puller on hand.

Operators should verify correct tool orientation and alignment before applying force, and avoid off-axis or side loading. It’s also critical to wear appropriate PPE, including eye protection and gloves. Inspect the puller before use for cracks, deformities, or thread damage, and ensure the puller is rated for the engine’s service limits.

The puller should receive a thorough visual inspection before each use, checking for signs of wear, cracking, or thread damage. Lubrication of moving or threaded elements helps maintain smooth operation. If any component shows signs of fatigue or deformation, it should be removed from service.

The Kell-Strom PWC30403 turbine disc puller is assigned NSN 5120-00-883-1729, ensuring it is traceable within military and aviation supply chains. This NSN designation provides operators with assurance of authenticity and compatibility when sourcing the tool for certified maintenance tasks.

An OEM puller, such as the PWC30403, matches fit tolerances and removal forces defined by engine designers, reducing the risk of incidental damage. Generic or improvised tools often lack controlled force application, which can cause misalignment, scoring, or component failure. Using the correct puller preserves engine integrity and ensures compliance with warranty or overhauled part requirements.

In some applications, slight heating of the disc (within safe limits) or thermal expansion may ease its withdrawal, especially in interference fits. The puller is designed to apply a steady force, allowing the technician to incorporate such techniques as appropriate. However, any heating must follow engine manufacturer guidelines to avoid exceeding material limits.
