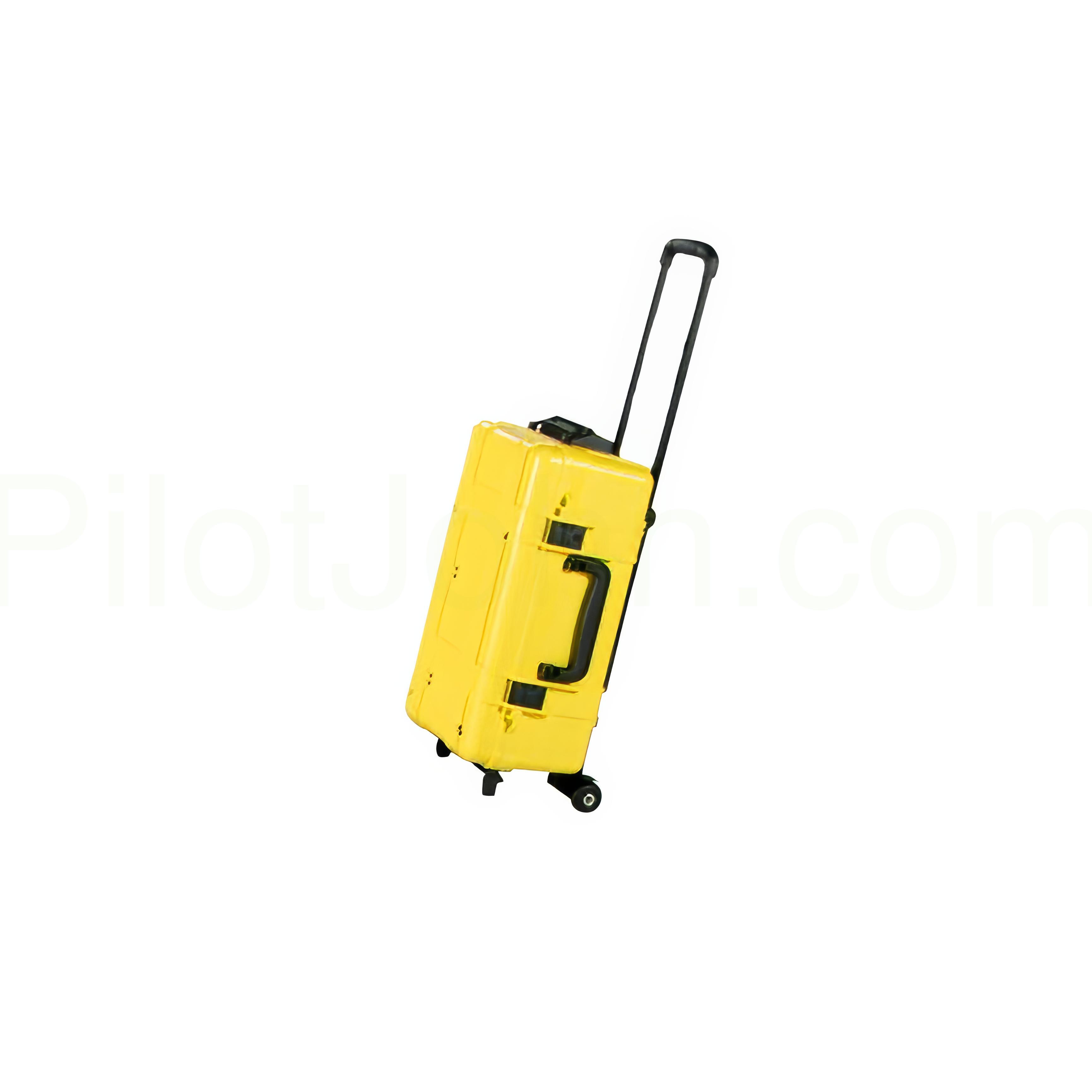

Laversab 6300-M3 - Pitot Static Tester - Military - Wide Temp Range

The Laversab 6300-M3 automated tester is designed for military use and to connect directly to an aircraft’s pitot and static system. Using the small and light-weight remote unit, a user can operate the tester from the cockpit and use it to test the entire pitot and static system of the aircraft, including altimeters, climb indicators, airspeed / Mach indicators, air data computers, and auto-pilots. The tester includes built-in vacuum and pressure pumps and emergency manual bleed-down valves. The operator simply connects power, and the pitot and static hoses, to make the unit operational. The high accuracy of this unit meets the latest RVSM requirements. Also, it needs to be calibrated only once a year. The use of “Profiles” makes it possible for the operator to run through a test using only a single key on the Remote unit. The wide operating temp. makes it ideal for military applications.

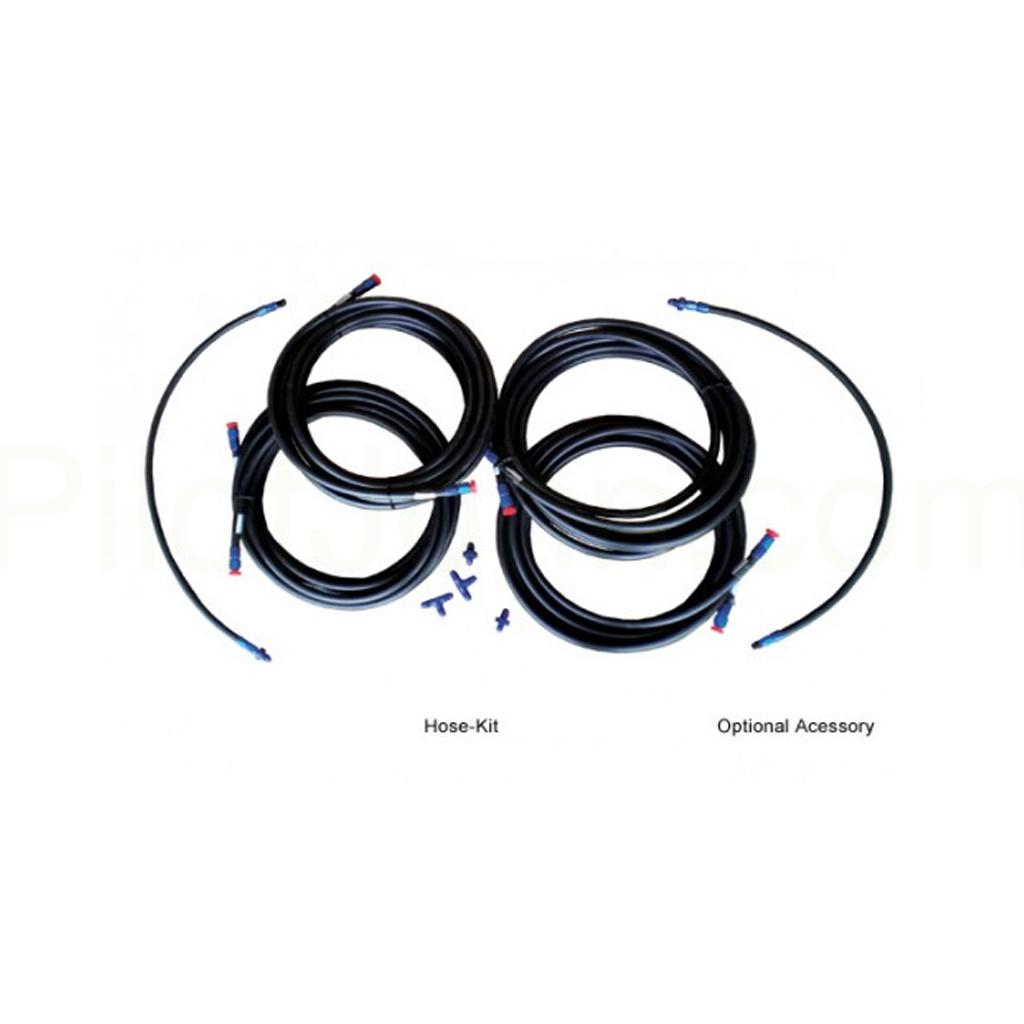

Air Data Accessories Kits or Pitot/Static Adapters

View our full line of air data accessories kits or pitot/static adapters by Nav-Aids. Bundle with your new aircraft air-data pitot static tester.

Static Output - Pressure Function

• Range: 0.1 to 42 inHg
• Resolution: 0.001 inHg
• Accuracy: 0.002 inHg

Static Output - Altitude Function

• Range: -4000 ft. to 100,000 ft.
• Resolution: 1 foot
• Accuracy: 2 ft. @ 0 ft., 6 ft. @ 35,000 ft., 12 ft. @ 50,000 ft., 50 ft. @ 80,000 ft.

Static Output - Climb Function

• Range: 0 ft/min to 50,000 ft/min
• Resolution: 1 ft/min
• Accuracy: 1% of rate of climb

Pitot Output - Pressure Function

• Range: 0.1 to 110 inHg
• Resolution: 0.001 inHg
• Accuracy: 0.003 inHg

Pitot Output - Airspeed Function

• Range: 0 to 1100 knots
• Resolution: 0.1 knots
• Accuracy: 1.5 knots @ 20 knots, 0.5 knots @ 50 knots, <0.25 knots above 100 knots, <0.1 knots above 300 knots
• Airspeed rate: 0 to 800 knots/min

Pitot Output - Airspeed Function

• Range: 0.0 to 5.0
• Mach resolution: 0.001
• Mach accuracy: 0.001 above 0.2 Mach

Pitot Output - EPR Function

• Range: 0 to 199
• Resolution: 0.001
• Accuracy: 0.001 typ.

Jog Feature

Allows set-point to be increased or decreased in steps of 1 foot or 0.1 knots simply by using arrow keys.

Profiles Feature

A profile of the standard set-points of an altimeter check or airspeed check can be downloaded from a computer. Such a profile allows the user to operate the unit using a single key. Up to 20 such profiles can be stored in the unit. PC-based software is included.

Pressure & Vacuum System

The tester includes separate pressure and vacuum diaphragm pumps for higher reliability. The pressure system includes a membrane dryer, and a filter to provide clean dry air for the entire system.

Remote Unit

The remote unit is the operator interface for the tester. It is small and light enough to be used in the cockpit. The tester can be turned On and Off from the Remote. All valid parameters, including altitude, climb, and airspeed, are clearly displayed simultaneously on a single screen on the Remote.

Manual Vent

The tester includes manual metering valves to enable the system (aircraft) to be manually vented in the event of a power-loss.

Power Requirement

90-260 VAC, 47-440 Hz. or 28 VDC 150W (300W when heaters ON)

Interfaces

RS232, IEEE-488, Encoder

Dimensions & Weight

• Main unit: 22” x 14” x 9” / 44 lbs
• Remote unit: 7” x 8” x 2” / 1 lb.

Environmental Specs

• Operating temp: -40o to 55oC
• Storage temp: -55o to 85oC
• Humidity: 5 to 95% non-condensing
