Malabar 7212B 12 Ton Tripod Jack

The Malabar 7212B is a 12-ton capacity, two stage hydraulic jack designed primarily for use in aircraft maintenance. It consists of a tripod structure, hydraulic cylinder/reservoir assembly, hand pump, and swivel casters.

The jack leg pads are raised off the ground by spring loaded casters. The casters will retract and the pads rest on the ground when a load is applied to the jack.

Standard Features

• Manual hand pump with high, medium and low pressure operating positions
• Heavy duty swivel casters
• Rain hat (covers jack upper head)
• Hard chrome plated cylinder bore
• All unpainted parts are plated to resist corrosion
• Skydrol resistant paint (safety yellow)
• Factory proof load @ 150% of rated capacity

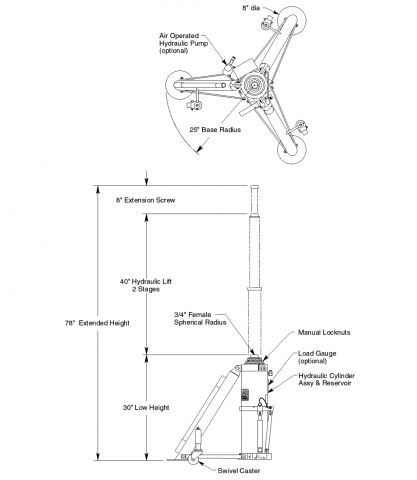

Specifications

• Rated Capacity: 12 tons (10.9 m. tons)
• Side Load: 15% of vertical load
• Roll Under Height:31 inches (787 mm)
• Low Height: 30 inches (762 mm)
• Hydraulic Lift: 40 inches (1016 mm)
• Extension Screw: 8 inches (203 mm)
• Total Extended Height: 78 inches (1981 mm)
• Oil Pressure at Rated Capacity: 3400 psig (239 kg/sq cm)
• Safety Pop-off Valve set at: 13 tons (11.8 m. tons)
• Proof Load: 18 tons (16.3 m. tons)
• Reservoir Capacity: 2.5 gallons (9.5 liters)
• Hydraulic Fluid: MIL-PRF-5606 or equivalent
• Maximum Towing Speed: 2.2 gallons (8.3 liters)
• Approximate Jack Net Weight.: 330 lbs (150 kg)

Typical Aircraft Applications

• Forward Fuselage - B717, DC9, Jetstar, MD80, MD90
• Aft Fuselage - ATR42, ATR72, B717, DC9 with aft stair
• Wing - C601, C602, CRJ, Jetstar, Falcon 10, Falcon 20, Falcon 50, Falcon 100

Optional Add-ons

• AP: Air Operated Hydraulic Pump
• GA: Load Gauge
• SPC: Special Paint Color (yellow is standard)

*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
