Malabar 733A 40 Ton Tripod Aircraft Jack

Item Superseded
This item has been discontinued or is no longer available.

It has been replaced by Malabar 73300A-11 (Qty 1)

CofC and 8130 available at no cost
Worldwide shipping available
Ask Our Aviation Specialists
Live Chat | +1.252.585.4553 | Email

Need a Quote?

Use this form to get a quote by email today.
First Name:
Last Name:
Email:
Company Name: (optional)
Questions/Comments: (optional)

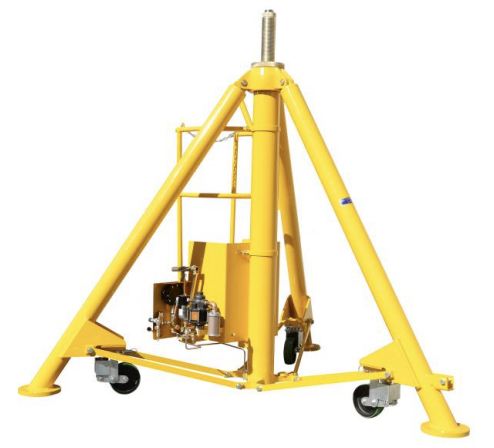

The Malabar 733A fixed height tripod jack is a 40-ton capacity, single-stage hydraulic jack designed primarily for use in aircraft maintenance. It consists of a tripod structure, hydraulic cylinder assembly, reservoir, valve block assembly, hand pump assembly, tow handle, and swivel casters. The jackleg pads are raised off the ground by spring-loaded casters. The casters will retract and the pads rest on the ground when a load is applied to the jack. Model 733A is built to withstand harsh environmental conditions and rugged use and to provide many years of continuous service. Our customers are guaranteed a quality product with each purchase and are assured of our continued product support whenever and wherever the need arises

Standard Features

  • Manual hand pump with high, medium, and low pressure operating positions
  • Heavy-duty tow handle and swivel casters with swivel locks for improved towing
  • Hydraulic "thermal" relief valve for added protection and safety in the event of internal fluid expansion due to temperature
  • Secondary cylinder seal for protection against contaminants and to prolong the life of a primary seal
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity

Specifications

  • Rated Capacity: 40 tons (36.3 m. tons)
  • Side Load: 15% of vertical load
  • Roll Under Height: 88.5 inches (2248 mm)
  • Low Height: 87 inches (2210 mm)
  • Hydraulic Lift: 72 inches (1829 mm)
  • Extension Screw: 26 inches (660 mm)
  • Total Extended Height: 185 inches (4699 mm)
  • Oil Pressure at Rated Capacity: 2613 psig (184 kg/sq cm)
  • Safety Pop-off Valves
    • System Relief Valve set at: 44 tons (39.9 m. tons)
    • Thermal Relief Valve set at : 50 tons (45.4 m. tons)
  • Proof Load: 60 tons (54.4 m. tons)
  • Reservoir Capacity: 14 gallons (53.0 liters)
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Maximum Towing Speed: 5 mph (8 km/h)
  • Approximate Jack Net Weight: 1700 lbs (771 kg)

Typical Aircraft Applications

  • Forward Fuselage
    • A300***, A310***, A330***, A340***, A350***, B747, B757, B767, B777**/***, B787, DC10, MD11, L1011
  • Wing
    • A318*, A319*, A320*, A321*, ATR42, ATR72, C130, C SERIES

*Specify 1-1/4" Male Spherical Radius Ship Adapter (P/N 873120) **Specify Extended 3/4" Female Spherical Radius Ship Adapter (P/N 73318-2) ***Suitable for Shoring and Gear Swing only

Alternate Models
73300A-10AP - Air Pump , GA - Gauge , LA - Ladder , SA - Shock Absorber
73300A-11AP - Air Pump , GA - Gauge , LA - Ladder
General Information
Part #733A
ManufacturerMalabar
