Malabar 8761 10 Ton Tripod Jack

Malabar 8761
Manufacturer: Malabar
Part Number: 8761
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
Login to Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
120 Ton Tripod Jack - 160 inches up to 262 inches
5 Ton - 161.5 to Variable
80 Ton Tripod Jack - 155 inches up to 238 inches
Tripod 60 Ton Jack (CE) - 60 to 128 inches - With Air Pump
Jack, Tripod 30 Ton (Ce) - With Air Pump - Boeing, Global 5000/6000, Gulfstream Aircraft

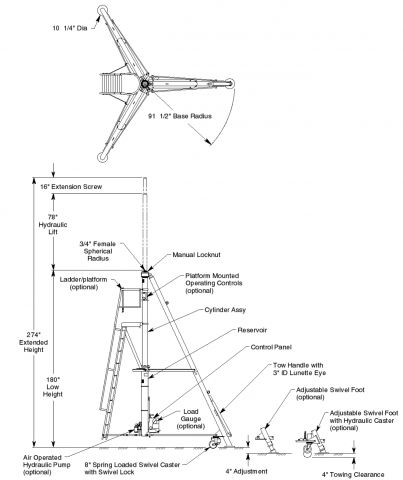

The Malabar 8761 is a 10 ton capacity, single stage hydraulic jack designed primarily for use in aircraft maintenance. It consists of a tripod structure, hydraulic cylinder assembly, reservoir, valve block assembly, hand pump assembly, tow handle and swivel casters.

The jack leg pads are raised off the ground by spring loaded casters. The casters will retract and the pads rest on the ground when a load is applied to the jack.

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty tow handle and swivel casters with swivel locks for improved towing
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity

Specifications

  • Rated Capacity: 10 tons (9.1 m. tons)
  • Side Load: 15% of vertical load
  • Roll Under Height: 181.5 8nches (4610 mm)
  • Low Height: 180 inches (4572 mm)
  • Hydraulic Lift: 78 inches (1981 mm)
  • Extension Screw: 16 inches (406 mm)
  • Total Extended Height: 274 inches (6960 mm)
  • Oil Pressure at Rated Capacity: 1080 psig (76 kg/sq cm)
  • Safety Pop-off Valve set at: 11 tons (10.0 m. tons)
  • Proof Load: 15 tons (13.6 m. tons)
  • Reservoir Capacity: 8.1 gallons (30.7 liters)
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Maximum Towing Speed: 5 mph (8 km/h)
  • Approximate Jack Net Weight.: 1400 lbs (635 kg)

Typical Aircraft Applications

  • Aft Fuselage - A300, A330, A340, A350-900

Optional Add-ons

  • AP: Air Operated Hydraulic Pump
  • GA: Load Gauge
  • AF: Adjustable Swivel Foot
  • HC: Adjustable Swivel Foot with Hydraulic Caster
  • SA: Shock Absorber (required Hydraulic Caster)
  • LA: Ladder/platform
  • RC: Platform Mounted Operating Controls
  • SPC: Special Paint Color (yellow is standard)
Compatible Aircraft*
AirbusA300, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600, A350
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
