Malabar 8803A 15 Ton Tripod Jack

Malabar 8803A
Manufacturer: Malabar
Part Number: 8803A
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment
Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
10 Ton - 180 to 274 inches
120 Ton Tripod Jack - 160 inches up to 262 inches
100 Ton Tripod Jack - 98 inches up to 194.5 inches
11 Ton - 68 to 138 inches
12 Ton - 60 to TBD inches

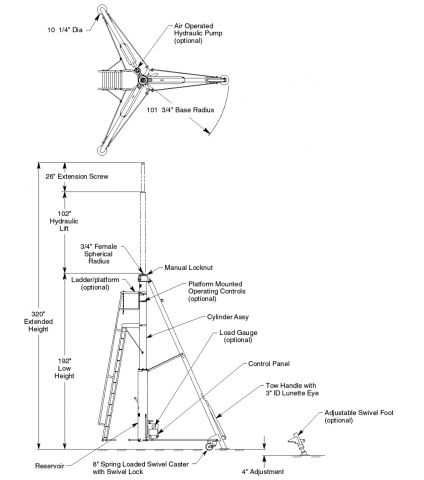

The Malabar 8803A is a 15-ton capacity, single stage hydraulic jack designed primarily for use in aircraft maintenance. It consists of a tripod structure, hydraulic cylinder assembly, reservoir, valve block assembly, hand pump assembly, tow handle, and swivel casters.

The jack leg pads are raised off the ground by spring loaded casters. The casters will retract and the pads rest on the ground when a load is applied to the jack.

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty tow handle and swivel casters with swivel locks for improved towing
  • Hydraulic "Thermal" relief valve for added protection and safety in the event of internal fluid expansion due to temperature
  • Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity


  • Rated Capacity: 15 tons (13.6 m. tons)
  • Side Load: 15% of vertical load
  • Roll Under Height: 193.5 inches (4915 mm)
  • Low Height: 192 inches (4877 mm)
  • Hydraulic Lift: 102 inches (2591 mm)
  • Extension Screw: 26 inches (660 mm)
  • Total Extended Height: 320 inches (8128 mm)
  • Oil Pressure at Rated Capacity: 984 psig (69 kg/sq cm)
  • Safety Pop-off Valve set at: 16.5 tons (15.0 m. tons) and 18.8 tons (17.1 m. tons)
  • Proof Load: 22.5 tons (20.4 m. tons)
  • Reservoir Capacity: 14.4 gallons (54.5 liters)
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Maximum Towing Speed: 5 mph (8 km/h)
  • Approximate Jack Net Weight.: 2900 lbs (1315 kg)

Typical Aircraft Applications

  • Mid Wing - B777, B787
  • Wing Tip - B747, B777, B787
  • Aft Fuselage - A330

Optional Add-ons

  • AP: Air Operated Hydraulic Pump
  • GA: Load Gauge
  • AF: Adjustable Swivel Foot
  • LA: Ladder/Platform
  • RC: Platform Mounted Operating Controls
  • SPC: Special Paint Color (yellow is standard)
Compatible Aircraft*
Boeing747, 777, 787
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
