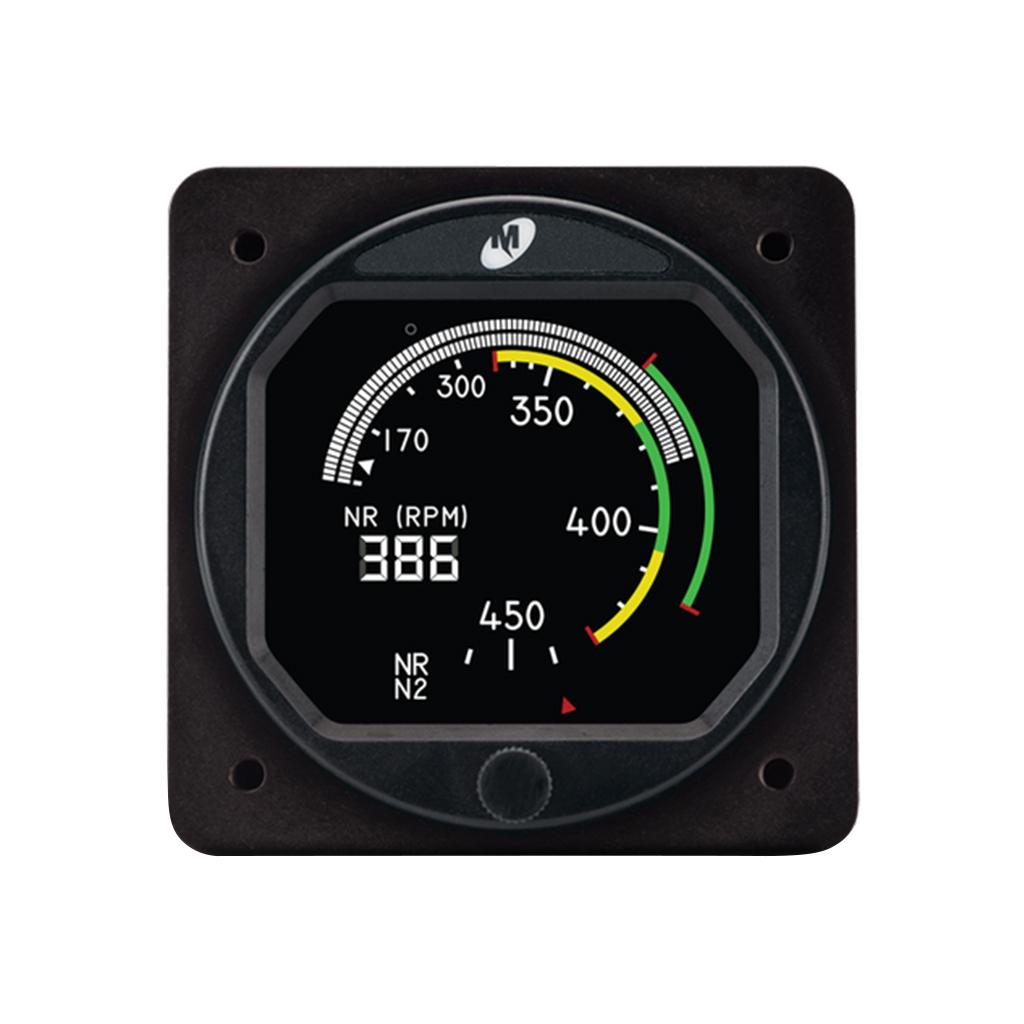

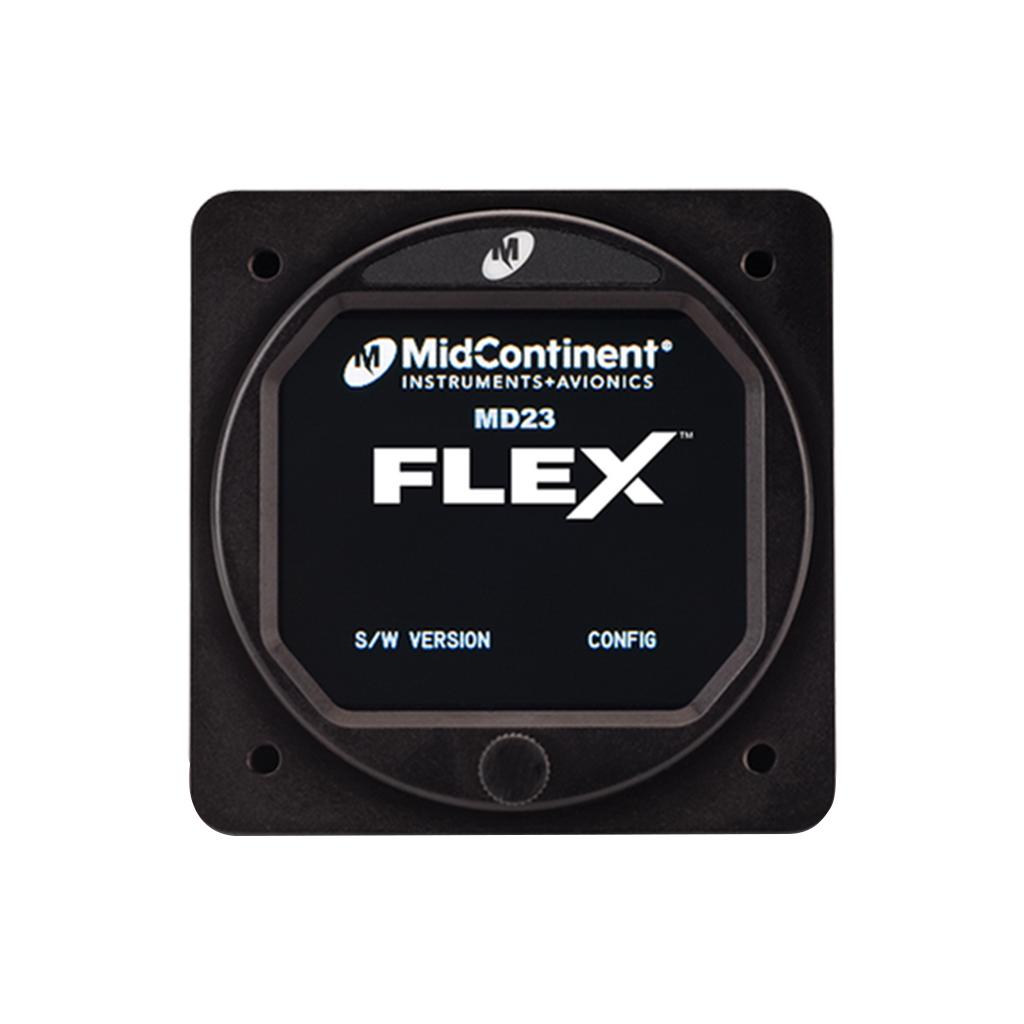

MCI 6420023-2 - MD23 Flex Custom Function Display
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Customizable configuration (inputs/outputs), user interface and graphics
• Receives and displays ARINC 429, analog, discrete, frequency, temperature, absolute and differential pressure data
• Fits standard 2-inch panel cutout
• Rechargeable, field-replaceable emergency battery (available)
• Lightweight — 0.4 lbs
• Simple user interface — Single, push-and-turn control knob
• Daylight readable LCD and smooth, high-resolution graphics
• Manual, external lighting control or built-in photocell for automatic dimming
• Field-upgradeable software and configuration via standard USB-A port
• Night Vision Imaging System (NVIS) compatible (available)
• TSO certified (Design Assurance Level A)
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6420023-2 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8807300060 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Battery | Rechargeable coin cell (clock memory only), Rechargeable, field-replaceable emergency battery supply (available) P/N 6430006-(1), Technology: Nickel-Metal Hydride (NiMH), Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity), Runtime: 60 minutes @ 0.25A |
| Certification | FAA TSO certified to C2d (Type B), C3e, C4c, C8e, C10c, C106, C113b, C201, RTCA DO-160G qualified, RTCA DO-178C qualified, Design Assurance Level (DAL) A |
| Data Input | ARINC 429: Low or high speed, labels per individual CID, RS-232: Data format per individual CID, Analog: 0-28 VDC, 1% accuracy (±0.050 V), Discrete: Open, ground, high, Thermocouple: Type K, Frequency: 0.5-100 VDC pp, 10-2,000 Hz, 10-20,000 Hz, Up to 12 programmable Analog, Discrete or Frequency inputs available |
| Data Output | ARINC 429: Low or high speed, labels per individual CID, RS-232: Data format per individual CID, Analog: 0-5 VDC, 1% accuracy (±0.050 V), Discrete: Open, ground, high, Up to 12 programmable Analog or Discrete outputs available |
| Dimensions | 2.43 x 2.43 x 1.0 inches |
| Lighting | 5, 14, or 28 VDC external control or internal photocell for automatic dimming |
| Mating Connector | MCIA P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect), MCIA P/N 9019162-2: Pneumatic fittings (Quick Disconnect) |
| Mounting | Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel |
| Power Input | 10–32 VDC, 0.14 A @ 28 VDC, 4 watts nominal |
| Weight | 0.4 lbs (0.17 kg) |
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
