Available for Order
Lead Time: Chat now or request quote
$7,500.00 /ea.
Qty
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Attitude, altitude, airspeed, slip, and vertical trend indication
• Heading via MD32 Magnetometer (optional) or aircraft system
• Five primary functions utilize modern solid-state MEMS gyro, accelerometer and pressure transducer technology

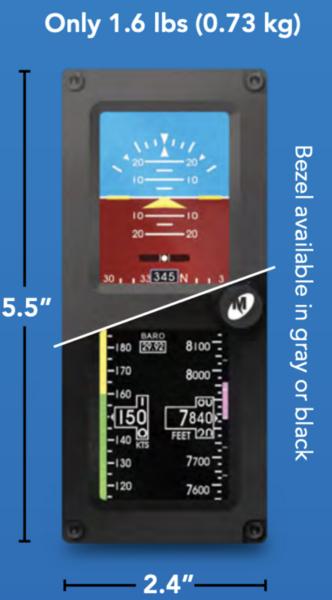

• Small 2.4” x 5.5” footprint
• Extremely lightweight — 1.6 lbs
• Self-contained, rechargeable, field-replaceable emergency battery
• Smooth, high-definition graphics

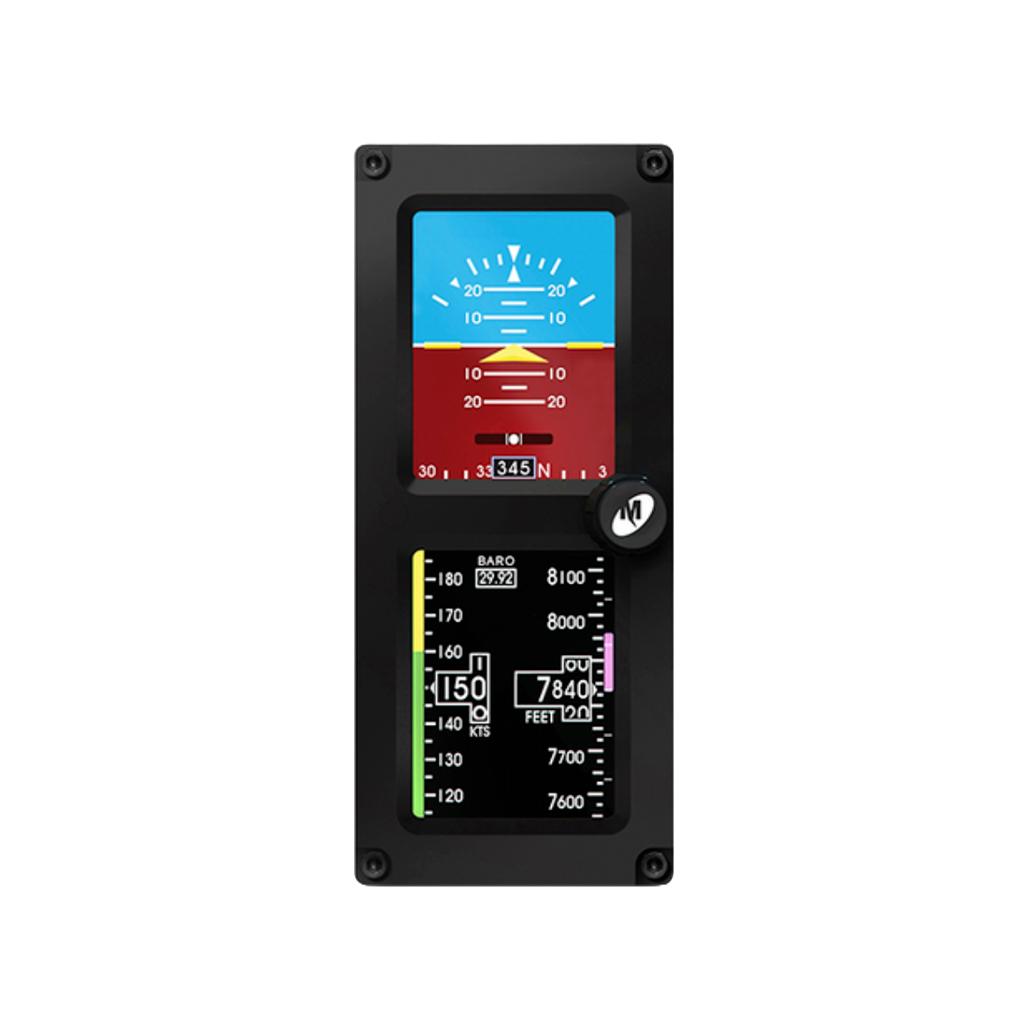

• Unique, two-screen display with wide viewing angles and a user-friendly menu structure

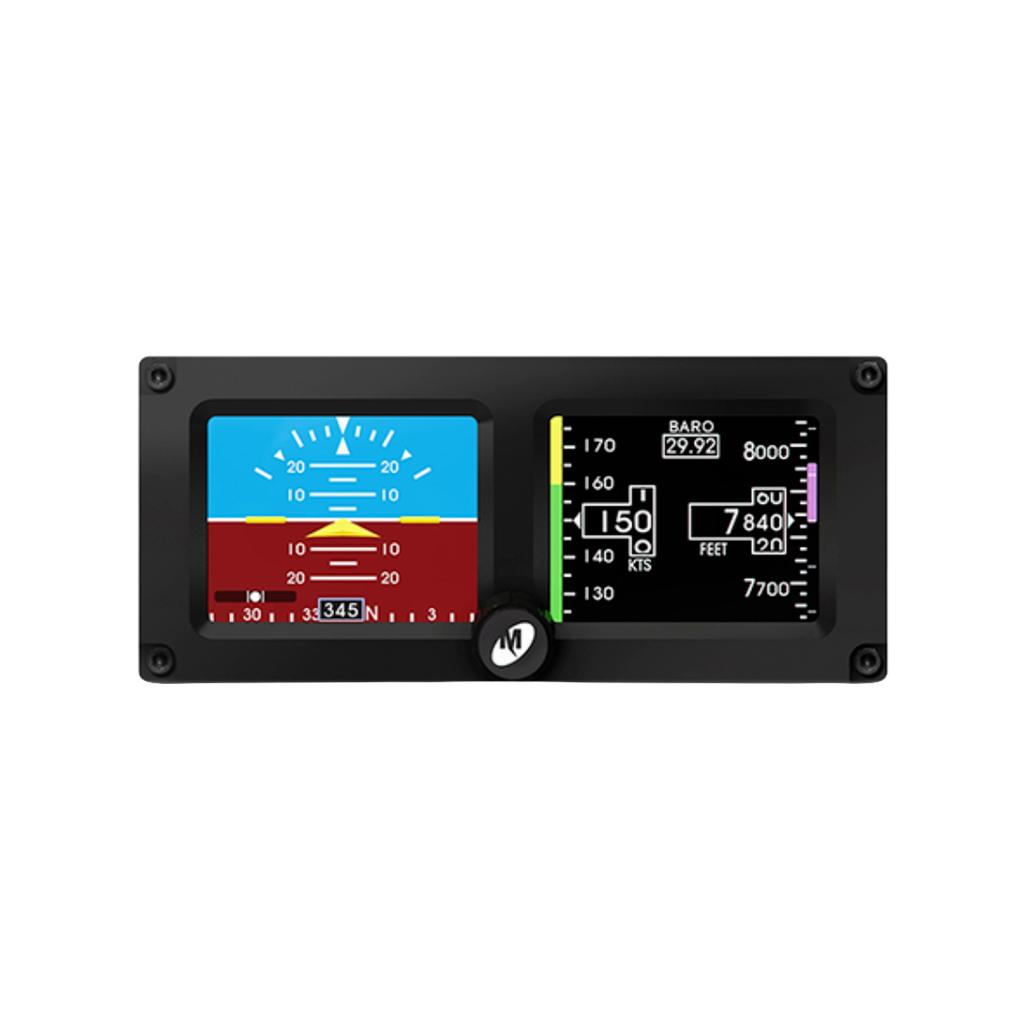

• Selectable orientation — horizontal and vertical
• Aircraft-specific, programmable airspeed range markings
• Configurable for static source error correction (SSEC)
• Simple user interface — one knob configures the display and provides menu control
• 10–32 VDC power input
• External, automatic and manual dimming control settings
• Software configurable lighting curves
• Field-upgradable software via standard USB port
• FAA / EASA / ANAC TSO certified to C2d, C3e, C4c, C6e, C10b, C106, C113a, C179a
• RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
• RTCA DO-160 and RTCA DO-311 qualified
• Designed and built in Wichita, Kansas, USA
• Two-year or 2,000-hour warranty
| General Information | |
|---|---|
| Part # | 6420302-2 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 9014206000 |
| ECCN | 7A994 |
| Specifications | |
|---|---|
| Battery | Rechargeable, field-replaceable, internal battery, Technology: NanoPhosphate® lithium-ion, Run time: 60 minutes minimum when fully charged and properly maintained |
| Bezel | Black |
| Certification | FAA TSO certified to C2d, C3e, C4c, C6e (incomplete), C10b, C106, C113a, C179a, ANAC TSO certified to C2d, C3e, C4c, C10b, C106, C113a, C179a, EASA ETSO certified to C2d, C3d (incomplete), C4c, C10b, C106, C113, C179a, RTCA DO-178B and DO-254 Design Assurance Level (DAL) A, RTCA DO-160 and RTCA DO-311 qualified |
| Heading | Within ± 2° up to 55°N or 45°S |
| Lighting | 5, 14, or 28 VDC external input or internal photocell, Programmable dimming curve |
| Mating Connectors | Mid-Continent P/N 9017646 kit contains custom DB15 connector with configuration module, pitot, and static connectors |

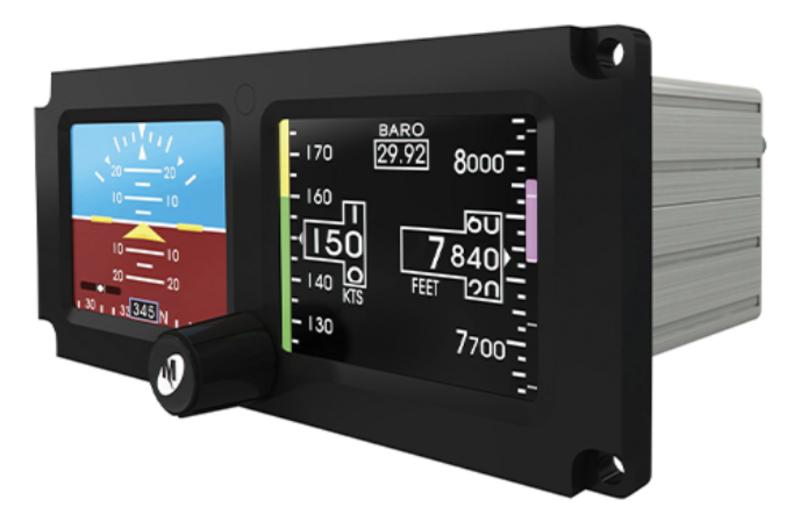

| Mounting | Front panel mounted |
| Operating Range | Attitude: 300° per second pitch, roll, and yaw (max), Altitude: -1,500 to +55,000 ft (-457 m to 16,764 m), Airspeed: 20 to 500 knots (23 to 575 mph) (37 to 926 kph) |
| Output | ARINC 429 (high or low speed, see manual for specific labels) |
| Panel Roll | Configurable: -5° to +5° roll |
| Panel Tilt | Configurable: -90° to +90° pitch |
| Pilot Interface | 16-detent, push-and-turn knob |
| Power Input | 10-32 VDC; 6 W nominal, 40 W max |
| Rights | U.S. Patent 9,739,611 |
| Units of Measure | Altitude: Feet or meters, Barometric Setting: Inches of mercury, millibars, Airspeed: Knots, miles per hour, or kilometers per hour |
| Vertical Trend | 6 second time frame |
| Weight | 1.6 lbs (0.73 kg) |
