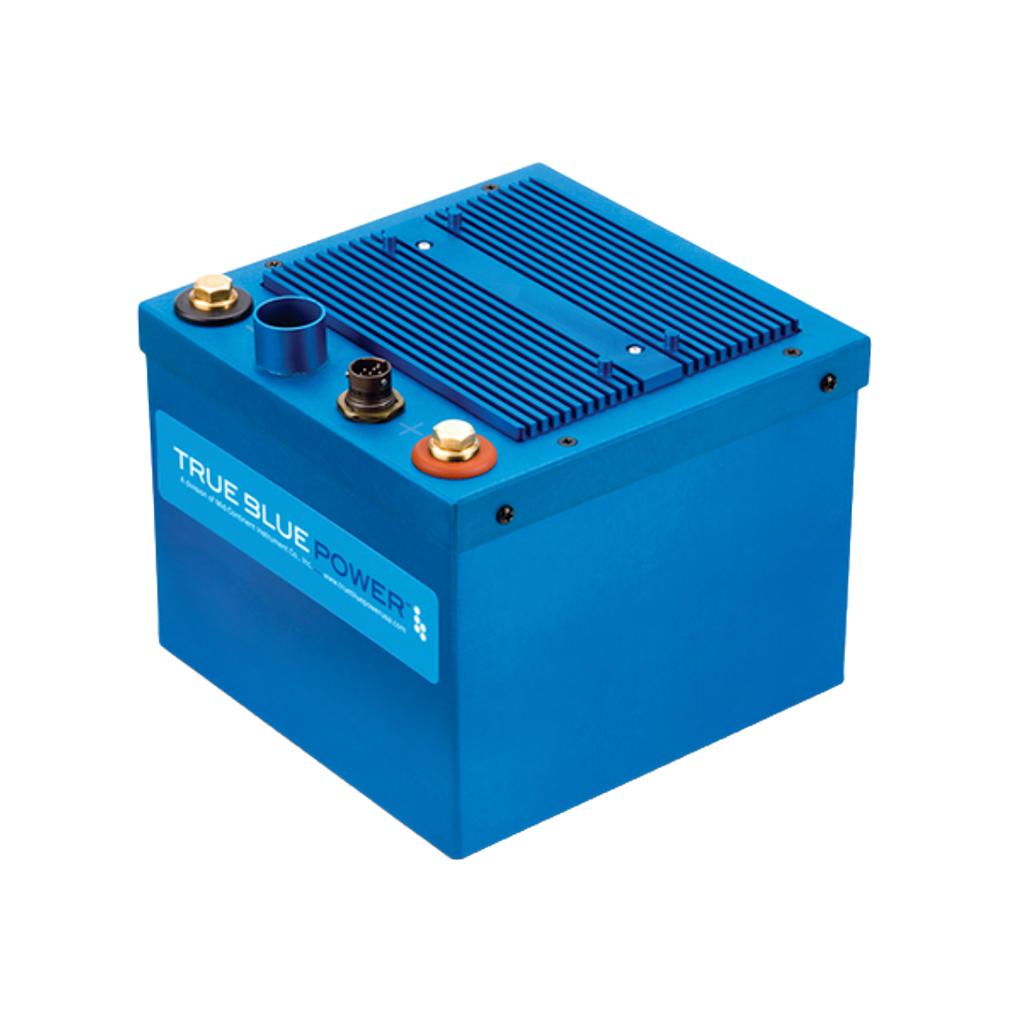

MCI 6430017-2 - Battery TB17, Advanced Lithium-ion
Available for Order
Lead Time: Chat now or request quote
$7,245.00 /ea.
Qty
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• 17 amp-hour battery nominal at 23°C/73.4°F
• Weighs 16 lbs. — 45% lighter than lead-acid or nickel-cadmium alternatives
• Advanced NanoPhosphate® lithium-ion cell chemistry — 3x the energy per kilogram when compared to lead-acid and nickel-cadmium cells
• 7 engine starts in 7 minutes
• 30 minutes (at 34 amps) for complete recharge when the battery is fully discharged
• Superior performance at extreme temperatures (-40°C/-40°F to +70°C/+158°F)
• Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
• Communicates battery status to the cockpit
• Higher voltage during engine start — Less wear, less maintenance and increased useful life
• Heater on/off feature
• 2-year maintenance interval — 50 – 90% savings on maintenance costs
• 8 years (average) useful life
• Designed and built in Wichita, Kansas, USA
• FAA TSO Certified
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6430017-2 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8507600000 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Battery Life Expectancy | 8 years (average) |
| Capacity | 17 amp-hour nominal at 23°C/73.4°F |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, UNDOT/IATA |
| Charge Voltage | 28 VDC nominal |
| Configuration | 7P8S; 7 parallel cells x 8 series modules |
| Dimensions | 7.2” L x 7.4” W x 6.1” H |
| Energy Density | 64.4 Wh/kg, 87.1 Wh/liter |
| Maintenance | 2-year maintenance interval; offers 50 – 90% savings on maintenance costs |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Output Current | 500 A continuous, 840 A max |
| Output Voltage | 26.4 VDC nominal |
| Protection | Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature, and charge current limiting |
| Technology | Advanced NanoPhosphate® lithium-ion cell chemistry |
| Weight | 16.0 lbs (7.2 kg) |
