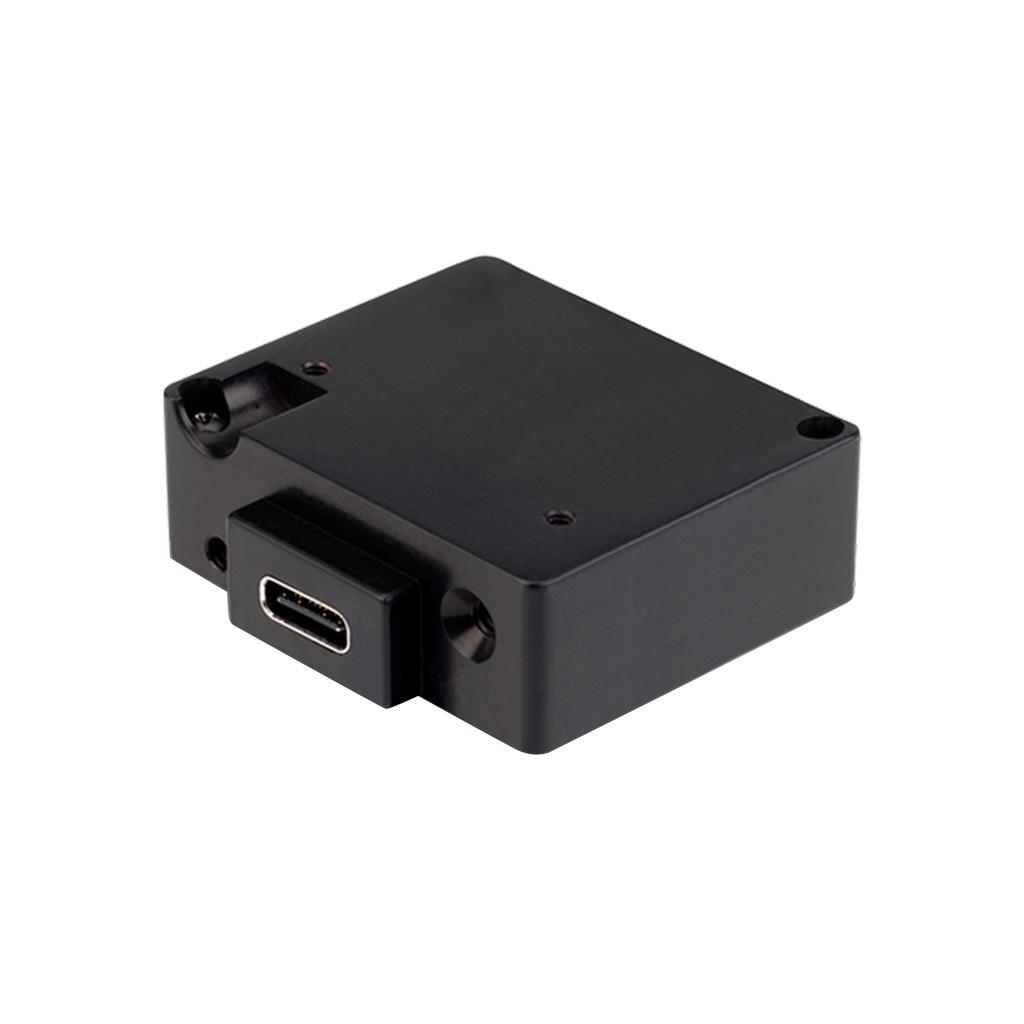

MCI 6430202-17 - TA202 High Power USB Charging Port
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Simultaneously provides 3 amps of power per charging port to USB-A and USB-C electronic devices
• 10 – 32 VDC input voltage
• 5 VDC ± 0.25 output voltage per port
• Dual USB-A / USB-C connectors
• Short circuit, power surges, overload and over temperature protection
• In-seat, cabin, cockpit and galley applications
• Designed and built in Wichita, Kansas, USA
• Limited lifetime warranty
| General Information | |
|---|---|
| Part # | 6430202-17 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409540 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Case | Anodized aluminum, black |
| Certification | FAA TSO C71, EASA ETSO C71, CAAC CTSO C71, RTCA DO-160G |
| Dimensions | 1.5” W x 0.52” H x 1.25” D |
| Dust Covers | 9019313-1, 9019313-2 |
| Faceplates | 9019351-1, 9019384-3 |
| Input Power | 18 W per port (maximum) |
| Input Voltage | 10 – 32 VDC |
| Installation | In-seat, cabin, cockpit, and galley |
| Mating Connector Kit | MCI P/N 9017960 (included) |
| Mounting | Front or rear; optional faceplates and adapter plates |
| Output Current | 3.0 amps per port |
| Output Voltage | 5 VDC ± 0.25 per port |
| Power Input | Rear |
| USB Connector | Single USB-C |
| Weight | 0.8 ounces (23 grams) |
