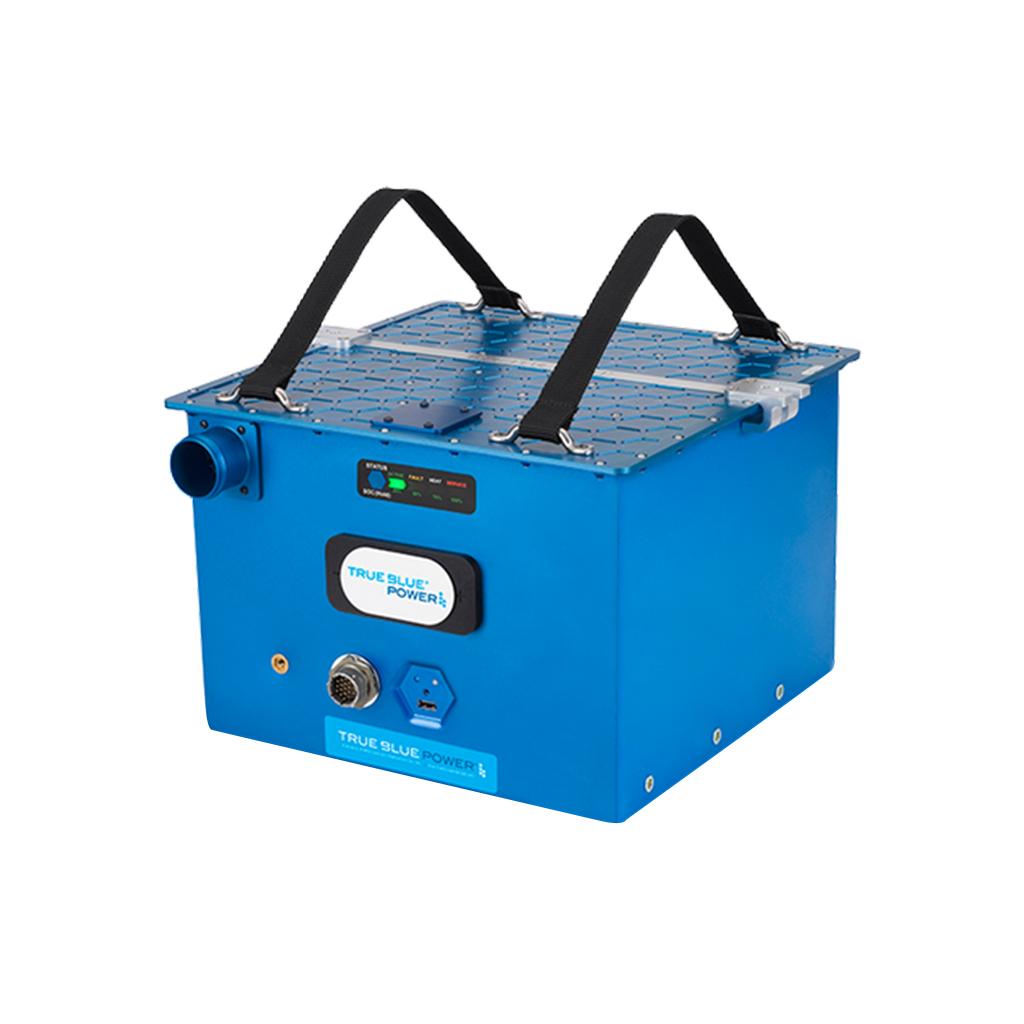

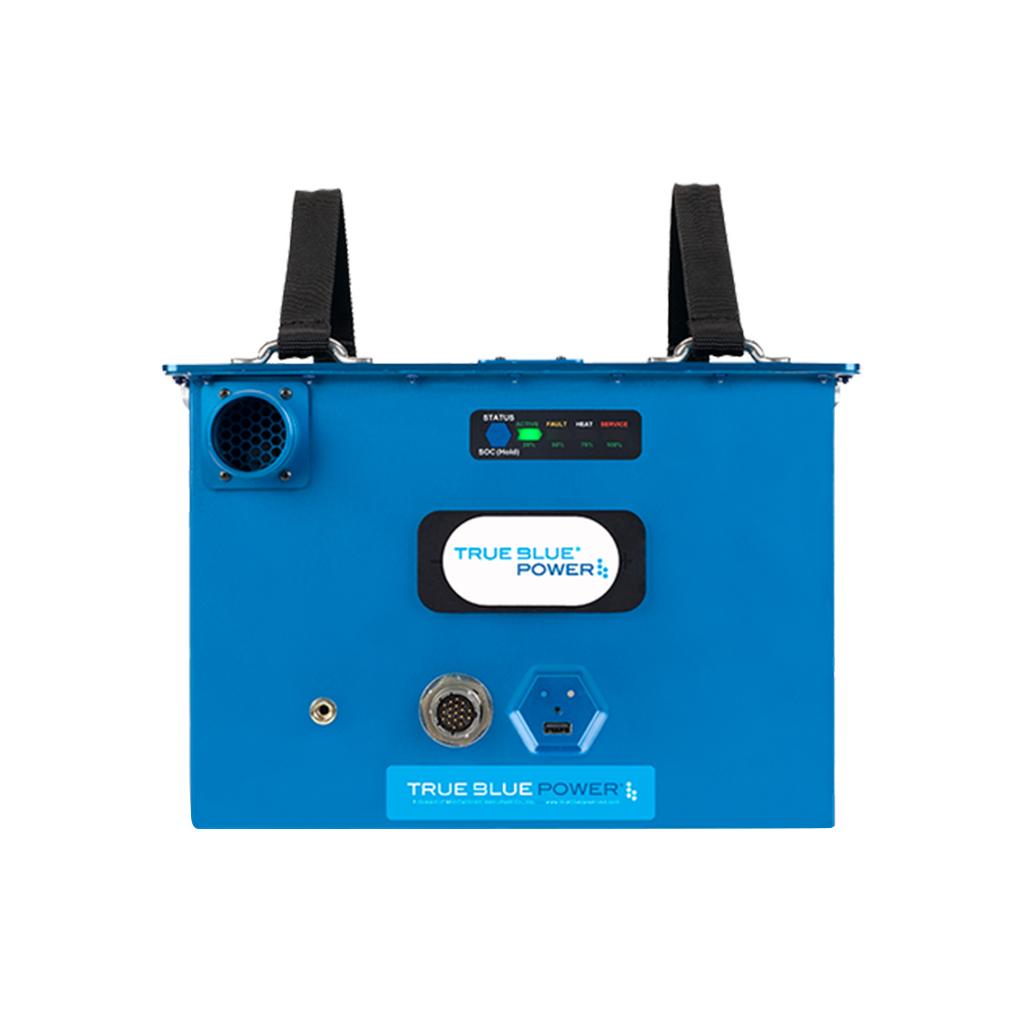

MCI 6431060-1 - Battery, TB60, Advanced Lithium-ion, Gen5
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• 60 amp-hour nominal at 23°C/73°F
• Weighs 52.9 lbs. — up to 60% less than lead-acid and NiCad solutions
• Advanced NanoPhosphate® lithium-ion cell chemistry
• Higher voltage during engine start — Less wear, less maintenance and increased useful life
• Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
• More than 1 amp-hour per pound
• Automatic internal heater
• Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
• Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
• On-condition maintenance
• Designed and built in Wichita, Kansas, USA
• FAA TSO Certified
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6431060-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8507600000 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Capacity | 60 amp-hour nominal (at 23°C/73°F) |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA |
| Charge Current Limiting | Programmable up to 8C or unlimited |
| Charge Voltage | 28 VDC nominal |
| Configuration | 24P8S; 4 parallel x 8 in series x 6 |
| Dimensions | 12.5" L x 14.4" W x 8.9" H |
| Energy Density | 66 Wh/Kg |
| Life Expectancy | 8 years (average) |
| Maintenance | On-condition |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Output Current | 425 A continuous (1,500 A max) |
| Output Voltage | 26.4 VDC nominal |
| Technology | Advanced NanoPhosphate® lithium-ion cell chemistry |
| Weight | 52.9 lbs. (24.0 kg) |
