Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by Mid-Continent Instrument & Avionics MD23-225 (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• 160 knots configuration
• Customizable range markings can be added to match aircraft operating handbook
• Affordable, certified 2-inch instrument which can be used as standby or primary indicator
• Integral long life 5, 14 or 28 volt LED lighting
• Anti-reflective glass enhances visibility and reduces pilot fatigue
• Rear-mounted in standard 2 1/4” cutouts horizontally, vertically or individually
• FAA TSO certified to C4c, C2d and C10b
• Designed and built in Wichita, Kansas, USA
• One-year limited warranty
| General Information | |
|---|---|

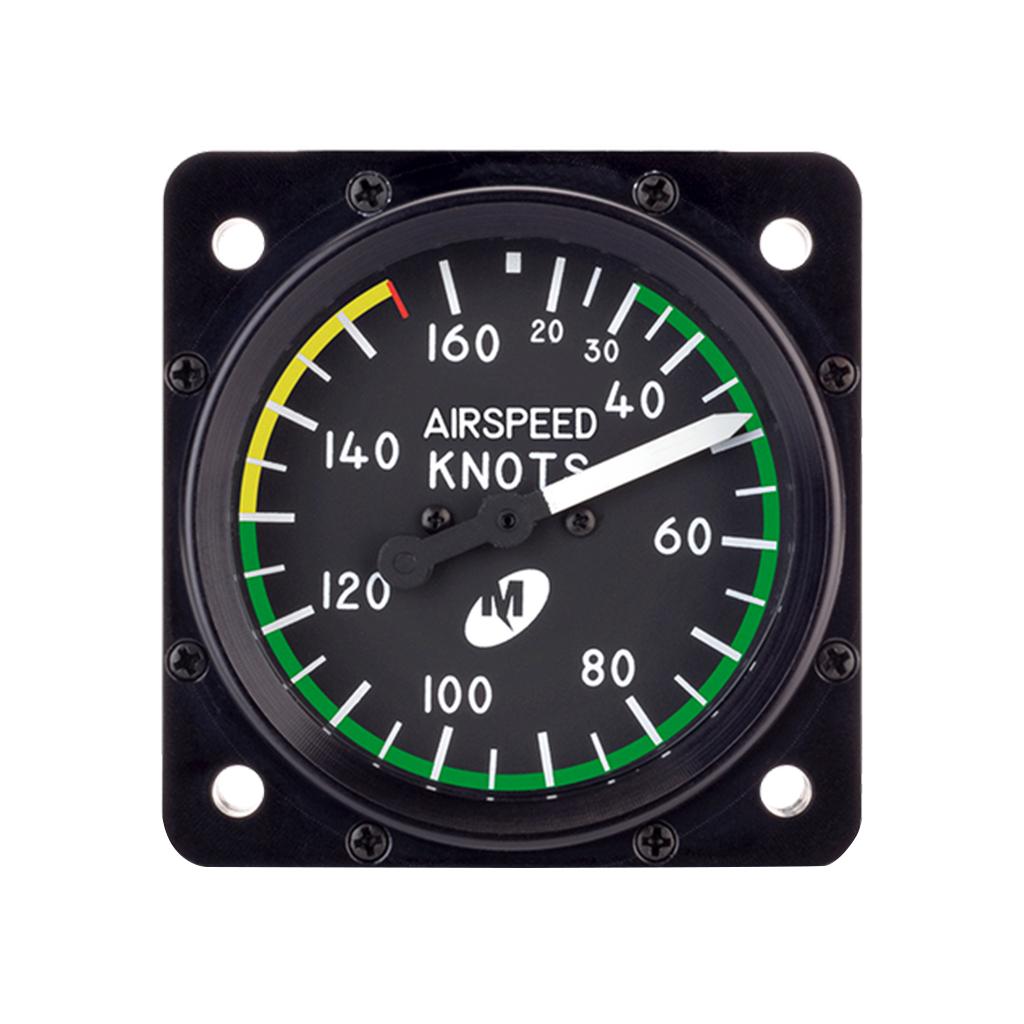

| Part # | MD25-160 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Specifications | |
|---|---|
| Altitude | -15,000 to +50,000 feet |
| Certification | FAA TSO certified to C4c, C2d and C10b, RTCA DO-160F |
| Color | Case: Black |
| Connections | 1/8-27 NPT per MIL-P-7105 |
| Dimensions | 2.4 x 2.4 x 3.9 inches |
| Lighting | Field-replaceable light tray available for 5, 14, & 28 VDC input with incandescent bulbs or white LEDs |
| Mounting | Rear mount |
| Operating Temperature | -20°C to +55°C |
| Range Markings | Per customer specifications (optional) |
| Weight | 0.6 lbs. |
