Key Benefits

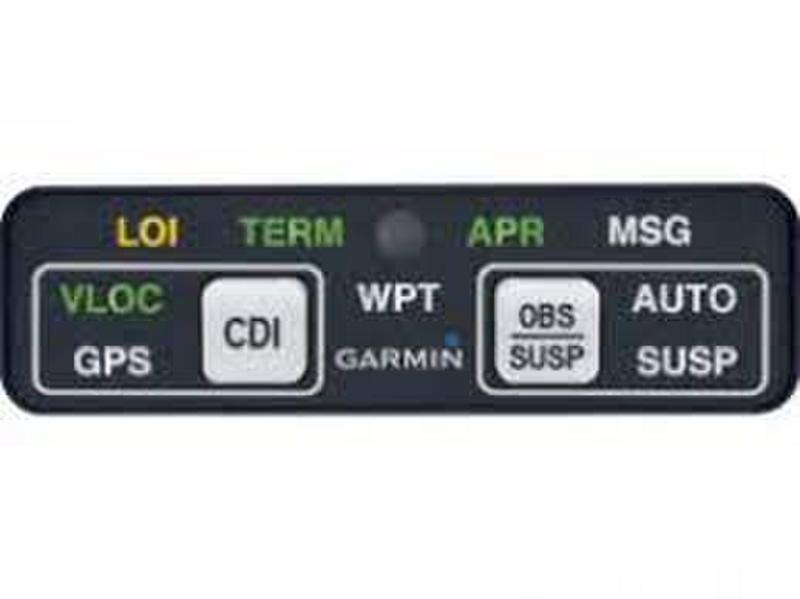

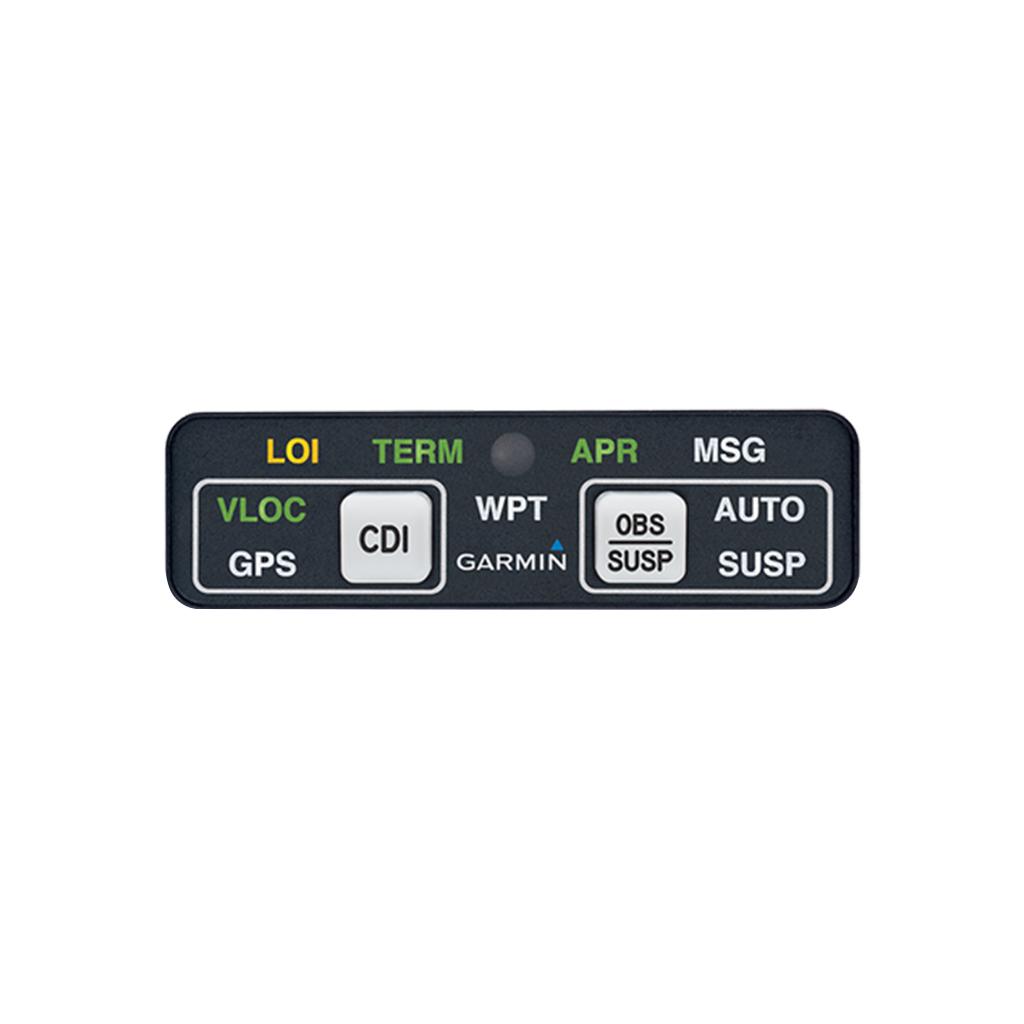

• Compatible with Garmin GTN 6XX/7XX WAAS Navigators
• Includes CDI and suspend mode switching, independent of OBS per new GTN requirements
• Compact, self-contained GPS annunciation control unit
• Automatic-dimming and daylight readable LED lighting
• Single cutout and locking D-subminiature connector reduces installation costs
• Quality Mil-Spec connector included
• TSO-C129 certified
• Qualified to RTCA DO-160 environmental specs
• Designed and built in Wichita, Kansas, USA
• One-year limited warranty
| General Information | |
|---|---|
| Part # | MD41-1510 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Product Weight | 0.3 lbs. |
| Product Dimensions | 3.5 x 3.5 x 0.8 in. |
| Specifications | |
|---|---|
| Certification | FAA TSO-C129 |
| Dimensions | 0.80”H x 2.73”W x 3.20”D |
| Environmental Qualification | RTCA DO-160 |
| Instrument Panel Mounting | Rear mount |
| Lighting Input | 28 VDC |
| Mating Connector | Positronic RD25F10JVL0 or equivalent (MCI P/N 7014517) |
| Orientation | Horizontal |
| Power Input | 28 VDC |
| Power Requirement | 0.20 A max |
| Weight | 0.26 lb. |
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
