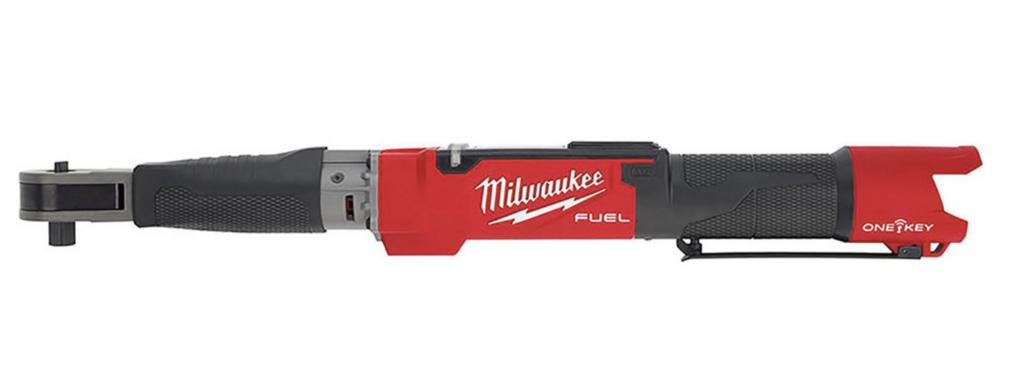

Milwaukee 2466-20 M12 FUEL 1/2" Digital Torque Wrench

The Milwaukee 2466-20 M12 FUEL 1/2" Digital Torque Wrench with ONE-KEY is engineered for the higher-torque demands of aircraft heavy maintenance, MRO overhaul work, and ground support equipment servicing. With a 12.5–150 ft-lb range on a 1/2" drive, it covers the fastener classes that matter most in aviation — wheel and brake assemblies, engine mount hardware, structural airframe bolts, and heavy GSE attachment points — combining POWERSTATE brushless motor speed with calibrated torque accuracy and ONE-KEY digital documentation in a single tool.

Digital Torque Documentation for Aviation MRO and Part 145 Environments

The 2466-20 is the right tool for maintenance operations where torque isn't just performed — it has to be proven. The ONE-KEY torque logging system records every fastener torque event and generates downloadable reports accessible via the ONE-KEY smartphone app. For quality managers and lead mechanics working under FAA AC 43.13, AS9100, or Part 145 repair station quality systems, this replaces handwritten torque logs with verified digital records tied to specific jobs and technicians. The included calibration certificate supports formal introduction into calibrated tool control programs, and Milwaukee's recommended recalibration interval of 5,000 cycles aligns with standard MRO toolroom maintenance schedules.

• ONE-KEY digital torque logging — exportable reports for QA, inspection, and airworthiness sign-off documentation
• Bluetooth tool tracking, remote lockout, and inventory management via ONE-KEY app — FOD risk reduction for controlled tool environments
• Included calibration certificate supports Part 145 and ISO-aligned tool introduction documentation
• 5,000-cycle recalibration interval aligns with standard MRO toolroom maintenance practices

1/2" Drive Precision Across the High-Torque Fastener Spectrum

The 1/2" drive and 12.5–150 ft-lb range of the 2466-20 cover the fastener applications where over-torque and under-torque failures carry the highest consequences — propeller flange hardware, landing gear strut fittings, wheel and brake assemblies, and structural attachment bolts. Accuracy holds at ±2% CW and ±3% CCW across the full scale, consistently meeting or exceeding ISO 6789 Type II Class B performance requirements. Adjustable run-down torque prevents over-torquing on the first pass, protecting aluminum housings, composite panels, and threaded titanium hardware where damage tolerances are narrow. All four notification modes — audible, LED, LCD, and vibratory — fire simultaneously when the target is reached, ensuring the alert is received in high-noise hangar and flight line environments.

• 12.5–150 ft-lb range on 1/2" pin detent drive — covers wheel, engine, structural, and heavy GSE fastener applications
• ±2% CW / ±3% CCW accuracy of full scale — meets ISO 6789 Type II Class B performance levels
• Adjustable run-down torque protects aluminum and composite structures from over-torque damage

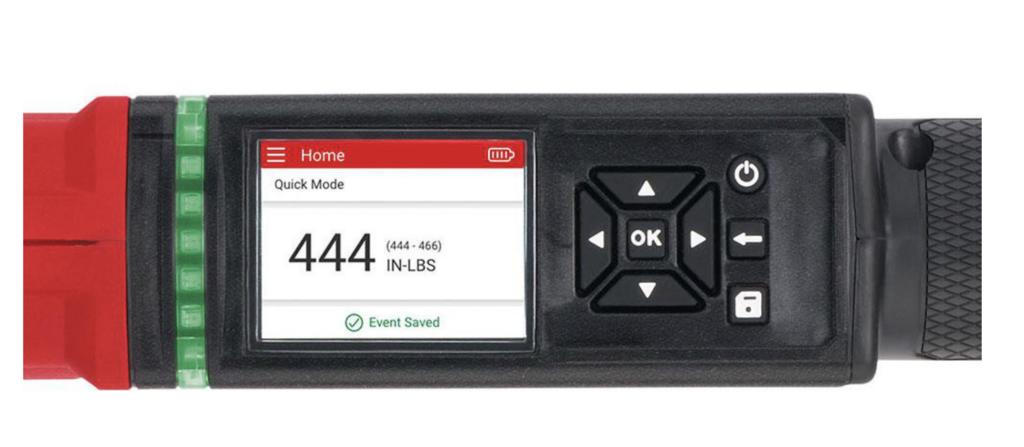

• Four simultaneous alert modes: audible, LED, LCD, vibratory — effective in high-noise maintenance environments
• Four measurement modes: ft-lb, in-lb, Nm, Kgcm — domestic and international maintenance specification coverage

Specifications

• Drive: 1/2 in., Pin Detent
• Torque Range: 12.5–150 ft-lb
• Accuracy: ±2% CW, ±3% CCW of full scale
• Speed: 0–100 RPM
• Length: 23.5 in. | Height: 2.81 in. | Width: 2.13 in.
• Weight: 5.7 lbs
• Power: 12V M12 REDLITHIUM (bare tool — battery not included)
• Housing: Aluminum
• Recalibration Interval: 5,000 cycles or after overload event
• Warranty: 5 Years

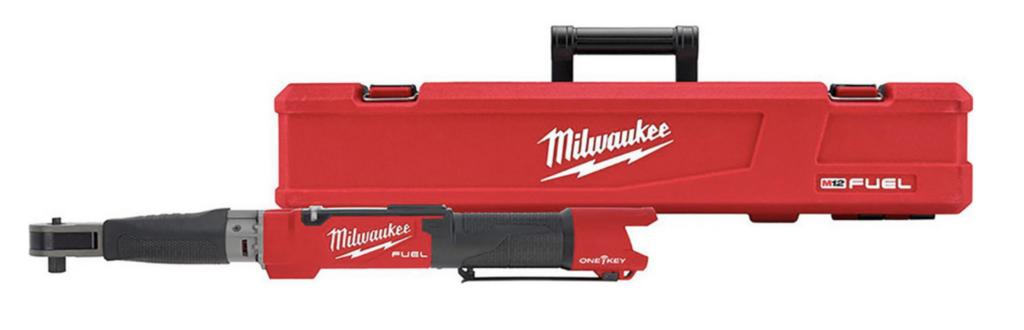

• Includes: Carrying Case, Calibration Certificate
