Nav-Aids APA97634HT-3-4-4 - Smart Probe Adaptor Hawk 128

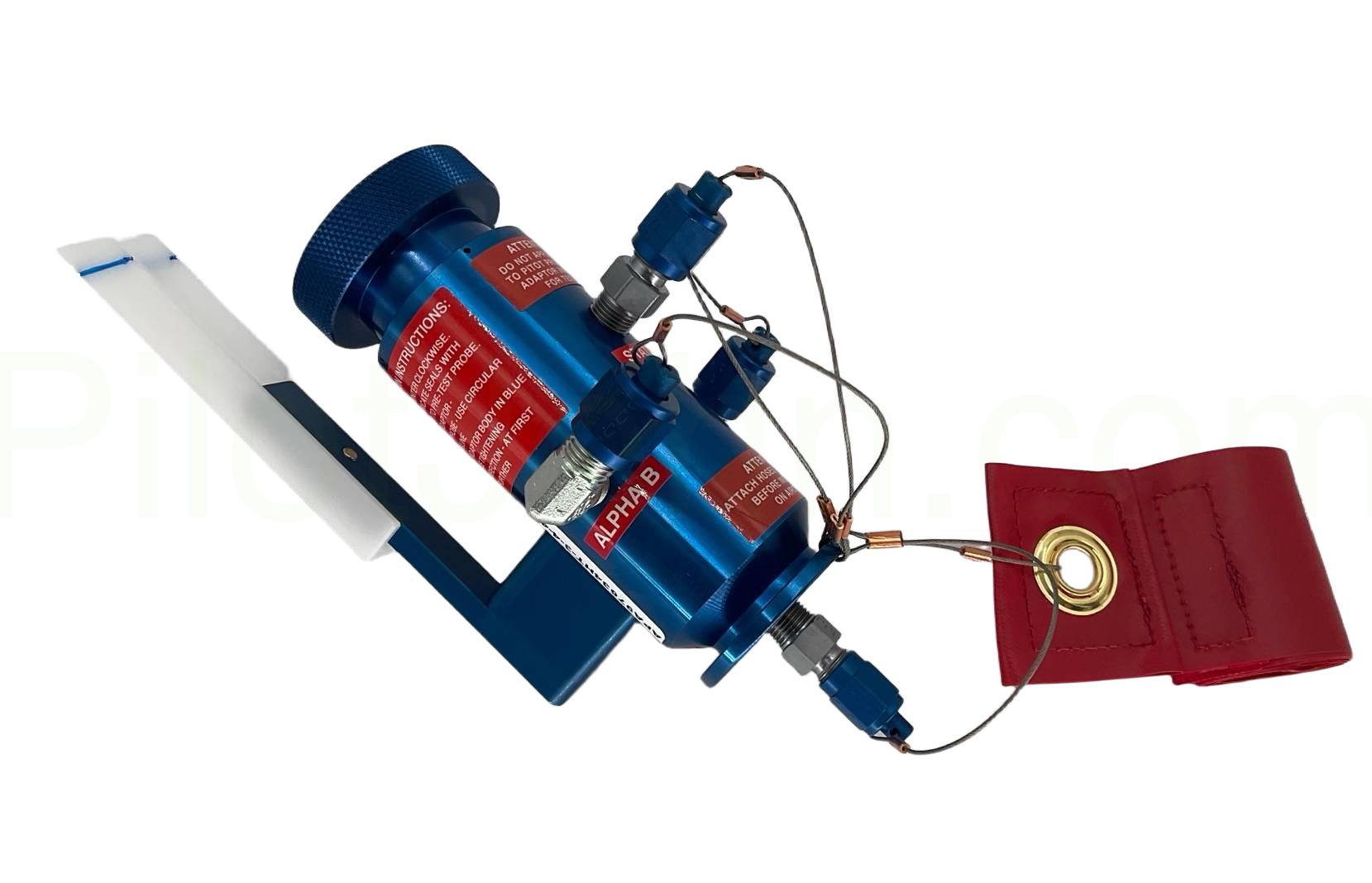

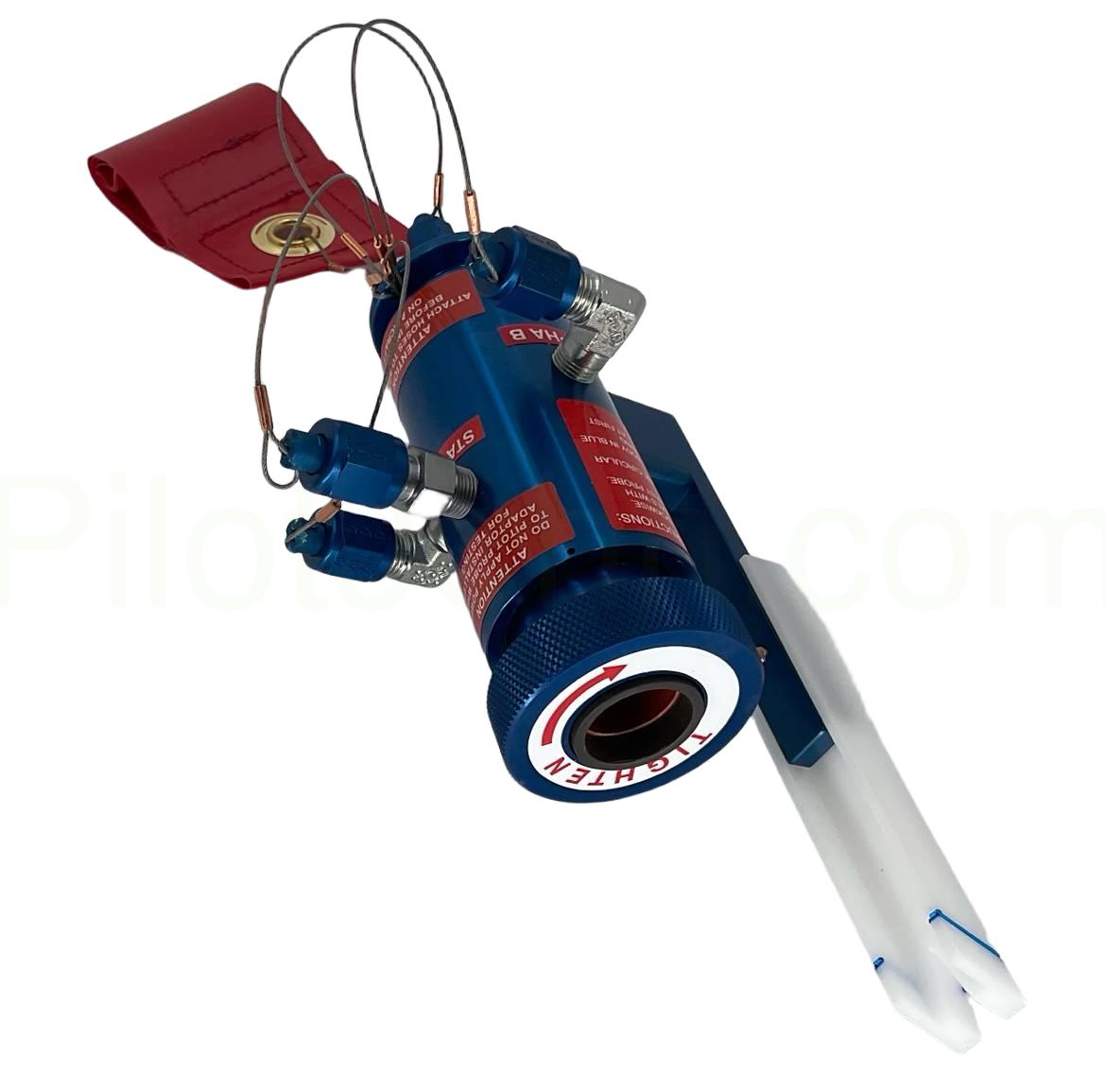

The Nav-Aids APA97634HT-3-4-4 is an alpha probe test adaptor engineered for the SMART probes on the BAE Systems Hawk 128 military jet trainer. Manufactured by Nav-Aids Ltd. of Montreal — the industry-leading manufacturer of pitot-static test adaptors and air data accessories kits — it enables MRO technicians and military aviation maintenance professionals to isolate and test the AOA (angle of attack), pitot, and static systems on the Hawk 128 separately or simultaneously, in compliance with the Hawk 128 Aircraft Maintenance Manual. Two units are required per aircraft, one for each nose-mounted SMART probe.

Key Features

• Alpha Probe Adaptor (APA) — purpose-built for SMART probes on the BAE Systems Hawk 128
• Tests AOA, pitot, and static systems independently or simultaneously in a single connection
• High-temperature (HT) seals and spacers factory-installed for durability in demanding maintenance environments
• Three hose connections: 3/16" AN primary (-3) and dual 1/4" AN secondary (-4, -4)
• Solid uni-body construction — no metal-to-metal contact between probe and adaptor body
• Internal seals and spacers are fully field-replaceable without special tools
• Guaranteed leak-free connection to 95,000 feet simulated test altitude
• "Remove Before Flight" streamer included as standard
• Component of the Nav-Aids H128-612 Air Data Accessories Kit for the Hawk 128

Specifications

• Part Number: APA97634HT-3-4-4
• Manufacturer: Nav-Aids Ltd.
• Aircraft Compatibility: BAE Systems Hawk 128
• Probe Type: SMART Probe (nose-mounted, AOA-Pitot-Static)
• Adaptor Type: Alpha Probe Test Adaptor (APA)
• Quantity Required: 2 per aircraft
• Seal Type: High-Temperature (HT) — replaceable seals and spacers
• Primary Hose Connection: 3/16" AN (-3)
• Secondary Hose Connections: 1/4" AN (-4), 1/4" AN (-4)
• Test Capability: AOA, Pitot, Static — isolated or simultaneous
• Test Altitude Rating: Leak-proof to 95,000 ft simulated altitude
• Matching Pre-Test Probe: PT421-7634
• Matching Seal Kit: SK7634HT
• Remove Before Flight Streamer: Included standard
• Warranty: 5-year manufacturer warranty
• Certifications: ISO 9001:2015, CE Marked
• Country of Manufacture: Canada

Applications

• AOA, pitot, and static system testing on BAE Systems Hawk 128 military jet trainers
• Isolated or simultaneous air data system verification per Hawk 128 Aircraft Maintenance Manual
• Military MRO depot and line maintenance use
• Use with Nav-Aids Pre-Test Probe PT421-7634 to verify adaptor and hose assembly integrity prior to aircraft connection
• Compatible with air data test sets using standard AN hose fittings
