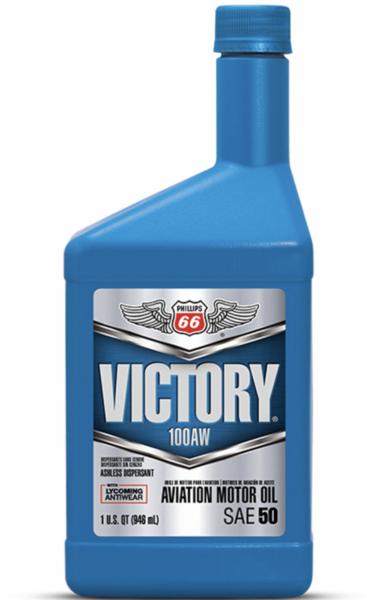

Phillips 66 Victory 100AW Aviation Oil - 1 Quart

The 1059152-QT 1 quart of the 100AW aviation oil.

What is Victory 100AW Aviation Oil?

Phillips 66® Victory Aviation Oil 100AW is an ashless dispersant, single-grade engine oil pre-blended with the proper concentration of antiscuff/antiwear additive (LW-16702) mandated by Lycoming Service Bulletins 446E and 471B and Service Instruction 1409C. It is recommended for use in opposed piston and radial piston aircraft engines where cam lifter wear is a concern.

The ashless dispersant formulation helps minimize the formation of engine sludge, varnish, piston deposits, and combustion chamber deposits, resulting in a much cleaner engine compared with the use of straight (nondispersant) mineral oils. This oil has a high viscosity index and low pour point compared with many other single-grade aircraft engine oils, allowing its use over a wide temperature range.

Victory Aviation Oil 100AW is FAA approved as an alternate method of compliance to AD80-04-03 R2, paragraph b.1.

Benefits of Phillips 66 Victory 100AW

• Ashless dispersant helps minimize engine sludge and varnish deposits for a cleaner engine
• Pre-blended with Lycoming-approved antiwear additive
• High fi lm strength for protection against wear and piston scuffing
• High viscosity index and low pour point for use over a wide temperature range
• Protects against rust and corrosion
• Formulated with the same high-quality base oils as used in Phillips 66 X/C® Aviation Oil

Applications of Phillips 66 Victory 100AW

• Opposed piston aircraft engines, especially where cam lifter wear is a concern Victory Aviation Oil 100AW meets the requirements of:
  • Avco Lycoming Material Specification No. 301G
  • Pratt & Whitney Service Bulletin No. 1183 Rev. U
  • SAE Standard J1899
  • Teledyne Continental Material Specification MHS-24B
  • U.S. Military Specification MIL-L-22851D (obsolete) for additive treatment QPL approval number: D07L2-50

Specifications of Phillips 66 Victory 100AW

• SAE Grade 50
• Gravity, °API 27.0
• Specific Gravity @ 60°F 0.893
• Density, lbs/gal @ 60°F 7.44
• Color, ASTM D1500 3.0
• Flash Point (COC), °C (°F) 255 (491)
• Pour Point, °C (°F) -27 (-17)
• Viscosity, Kinematic cSt @ 40°C 189 cSt @ 100°C 19.5
• Viscosity Index 118
• Acid Number, ASTM D664, mg KOH/g 0.04
• Ash Content, SAE J1787, wt % 0.04
• Copper Corrosion, ASTM D130 Pass
• Foam Test, ASTM D892 Pass
