(see detailed engine list below)
KEY BENEFITS:

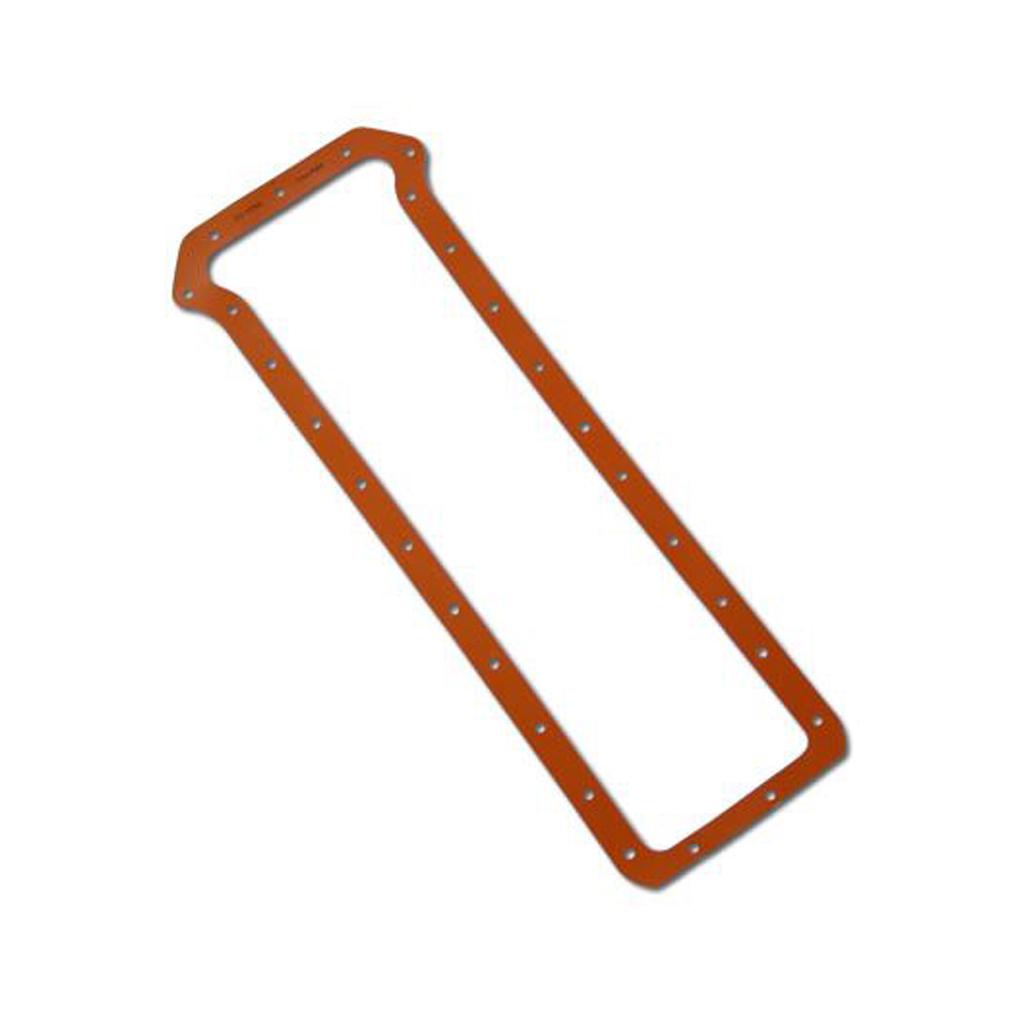

• Real Gaskets silicone rubber gaskets are made from aerospace mechanical grade AMS silicone and designed to withstand temperatures up to 400 degrees Fahrenheit.
• Therefore, they will not break down and deform or crack up like cork or neoprene.
• Real Gaskets gaskets seal uneven and warped surfaces and eliminate corrosion.
• Gaskets are 100% reusable.
Fits: Franklin Engines 6A4-145-A3; 6A4-150-B3; 6A4-165-B3, 6A-335-B, -B1; 6V4-178-B33; 6V4-200-C32, -C33; 6A-350-C1, -C2; 6V335-A, -B; 6VS-335-A, -B, -A1A, -A1B
Gasket is 1/16″ thick silicone.
FAA-PMA Approved
Reusable.
INSTALLATION AND MAINTENANCE:
1. All surfaces must be clean and dry, no lubrication of any type. This includes the threaded holes in the case.
2. INSTALL GASKET – DRY
TORQUE TO 15 INCH POUNDS. TORQUE gradually around and across cover to pull down evenly over the entire cover.
DO NOT OVER-TIGHTEN – over-tightening makes the gasket bulge or squeeze out. If this happens, then back off on the torque.
3. Perform engine run and check for leaks.
4. IF there is a leak, DO NOT CONTINUE TO TIGHTEN. This will only make the leak worse – Remove the gasket and examine its condition. If it is still serviceable, wash it briefly in hot soapy water, rinse & dry off. RE-INSTALL using the above instructions.
5. TO REUSE: the gasket, clean as described in Step 4.
TO REUSE GASKET:
• Wash gasket in hot soapy water.
• Rinse thoroughly and dry all surfaces.
• Re-install using the above installation instructions.
Proudly made in the USA.
| General Information | |
|---|---|
| Part # | RG-10366 |
| Manufacturer | Real Gaskets |
| Shipping Information | |
|---|---|
| ECCN | 9A991.d |
