The Red Box RBI9300 Avionics Measurement Supply Kit is a streamlined solution for avionics technicians requiring dedicated electrical measurement and testing tools. Packed in a compact, durable case, this kit ensures mobility and precision for bench work or on-aircraft diagnostics.
Key Features
- Focused set of tools and testers selected for avionics troubleshooting and calibration tasks.
- Compact case improves portability between hangars, labs, and line operations.
- Designed for delicate work involving circuit boards, harnesses, and avionics systems.
Specifications
- Part Number: RBI9300
- Tool Count: Measurement-focused
- Measurement: Imperial and Metric
- Case Type: Portable hard case
Ideal for avionics specialists managing fleet upgrades, wire bundle integrity checks, or bench repair diagnostics.
| General Information | |
|---|---|
| Part # | RBI9300 |
| Manufacturer | Red Box |
| Spec Sheet 1 | View Spec Sheet |
| Shipping Information | |
|---|---|
| HTS | 8206000000 |
| ECCN | EAR99 |
Customers also viewed
AIRCRAFT COMPATIBILITY
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The RBI9300 kit contains 68 pieces of avionics-specific and general-purpose test and measurement tools designed for aircraft servicing. It includes a high-performance insulation multimeter, a variety of Aero Leads (male/female, different sizes and colors), cable assemblies, crocodile clips, couplers, spike prods, BNC/TNC adapters, and patch cables. These tools are essential for accurate testing and diagnostics in avionics maintenance tasks.

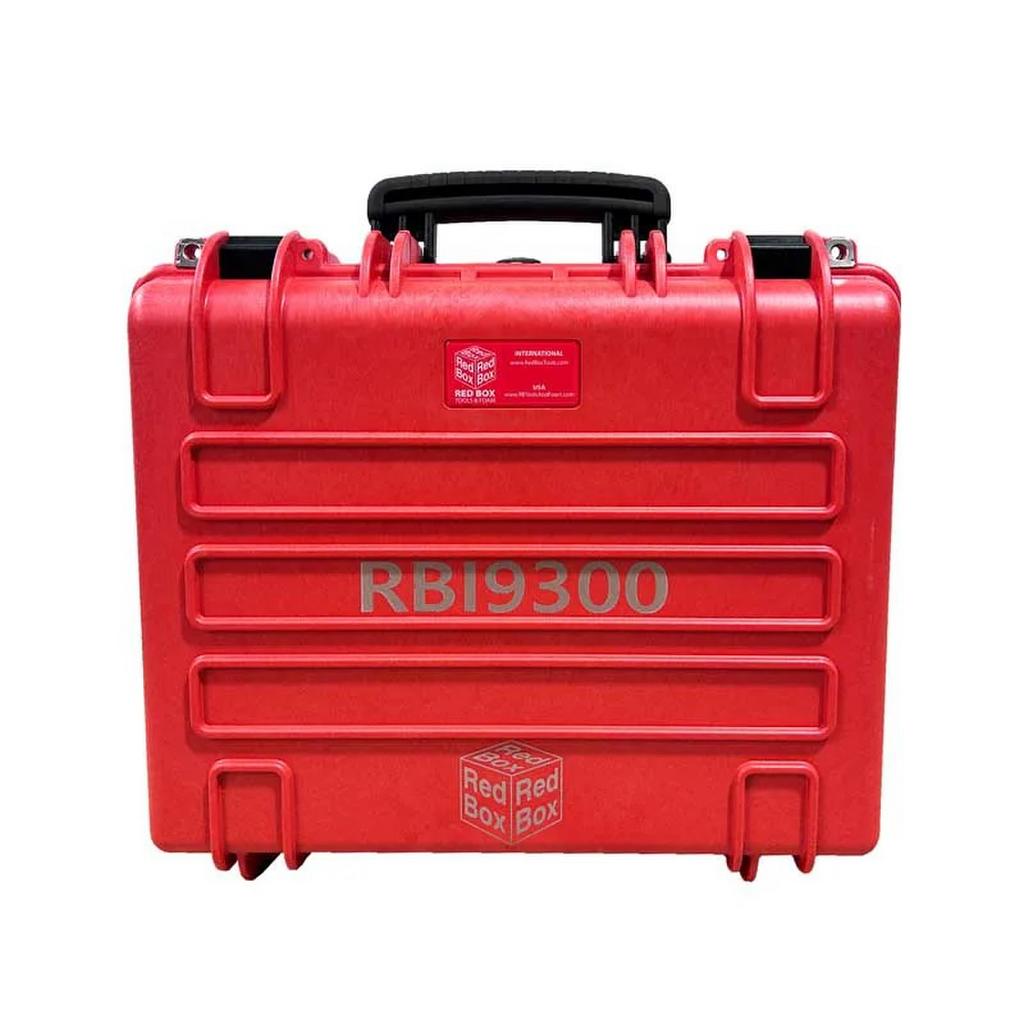

Yes! The case is made from rugged polypropylene, specifically built for the demanding conditions of aviation maintenance environments. It’s resistant to dents, scratches, shock, water, and dust and even remains afloat if dropped in water. This level of protection ensures your avionics testing tools stay safe and functional in hangars, on ramps, or in transit.
The RBI9300 kit is compact and lightweight, measuring 19.3” x 7.9” x 8.3” (49 x 20 x 21 cm) and weighing only 15.4 lbs (7 kg). Its manageable size and integrated carry handle make it easy to transport between aircraft, workstations, or remote locations. This portability makes it ideal for both mobile technicians and fixed-base operators.
The RBI9300 supports a wide range of avionics diagnostics, electrical testing, and continuity checks. With its assortment of insulated test leads, BNC adapters, safety plugs, and multimeter, it’s ideal for verifying signal integrity, measuring resistance, and ensuring compliance with maintenance standards. It helps technicians troubleshoot issues quickly and safely during aircraft maintenance operations.
The RBI9300 includes a high-performance insulation multimeter that supports a range of functions essential to avionics maintenance. It allows technicians to perform continuity checks, insulation resistance testing, and voltage measurements – all critical for diagnosing issues in aircraft electrical systems.

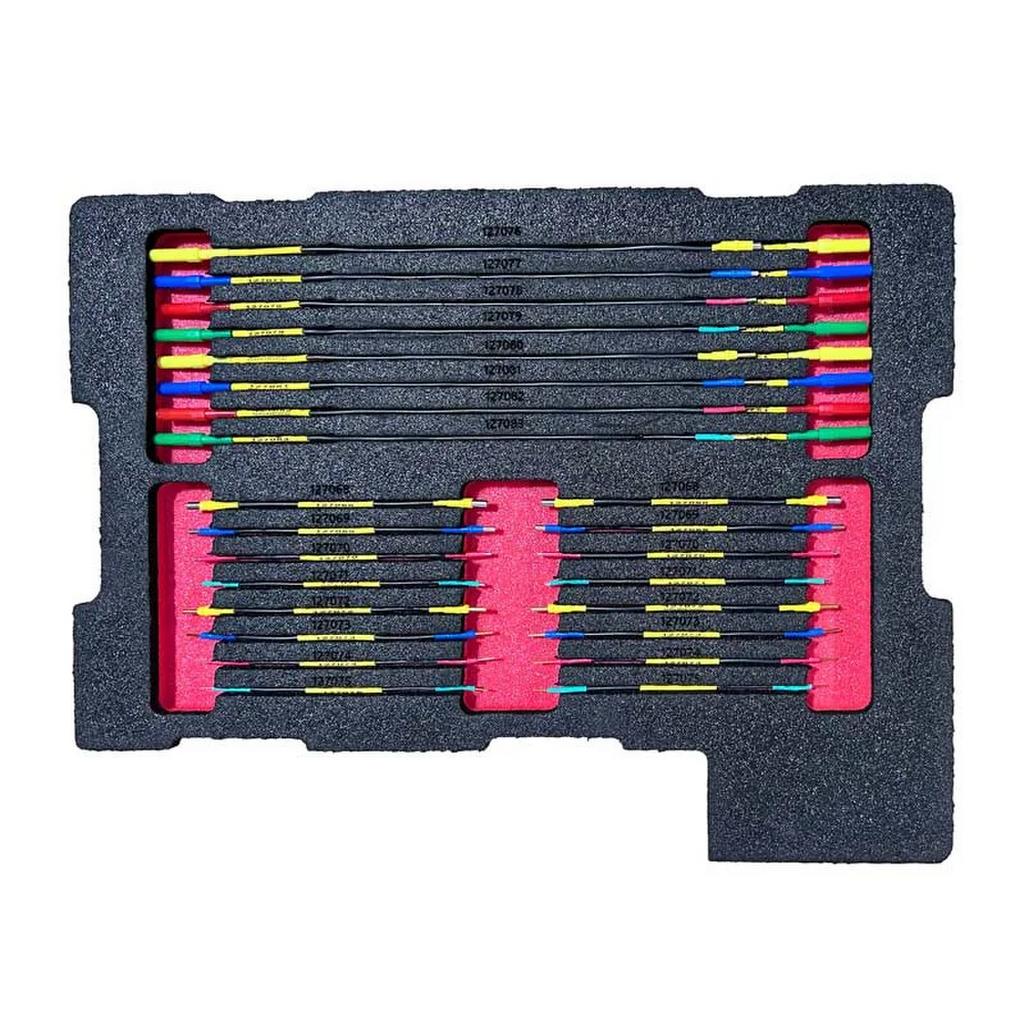

The color-coded Aero Leads in the RBI9300 enhance workflow efficiency and reduce errors during testing. Each lead size and type is visually distinguishable, simplifying setup and improving safety when working in complex or cramped avionics bays. This user-friendly feature supports better chemical and electrical management practices.
Definitely! The RBI9300 is well-suited for FAA-certified Part 145 repair stations and MRO operations that require reliable, portable test tools. Its rugged design, comprehensive range of components, and suitability for regular inspection work make it a dependable option for professional aviation environments.
Yes! The case features custom foam cutouts and compartmentalized tool slots that keep each component secure and easy to access. This organization improves productivity by reducing search time and ensures that tools remain protected during transport and use.
The RBI9300 comes with an array of adapters, including BNC male/female to stacking banana plugs, binding post jacks, and TNC-to-BNC connectors. These adapters expand the kit’s compatibility across various avionics interfaces, making it easier to adapt to the testing needs of different aircraft systems.
