Red Box RBI9693T Avionics Measurement and Maintenance Tool Kit

The RBI9693T is built specifically for avionics testing, diagnostics, and maintenance, making it ideal for both field service and in-hangar repair operations. This comprehensive kit includes tools and equipment to support insulation measurement, electrical testing, crimping, wire insertion/removal, and connector servicing. Its layout and contents support both routine avionics maintenance and complex troubleshooting tasks.

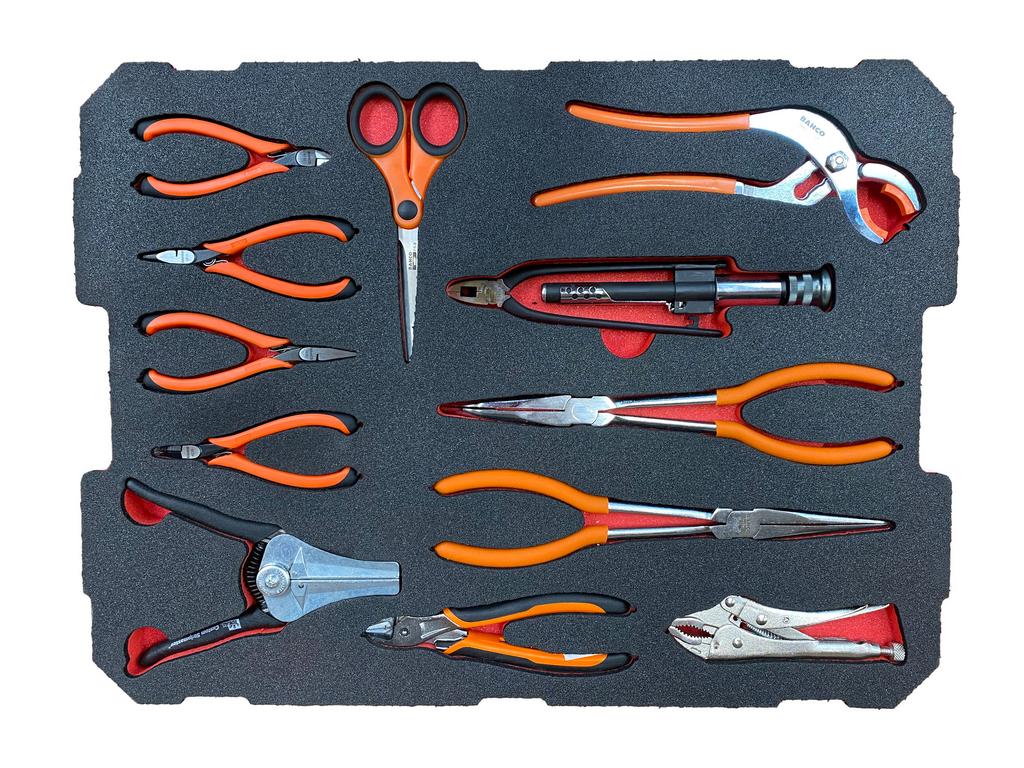

The Red Box RBI9693T includes a total of 330 individual tools and components. These include 68 specialized test and measurement items and 262 hand tools from respected brands like BAHCO and DMC. This well-rounded tool set is designed to meet the diverse needs of avionics professionals across the general and commercial aviation sectors.

This toolkit features a Fluke 1587 high-performance insulation multimeter, capable of handling various aviation voltage and resistance ranges with high precision. In addition to measuring insulation resistance, it includes functions for continuity, frequency, capacitance, temperature, and diode testing. The set also includes BNC coax adapters, silicon test leads, and voltage detection tools to meet demanding avionics test protocols.

Yes! The RBI9693T is compatible with both analog and digital avionics systems. It includes modern diagnostic tools like the Fluke 1587 multimeter, which supports digital insulation testing and offers PC connectivity via Fluke Connect. These features allow technicians to perform accurate testing and easily record and transfer data.

Safety is addressed through the use of insulated test leads, certified crimping tools, and a dedicated “Tool Control” foam layout that ensures no tools are misplaced. The tool control foam enhances visual tool accountability, minimizing the risk of foreign object debris (FOD) damage during maintenance tasks. The kit also includes non-contact voltage detectors for added user safety.

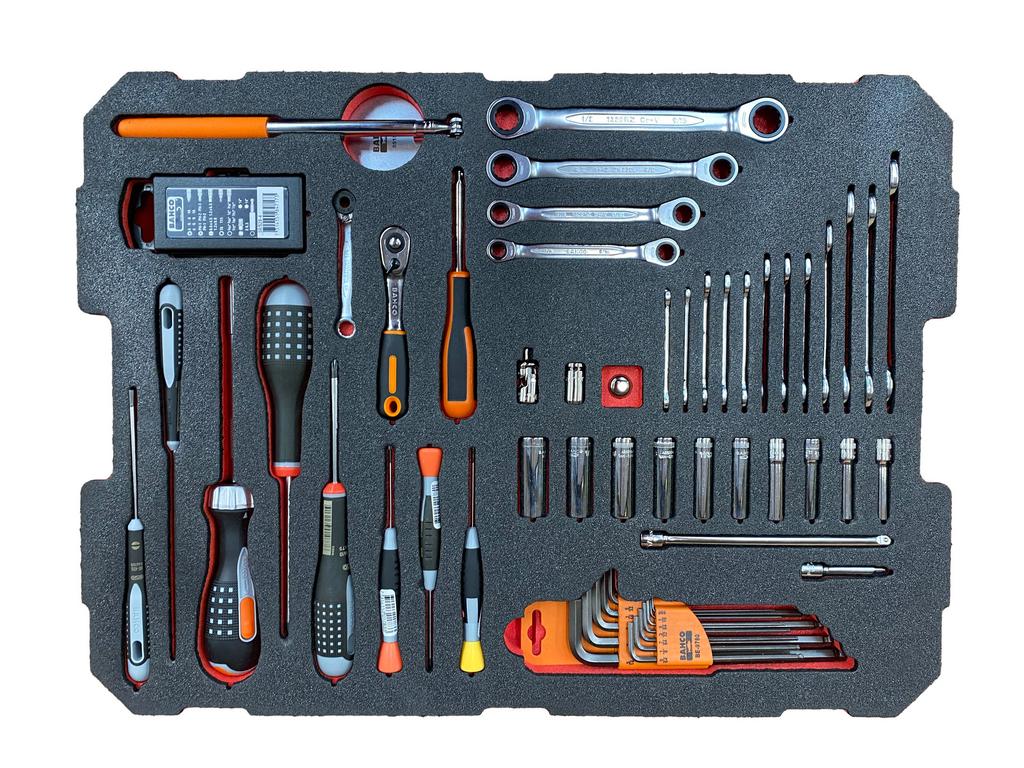

Each component in the RBI9693T kit has its own labeled space within the custom foam insert trays, which are color-coded for fast tool identification. This setup enables quick visual checks for missing tools and speeds up setup and breakdown times on the job. Color-coded tool rolls are included for specific lead storage to help keep the workspace tidy and efficient.

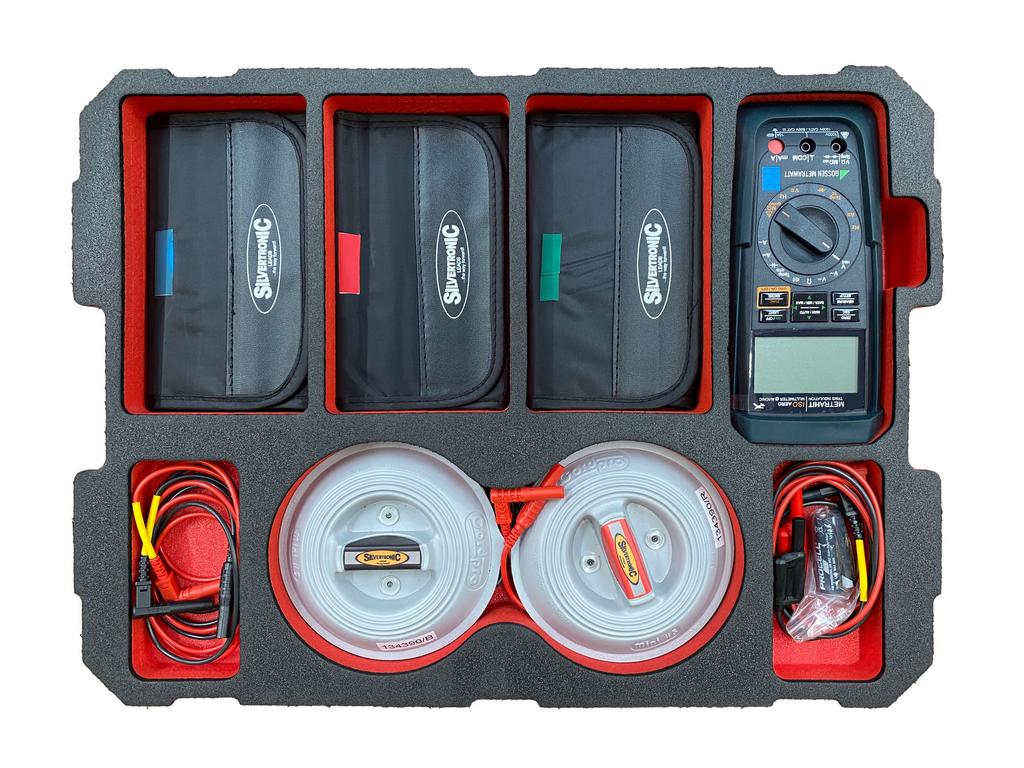

The kit includes a comprehensive selection of Aero Leads, silicon test leads in multiple lengths, 4mm safety plug adapters, BNC coaxial leads, and crocodile clips. These components support a wide range of diagnostic interfaces across general aviation and commercial aircraft platforms. All adaptors are neatly stored in designated foam cavities for quick access and visual control.

Yes, insulation resistance testing is a key function of the Fluke 1587 insulation multimeter included in the kit. It offers test voltages from 50V to 1,000V and can measure resistance up to 2GΩ, making it highly useful for checking wire integrity and insulation performance in avionics systems.

Absolutely! The kit includes a full complement of MIL-SPEC insertion and removal tools (e.g., M81969 series), allowing technicians to handle various connector pin types used in aviation. These tools are essential for efficient wiring work and minimizing connector damage during service.

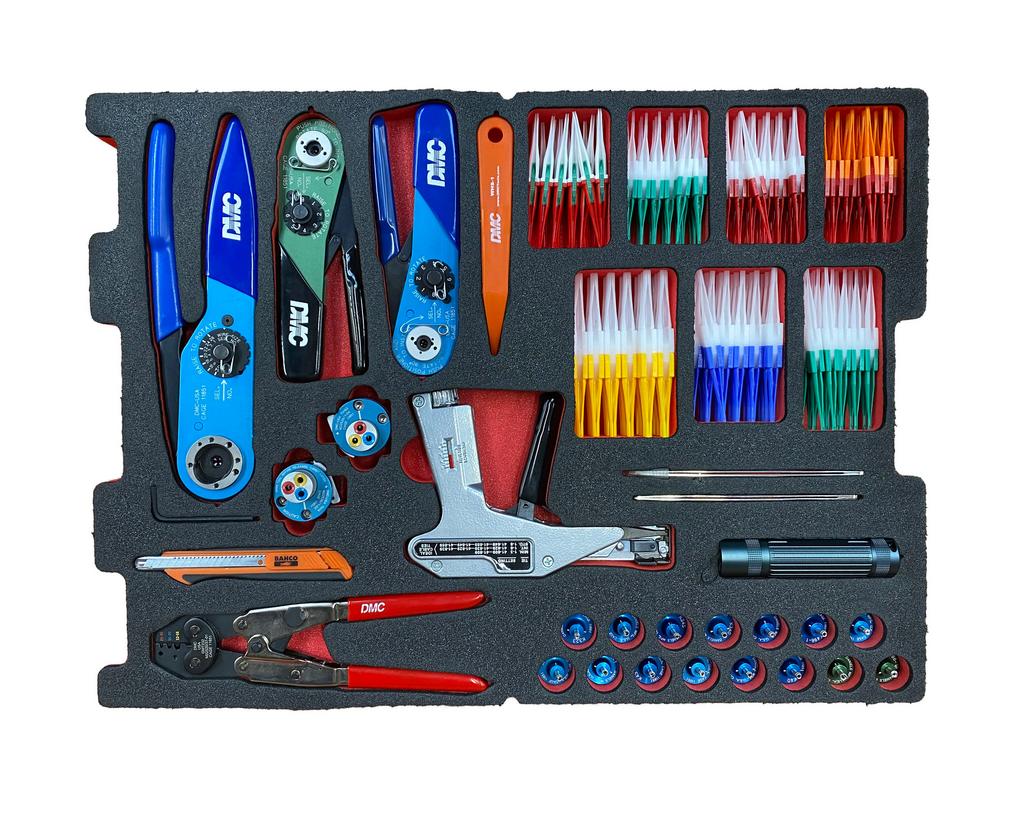

The RBI9693T provides a selection of crimp tools and interchangeable turret heads suitable for a wide range of wire gauges and connector types. It includes certified M22520 series crimp tools, positioners, and wire strippers for precise termination. This supports high-reliability crimps required in avionics systems.

Yes! The compact yet comprehensive layout of the RBI9693T makes it highly portable for field operations. It’s housed in a durable case designed to withstand transport and rugged environments, and the labeled foam inserts help reduce setup time during on-site avionics servicing.

The RBI9693T combines the test and measurement capabilities of the RBI9300 with the tool coverage of the RBI9600T, offering a more comprehensive solution. It’s ideal for technicians who require both diagnostic tools and mechanical avionics maintenance instruments in one portable kit.
