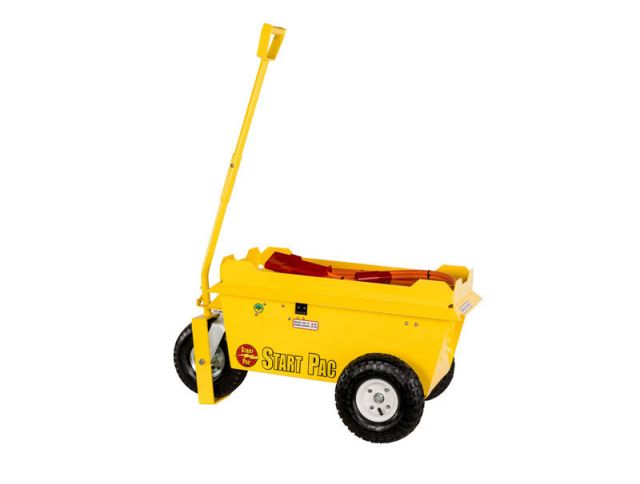

Start Pac 3328-175 Amp 28V Power Supply / Battery Pack

Start Pac 3328-175
Manufacturer: Start Pac
Part Number: 3328-175
Condition: New
Warranty: 1 Year Limited Warranty - View Details

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
28V - 200 Amp
28V Power Supply (105 Amps) / Portable Battery Pack
50Hz/60Hz, 600A Continuous / 1200A Peak Start
28V - 50 Amp
These ground power units are designed to perform starting, powering up aircraft systems and maintenance functions. When connected to AC power, the depleted batteries can be charged in a matter of hours with the built in power supply/battery charger.

The 3328 contains a full 28-volt portable battery pack for starting and a large power supply to provide a continuous current at 28.5 Volts DC for maintenance. This mobile GPU has a 175 amp power supply. This will satisfy the ground power requirements of most business jets, and includes on-board air conditioning for the 175 amp model.

The Model 3328-175 GPU is a combination power supply and battery pack.

Batteries

  • 52 Amp Hours at 10 Amp rate
  • 28.5 Volt DC-30.5 Volts at rest
  • Sealed cells non-hazardous
  • Valve regulated high amperage output lead acid
  • 3200 Peak amps

Power Supply/Charger

  • 175 Amps DC continuous output @ 28.5 V
  • Battery recharge time: 6 hours
  • AC input – 208 to 240 Volts ONLY

Dimensions

  • L 38” x W 21” x H 20”/ 97cm x 53cm x 51cm
  • Handle height: 48”/ 122cm
  • 241 Lbs./ 109.31 Kilos complete

Limitation

  • 250 Amps maximum continuous DC load

The portable GPU is rated at 2800 peak starting amps. When plugged into a 220 single-phase AC power, the built-in power supply will provide 175 amps continuous 28.5 Volts DC current. The GPU is a full 28.5-Volt unit and will give faster, cooler starts on all turbine starting engines. The power supply is large enough to power aircraft on-board air conditioning systems continuously.

The 3328 weighs 241 lbs./109.31 kilos and is pulled by hand or tug.

Always recharge the GPU battery packs soon after use until the green light appears. Once charged, it is not necessary to leave unit plugged in. If heater is installed, turn unit off but leave plugged in.

Avoid discharging the batteries completely as damage to the cells can result.

Always recharge batteries soon after use.

BATTERY DISCONNECT: When operating the continuous power supply at 175 amps and below, activate the battery disconnect. Since the 28.5 batteries actually read 30.5 Volts at rest, leaving the battery disconnect connected will deplete the batteries nearly 50% before their voltage reaches 28.5 Volts. Thus in this situation only one half of the battery capacity will be available for engine starting. By keeping the batteries separated from the continuous power supply, you will have full battery capacity for engine starts. If you need more than 175 continuous amps, then use the battery disconnect and the batteries will make up any amperage needed.

There are approximately thirty 110 volt and thirty 220 volt NEMA plugs in use.Also, customers have various receptacle at their hangars and MRO facilities and may require specific AC cord length to meet their requirements. Due to these facts, we do not automatically provide AC power cords. If you provide the NEMA plug number and specify the AC power cord length you require we will build a cord to be shipped with your unit for a small fee.

NOTE- PLEASE USE #12 or Larger AC EXTENSION CORD
Shipping Information
Pkg. 1 Weight328 lbs.
Pkg. 1 Dimensions41 in. x 25 in. x 25 in.
Parts

We sell parts for the 3328-175 and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

Renting

We provide short-term and long-term rentals for the 3328-175. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 3328-175 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
