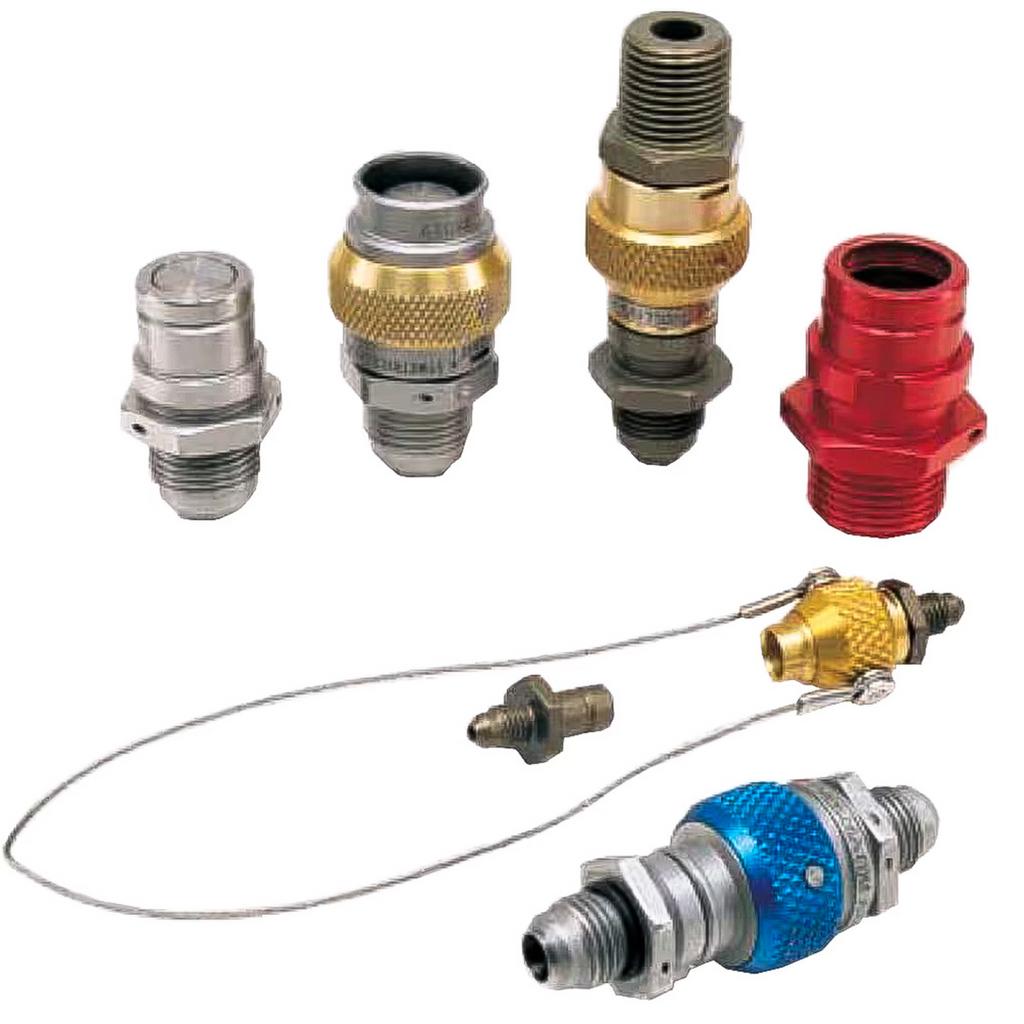

Parker Stratoflex 25416-16A-N15M - Slide-Lok QD Coupling - Hydraulic Red Oil, 5606/83282
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Parker 25416-16A-N15M Quick-Disconnect Coupling is engineered for reliable, high-performance fluid connections in hydraulic systems using Red Oil (5606/83282). Constructed from durable stainless steel, this coupling provides secure and efficient connections, designed to withstand high-pressure conditions while minimizing fluid spillage and air inclusion during disconnection. It is ideal for use in aerospace, industrial, and commercial hydraulic systems, where reliability and cleanliness are key.
Key Features
- High Pressure Capability: Rated for a maximum operating pressure of 1000 psig and a burst pressure of 2500 psig, this coupling is built to handle demanding hydraulic systems.
- Fluid Compatibility: Specifically designed for use with Red Oil (5606/83282) hydraulic fluid, making it ideal for aerospace and industrial hydraulic systems.
- Efficient Fluid Handling: The self-sealing valve minimizes air inclusion and fluid spillage during disconnection, ensuring clean and secure connections each time.
- Corrosion-Resistant Stainless Steel: Built with stainless steel for superior strength, corrosion resistance, and long-lasting durability.
- Compact Design: The 1-inch inlet size and 3.00-inch overall length make this coupling perfect for installations with space limitations, while maintaining high performance and ease of use.
Applications
- Aerospace hydraulic systems using Red Oil (5606/83282)
- Industrial and commercial hydraulic systems
- High-pressure fluid circuits requiring secure, leak-free connections
Specifications
- Part Number: 25416-16A-N15M
- Line Size (Inlet): 1 inch
- Body Material: Stainless Steel
- Fluid Type: Hydraulic Fluid (Red Oil, 5606/83282)
- Maximum Operating Pressure: 1000 psig
- Minimum Operating Pressure: -5 psig
- Proof Pressure: 1500 psig
- Burst Pressure: 2500 psig
- Maximum Fluid Temperature: 275°F
- Minimum Fluid Temperature: -65°F
- Maximum Spill Volume at Disconnection: 0.008 cc
- Maximum Air Inclusion: 0.01 cc
- Maximum Pressure to Connect: 30 psig
- Overall Length: 3.00 inches (hex to hex)
- Outside Diameter: 2 inches
- Fitting Type: SAE AS4395E16
Why Choose Parker 25416-16A-N15M?
- Durable Construction: Stainless steel ensures long-lasting performance, providing excellent strength and resistance to corrosion.
- Efficient Fluid Management: Minimizes fluid spillage and air inclusion during disconnection, improving system efficiency and cleanliness.
- Compact Design: Ideal for installations in tight spaces without compromising on performance.
- Versatile Fluid Compatibility: Works with Red Oil (5606/83282) and other compatible hydraulic fluids, offering flexibility for a wide range of systems.
| General Information | |
|---|---|
| Part # | 25416-16A-N15M |
| Manufacturer | Parker Stratoflex |
| Specifications | |
|---|---|
| Fitting Type | SAE AS4395E16 |
| Fluid Type | Hydraulic Fluid (Red Oil, 5606/83282) |
| Line Size - Inlet | 1 inch |
| Maximum Fluid Temperature (F) | 275 |
| Maximum Operating Pressure (psig) | 1000 |
| Outside Diameter (inch) | 2 |
| Overall Length (inch) | 3.00 (hex to hex) |
