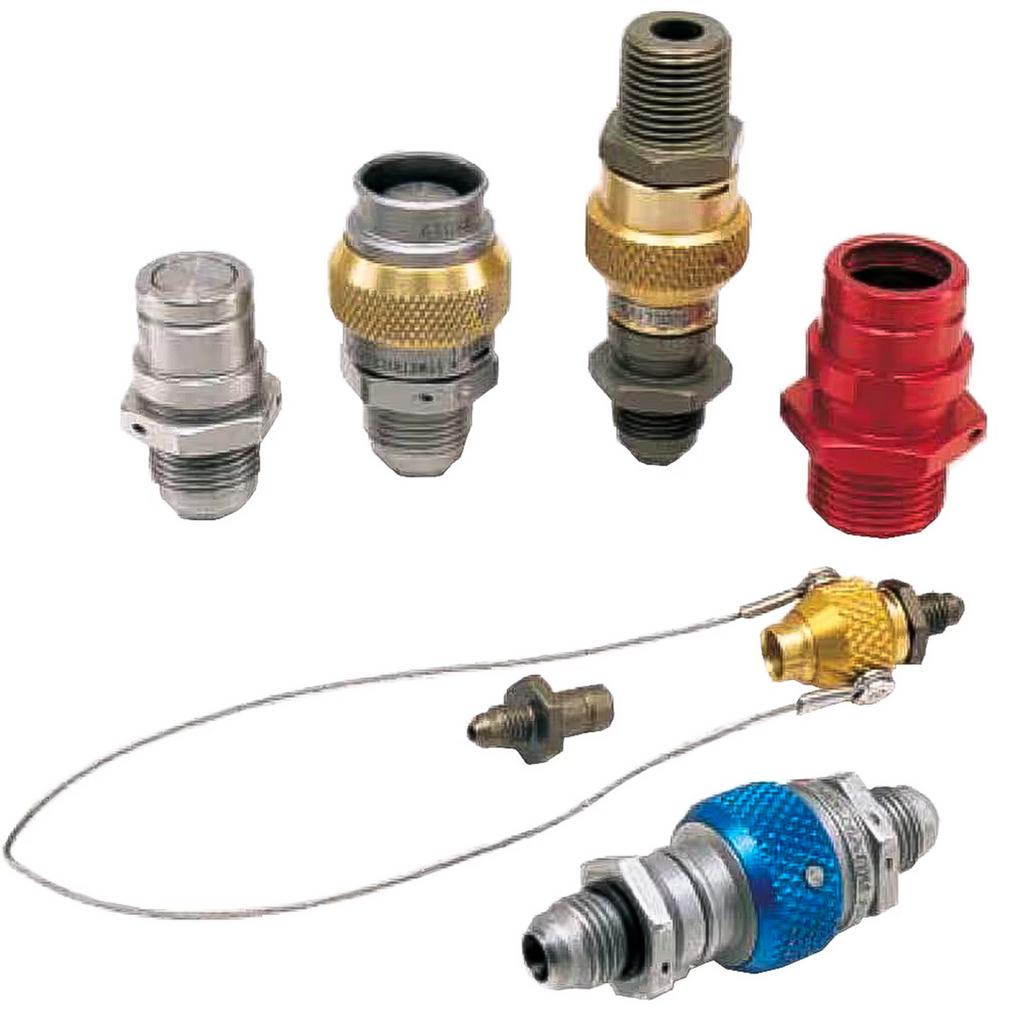

Parker Stratoflex 5104-04B-N12 - Slide-Lok QD Coupling - Hydraulic Red Oil, 5606/83282

The Parker 5104-04B-N12 Quick-Disconnect Coupling is designed for reliable and efficient fluid handling in hydraulic systems using Red Oil (5606/83282). Constructed from durable stainless steel, this coupling ensures secure connections under high-pressure conditions. Its self-sealing valve minimizes fluid spillage and air inclusion during disconnection, making it ideal for a wide range of applications in aerospace, industrial, and commercial systems.

Key Features

• High Pressure Rating: With a maximum operating pressure of 4000 psig and burst pressure of 10,000 psig, the 5104-04B-N12 coupling is designed to perform reliably under demanding conditions.
• Fluid Compatibility: Specifically designed for use with Red Oil (5606/83282), this coupling is perfect for hydraulic fluid systems in aerospace and industrial applications.
• Efficient Fluid Handling: The self-sealing valve reduces air inclusion and fluid spillage during disconnection, ensuring clean and efficient operation.
• Durable Stainless Steel Construction: Made from stainless steel for superior corrosion resistance and long-lasting performance in harsh environments.
• Compact Design: The 1/4 inch inlet and 1.55-inch overall length make this coupling ideal for installations where space is limited without compromising on performance.

Applications

• Aerospace hydraulic systems using Red Oil (5606/83282)
• Hydraulic fluid systems in commercial and military applications
• High-pressure fluid circuits requiring secure, leak-free connections

Specifications

• Part Number: 5104-04B-N12
• Line Size (Inlet): 1/4 inch
• Body Material: Stainless Steel
• Fluid Type: Hydraulic Fluid (Red Oil, 5606/83282)
• Maximum Operating Pressure: 4000 psig
• Minimum Operating Pressure: -5 psig
• Proof Pressure: 6000 psig
• Burst Pressure: 10,000 psig
• Maximum Fluid Temperature: 275°F
• Minimum Fluid Temperature: -65°F
• Maximum Spill Volume at Disconnection: 0.002 cc
• Maximum Air Inclusion: 0.005 cc
• Maximum Pressure to Connect: 400 psig
• Overall Length: 1.55 inches (hex to hex)
• Outside Diameter: 0.44 inches
• Fitting Type: SAE AS4396E04

Why Choose Parker 5104-04B-N12?

• Durable Construction: Stainless steel provides long-lasting durability and resistance to corrosion in tough environments.
• Efficient Fluid Management: Minimizes fluid spillage and air inclusion during disconnection, ensuring smooth, clean operation.
• Compact and Reliable: Ideal for installations in tight spaces while still delivering high performance and reliability.
• Versatile Fluid Compatibility: Specifically designed for hydraulic systems using Red Oil (5606/83282), ensuring optimal performance and compatibility.
