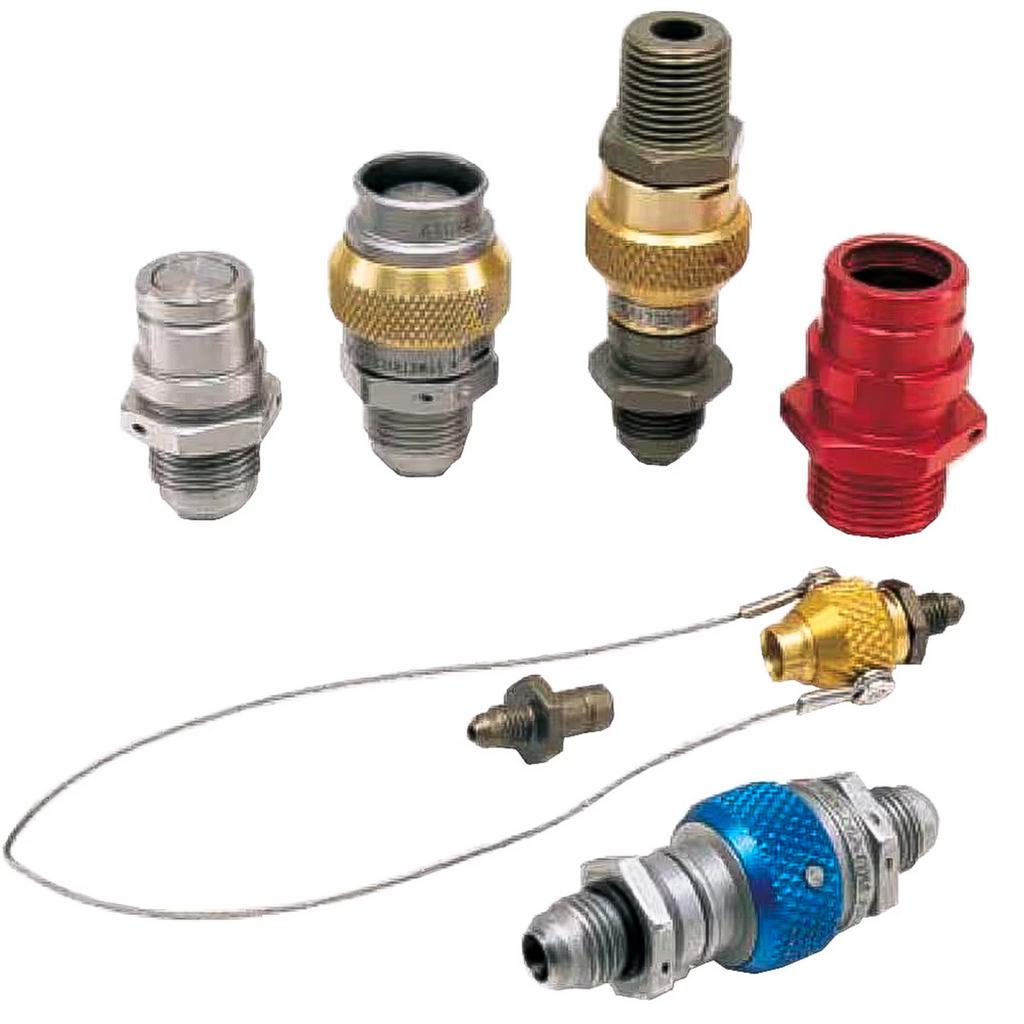

Parker Stratoflex 5104-04B-Y15 - Slide-Lok QD Coupling - Hydraulic, Fuel, PAO, Pneumatic

The Parker 5104-04B-Y15 Quick-Disconnect Coupling is a versatile and durable solution designed for high-performance fluid systems. Compatible with hydraulic, fuel, PAO, and pneumatic fluids, this coupling provides reliable, leak-free connections even in demanding high-pressure environments. The self-sealing valve minimizes fluid spillage and air inclusion during disconnection, making it ideal for aerospace, industrial, and commercial systems where efficiency, reliability, and cleanliness are critical.

Key Features

• High Pressure Rating: Rated for a maximum operating pressure of 4000 psig and burst pressure of 10,000 psig, this coupling is engineered to perform reliably in high-pressure systems.
• Fluid Compatibility: Designed for use with hydraulic, fuel, PAO, and pneumatic fluids, offering versatility for a wide range of applications.
• Efficient Fluid Handling: The self-sealing valve minimizes air inclusion and fluid spillage during disconnection, ensuring clean, secure connections.
• Durable Stainless Steel Construction: Made from stainless steel for superior strength, corrosion resistance, and long-lasting performance even in harsh environments.
• Compact Design: The 1/4 inch inlet and 1.55-inch overall length make this coupling ideal for installations with space limitations without sacrificing performance.

Applications

• Aerospace and industrial systems (commercial and military)
• Fluid systems using hydraulic, fuel, PAO, and pneumatic fluids
• High-pressure fluid circuits requiring secure, leak-free connections

Specifications

• Part Number: 5104-04B-Y15
• Line Size (Inlet): 1/4 inch
• Body Material: Stainless Steel
• Fluid Type: Hydraulic, Fuel, PAO, Pneumatic
• Maximum Operating Pressure: 4000 psig
• Minimum Operating Pressure: -5 psig
• Proof Pressure: 6000 psig
• Burst Pressure: 10,000 psig
• Maximum Fluid Temperature: 400°F
• Minimum Fluid Temperature: -40°F
• Maximum Spill Volume at Disconnection: 0.002 cc
• Maximum Air Inclusion: 0.005 cc
• Maximum Pressure to Connect: 400 psig
• Overall Length: 1.55 inches (hex to hex)
• Outside Diameter: 0.44 inches
• Fitting Type: SAE AS4396E04

Why Choose Parker 5104-04B-Y15?

• Durable Construction: Stainless steel provides excellent durability and resistance to corrosion, ensuring long-lasting performance in harsh environments.
• Efficient Fluid Management: Minimizes fluid spillage and air inclusion during disconnection, improving operational efficiency and cleanliness.
• Compact and Reliable: Ideal for installations with space constraints, offering high performance and reliability.
• Versatile Fluid Compatibility: Works with a wide variety of fluids, including hydraulic, fuel, PAO, and pneumatic fluids, offering flexibility for diverse applications.
