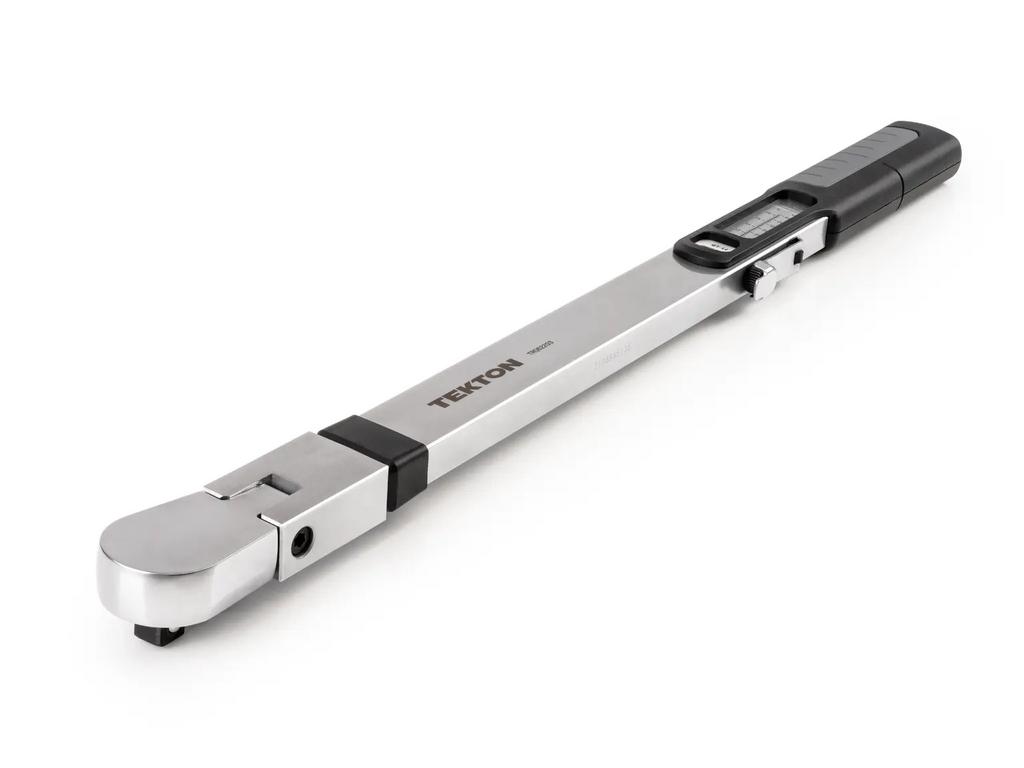

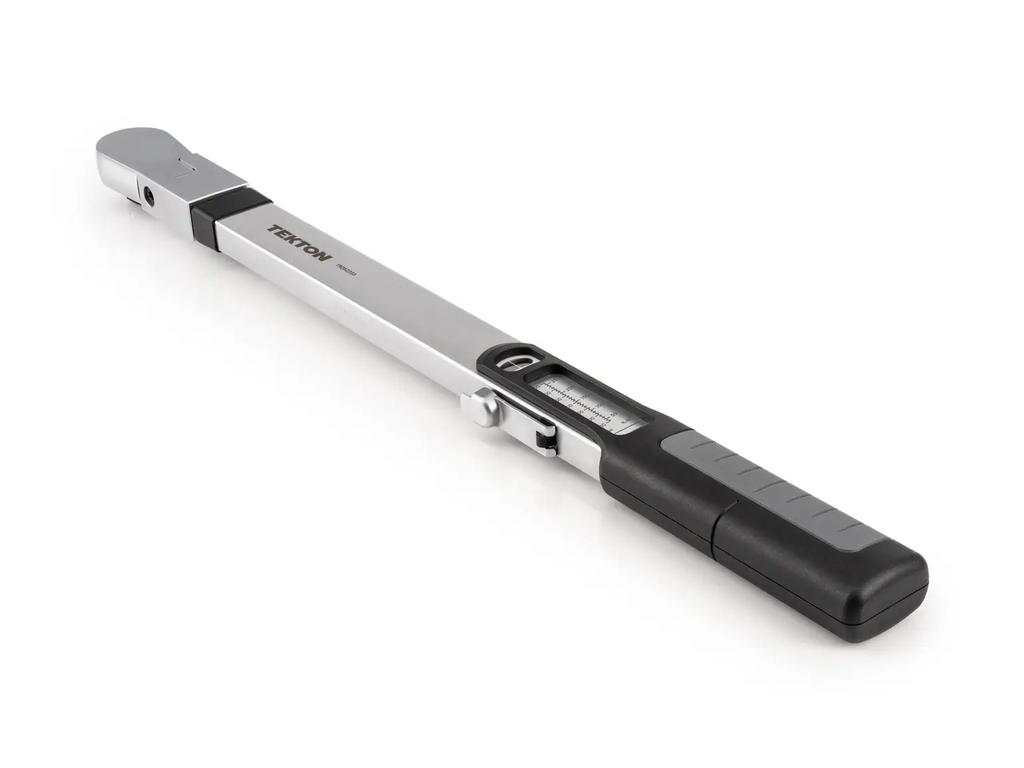

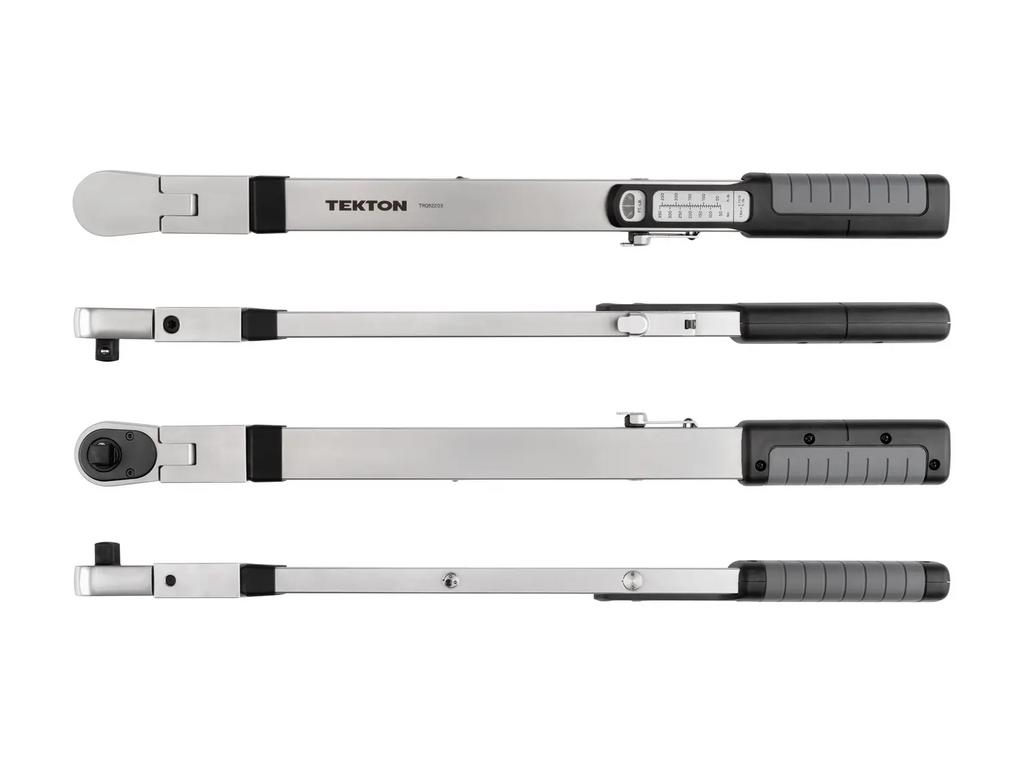

Tekton TRQ62203 - 1/2 in. Split Beam Torque Wrench

There is a problem in every high-volume MRO shop that no product listing addresses: a micrometer torque wrench left at its setting overnight. The shift ends. The wrench stays at 150 ft-lb. The spring inside is under compression for ten hours. Over months of repeated use-and-forget cycles, calibration drifts. The wrench that reads 150 ft-lb may be applying 157. The fastener is on the aircraft. The logbook is signed. The Tekton TRQ62203 — Tekton's best-selling split beam torque wrench — is engineered so that problem does not exist. It is a 1/2 inch drive 72-tooth flex head split beam torque wrench covering 40–250 ft-lb, and it has no internal spring tension at rest. Store it at any setting. Leave it there. Pick it up tomorrow — still accurate.

The split beam mechanism replaces a compressed spring with a deflecting anchor beam. When applied force reaches the set value, the anchor beam disengages from the main beam and produces a clean, unmistakable click. At rest, the wrench is in a neutral state regardless of where the thumbscrew is set. The flip-up locking cover secures the setting during use and keeps the adjustment knob recessed and protected from accidental changes mid-sequence. The 10° flex head gives clearance around the structural geometry of landing gear, engine mounts, and wheel assemblies where a fixed-head wrench requires a socket extension and a lever-arm torque correction calculation. The TRQ62203 eliminates both.

When your TRQ62203 needs recertification, Pilot John International's ISO 17025-accredited calibration laboratory issues a NIST-traceable certificate with full test documentation accepted by FAA Part 145 repair stations, Part 91/135 operators, and AS9100/ISO 9001 quality systems. One distributor. One accredited lab. For the life of the tool.

Key Features

• Split Beam Mechanism — Best Seller — Tekton's best-selling split beam model; no internal spring tension at rest; store at any setting without calibration drift; no storage ritual required
• Set, Lock, Leave — Smooth thumbscrew to set any ft-lb value; flip-up cover with internal locking teeth secures the setting; recessed knob prevents accidental changes mid-sequence
• 40–250 ft-lb on 1/2 in. Drive — Covers landing gear hardware, wheel and brake assembly torque sequences, engine mount attachment bolts, and propeller retention hardware
• 10° Flex Head — Clears structural obstructions at high-torque fastener locations where a fixed-head wrench requires repositioning or lever-arm correction; 72-tooth ratchet, 5° swing arc
• ±4% Accuracy CW — Calibrated to ASME B107.300-2021; tested at 50, 150, and 250 ft-lb; serialized certificate of calibration included
• 5 ft-lb Minimum Increment — Scaled for production torque work at 1/2 inch drive values
• 19.2 in. Effective Length — Documented for off-axis crowfoot torque correction calculations per AMM procedure
• Dual ft-lb / Nm Scale — Metric reference built into the wrench body; no separate conversion chart needed
• All-Steel Construction — No plastic components; no wear-out failure mode under daily high-torque production use

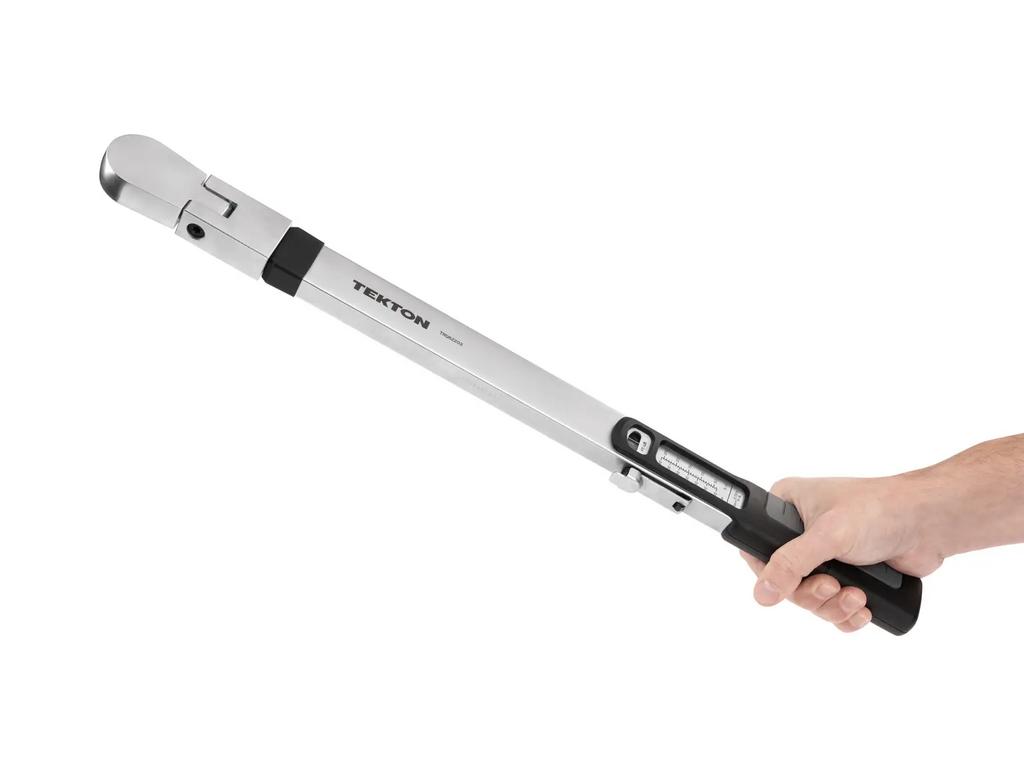

• 3.7 lb. — Substantial enough to feel planted at 250 ft-lb without fatiguing the technician across a long shift
• Lifetime Warranty — No receipts, no time limits; Tekton makes it right

Specifications

• Drive Size: 1/2 in.
• Torque Range: 40–250 ft-lb
• Mechanism: Split Beam
• Calibration Standard: ASME B107.300-2021
• Calibration Test Points: 50, 150, 250 ft-lb
• Accuracy: ±4% clockwise
• Measuring Direction: Clockwise only
• Ratchet Teeth: 72
• Swing Arc: 5° per tooth
• Head Style: 10° Flex
• Minimum Increment: 5 ft-lb
• Effective Length: 19.2 in.
• Overall Length: 22.8 in.
• Weight: 3.7 lb.
• Scale Units: ft-lb (dual scale ft-lb / Nm)
• Construction: All-steel, no plastic parts

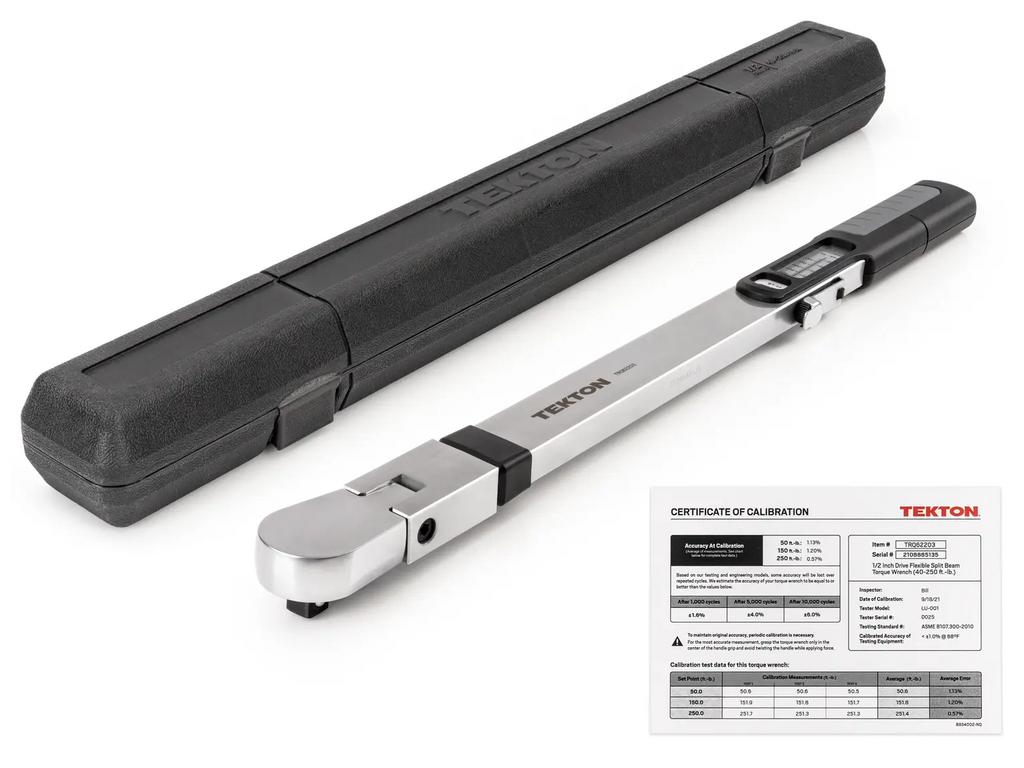

• Certificate: Serialized, included
• Country of Origin: Taiwan
• Warranty: Lifetime

Split Beam vs. Micrometer at 1/2 Inch Drive — Choosing the Right Tool

The TRQ62203 and the TRQ52402 micrometer wrench overlap significantly in torque range on the same 1/2 inch drive. They are not interchangeable — they are built for different workflows. The TRQ52402 micrometer wrench is the right choice when the application requires bidirectional torque compliance, ±3% ISO-calibrated accuracy, or a fixed-head wrench on a fastener with unobstructed straight-line access. The TRQ62203 split beam is the right choice when the same clockwise torque value is applied many times per shift, when the flex head eliminates a repositioning step or lever-arm correction, when setting speed matters across a long torque sequence, and when no-storage-ritual mechanical reliability is a daily operational requirement. Many shops carry both — and PJi sells both.

ISO 17025 Calibration Available at PJi

Pilot John International is an ISO 17025-accredited calibration laboratory. The TRQ62203 sees more torque cycles per shift than most instruments in a working shop — which means its internal wear rate is higher than a less-frequently-used tool. PJi can establish a usage-appropriate recertification interval for your TRQ62203, issuing NIST-traceable calibration certificates accepted by FAA Part 145 repair stations, Part 91/135 operators, and AS9100 / ISO 9001 quality programs. For a best-selling production tool at this torque level, a usage-triggered recertification schedule — rather than a fixed calendar interval — is worth establishing with your tool control coordinator.
