Tekton TRQ95903 - 4-Piece Micrometer Torque Wrench Set

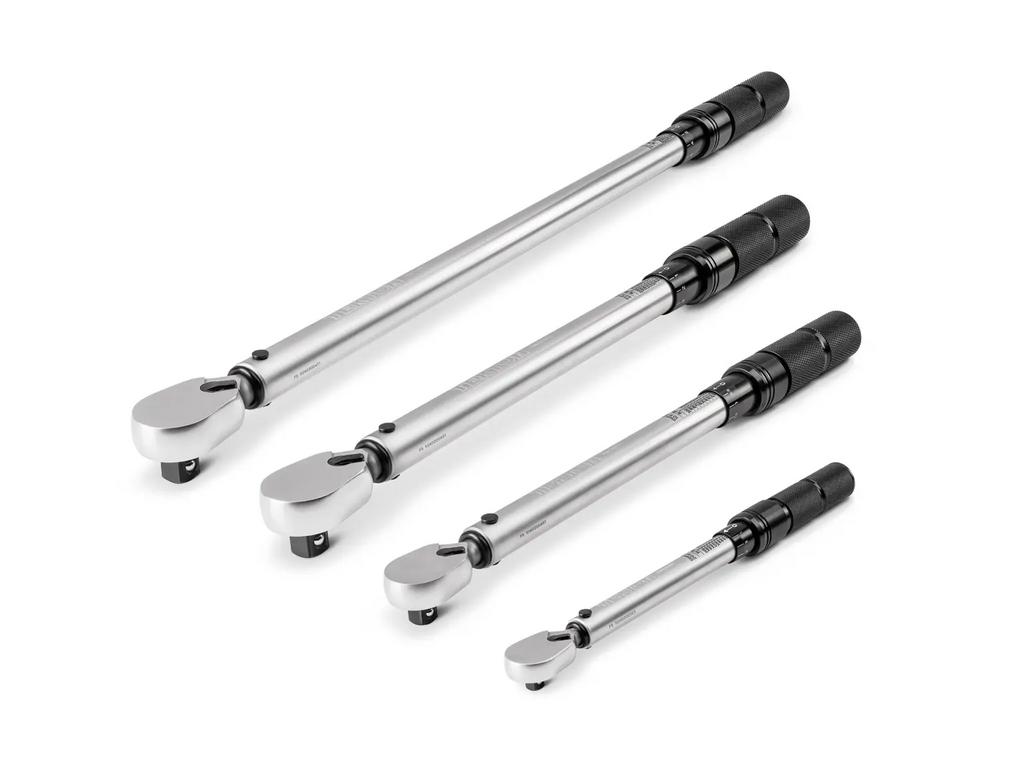

The three-piece sets in this series resolve a binary question about 1/2 inch drive ceiling. The TRQ95903 is for shops where that question does not have a binary answer — where both 1/2 inch drive instruments serve real, documented tasks within the program, depending on the aircraft type and the fastener being torqued. It is a 4-piece micrometer torque wrench set containing the TRQ50402 (1/4 in., 20–200 in-lb), TRQ51402 (3/8 in., 10–100 ft-lb), TRQ52402 (1/2 in., 40–200 ft-lb), and TRQ52403 (1/2 in., 40–300 ft-lb) — each in its own individual HDPE case with its own serialized certificate of calibration. The only set in the micrometer family that puts both 1/2 inch drive instruments on the bench simultaneously.

There is a precision measurement principle worth stating explicitly: accuracy is highest when the applied torque value sits in the upper portion of a wrench's calibrated range. A 150 ft-lb specification is better served by the TRQ52402, where 150 ft-lb represents 75% of rated range, than by the TRQ52403, where it represents 50%. Both are ISO 6789-calibrated to ±3% — but the wrench whose scale centers the specification is the more precise instrument at that value. The TRQ95903 makes that precision available for every 1/2 inch drive fastener in the shop: the TRQ52402 for standard-torque applications where its range optimally brackets the specification, the TRQ52403 for fasteners above 200 ft-lb where the TRQ52402's certified range ends. Two instruments. The correct tool for every 1/2 inch drive AMM value.

Pilot John International's ISO 17025-accredited calibration laboratory recertifies all four wrenches — including both 1/2 inch drive instruments across their separate ranges — at a single scheduled service event, issuing four individual NIST-traceable calibration certificates on the same date. One expiry date. Complete program. No staggered gaps.

Set Contents and Aviation Applications

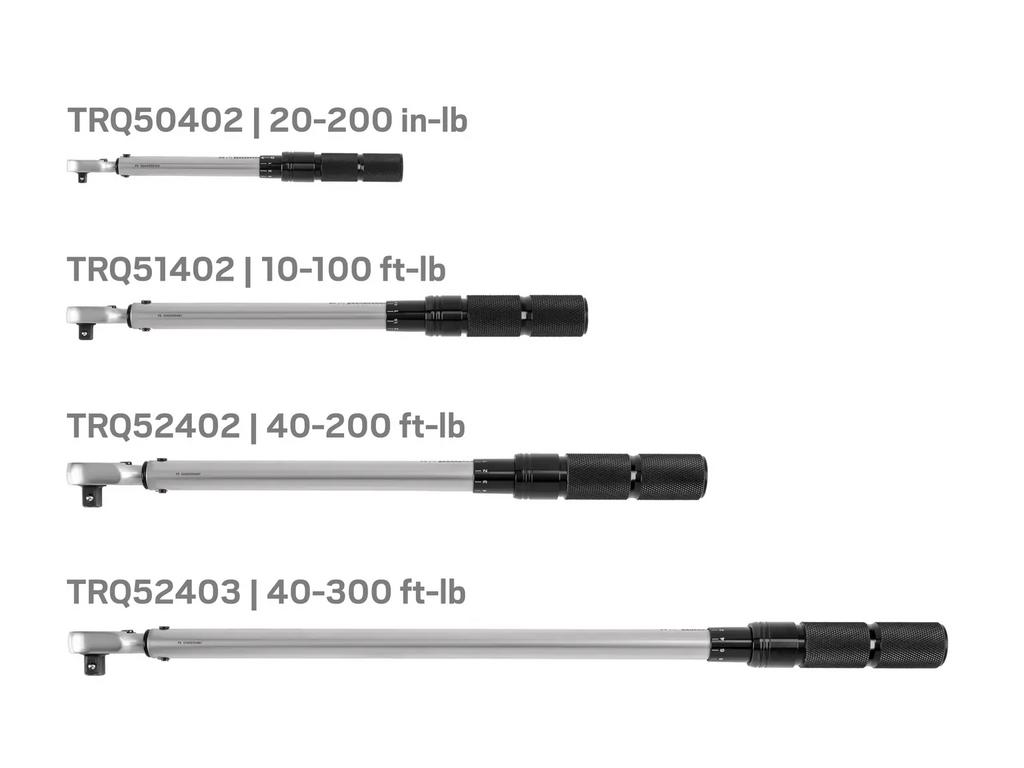

• TRQ50402 — 1/4 in. Drive, 20–200 in-lb — Avionics panel and instrument bay hardware, pitot-static system fittings, small AN fasteners, ATA 23/24/31/34 component torque sequences; the correct wrench for all specifications below 200 in-lb where operating a larger drive at low torque falls outside its calibrated accuracy band

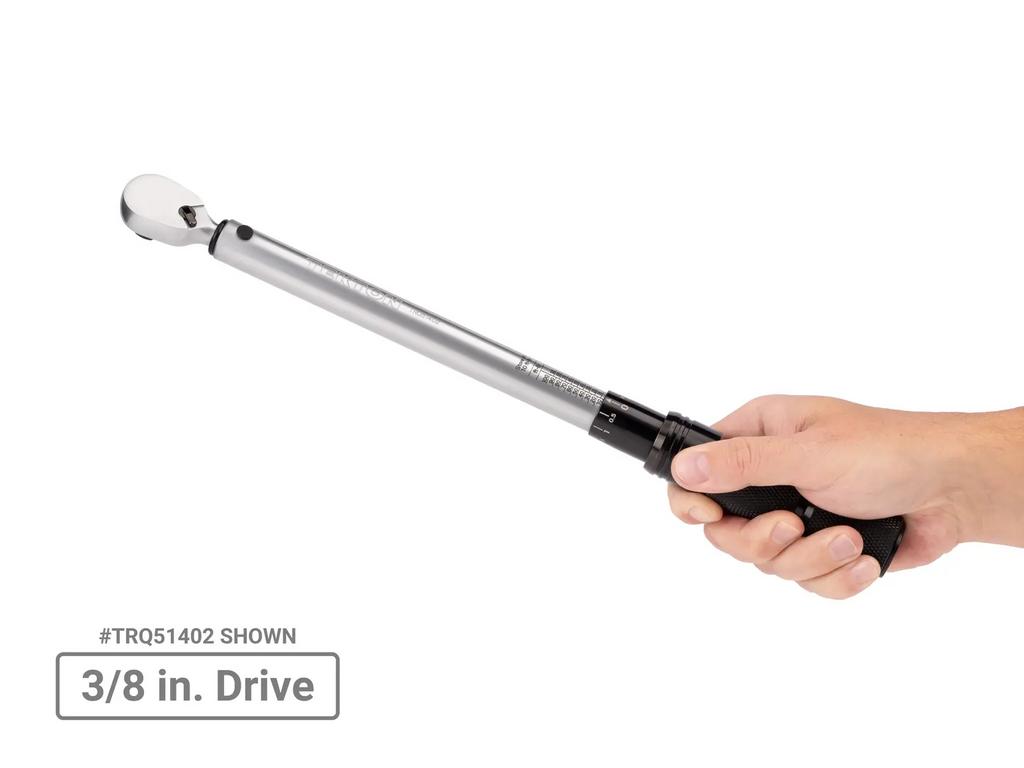

• TRQ51402 — 3/8 in. Drive, 10–100 ft-lb — Engine mount hardware, propeller flange fasteners, landing gear leg bolts, accessory gearbox components, exhaust system fasteners, control surface hardware, and the mid-range powerplant and structural work that constitutes the bulk of documented line maintenance torque specifications
• TRQ52402 — 1/2 in. Drive, 40–200 ft-lb — Wheel and brake assembly hardware, engine mount primary attachment bolts on piston and light turboprop aircraft, propeller hub retention at standard torque values; the instrument whose scale optimally positions specifications in the 100–200 ft-lb working zone
• TRQ52403 — 1/2 in. Drive, 40–300 ft-lb — Turboprop primary engine mount hardware, heavy landing gear trunnion and drag brace attachment fasteners, propeller hub and retention hardware on high-power installations, wing primary structural joint fasteners, and any specification above 200 ft-lb where the TRQ52402's certified range ends and the TRQ52403's begins

Included Drive Adapters and Reducers

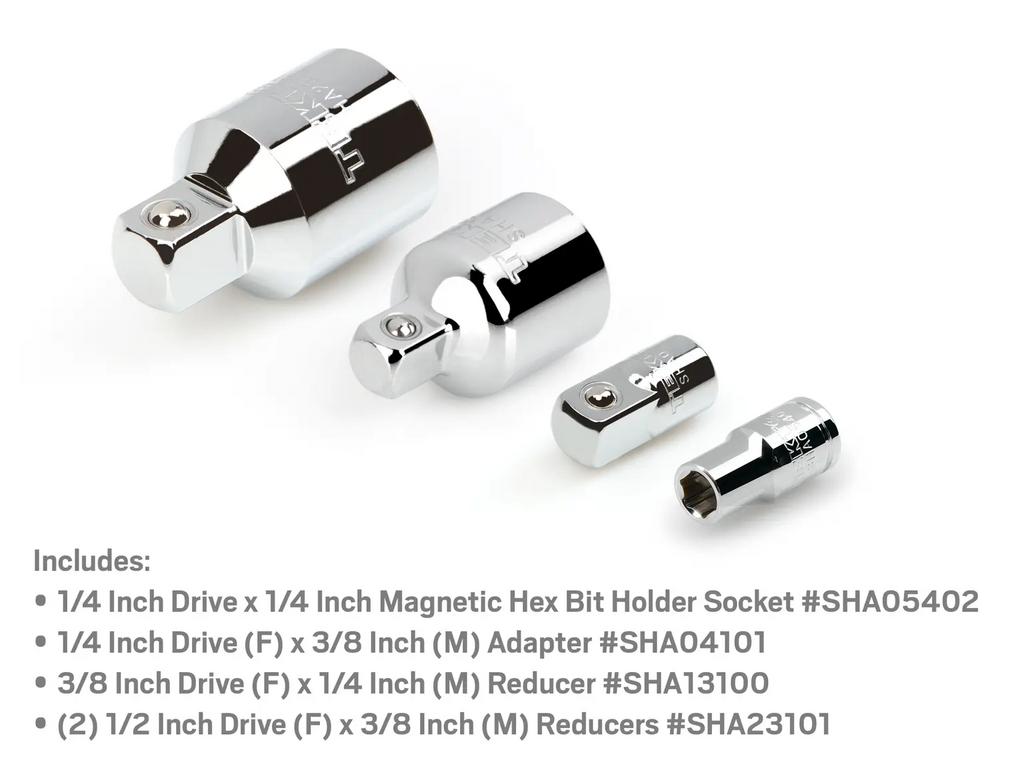

The TRQ95903 includes a set of drive adapters not mentioned in any competing listing: a 1/4 in. magnetic hex bit holder socket for driving fasteners directly with the TRQ50402, a 1/4 in. (F) x 3/8 in. (M) adapter for using 3/8 inch sockets on the 1/4 inch drive wrench, a 3/8 in. (F) x 1/4 in. (M) reducer for the reverse direction, and two 1/2 in. (F) x 3/8 in. (M) reducers — one for each 1/2 inch drive wrench — for accessing 3/8 inch drive sockets when clearance requires it. In confined aviation maintenance access environments, drive size flexibility at the socket-fastener interface is a daily operational requirement.

Shared Specifications — All Four Wrenches

• ISO 6789 Full-Range Calibration — Tested from lowest marked value through maximum in both directions; five readings per set point; meets and exceeds ASME B107.300

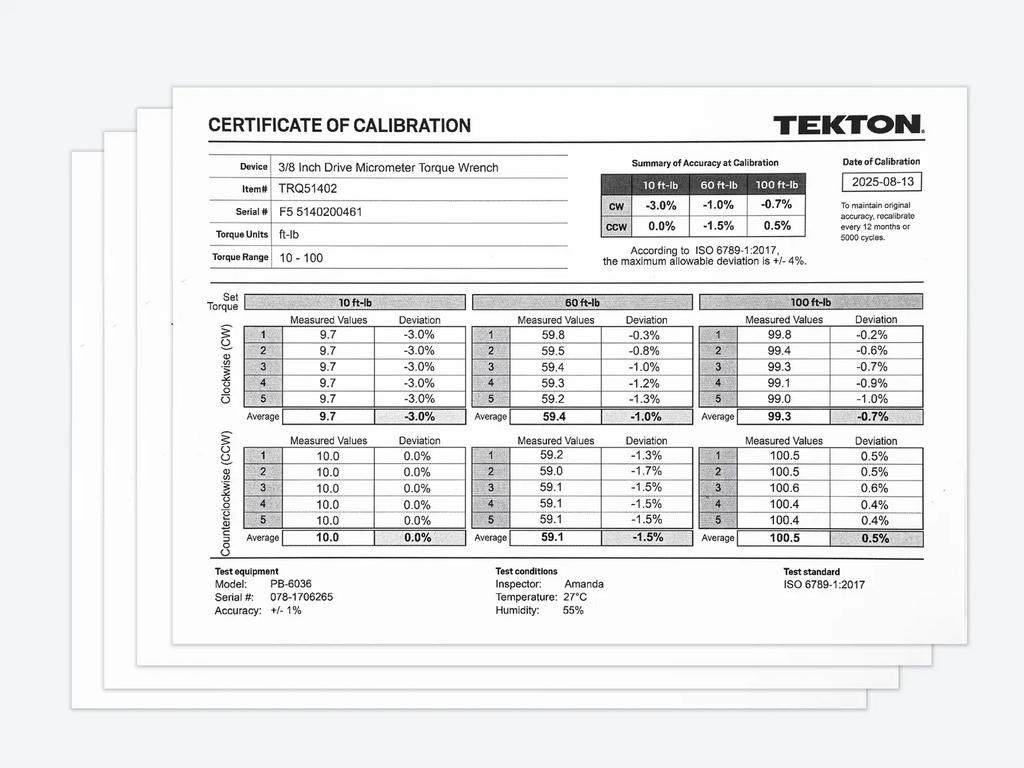

• ±3% Accuracy CW & CCW — Actual measured accuracy of each individual wrench documented on its own serialized certificate — not a set average
• 90-Tooth Fixed Ratchet Head — Single half-moon pawl holds 9 teeth engaged simultaneously; 4° swing arc; consistent click feedback across the working range of all four instruments
• Dual-Direction Click Mechanism — Positive audible and tactile confirmation in both directions on every wrench in the set
• Locking Collar — Auto-springs to locked position on all four instruments; prevents accidental torque setting changes between fasteners
• Laser-Etched Micrometer Scale — Satin finish, high-contrast bold fonts, straight centered indicator lines; readable without rotating any of the four wrenches
• Coarse Diamond-Knurl Grip — Deep-cut centerline groove positions hand at calibrated pivot point across all four handle lengths

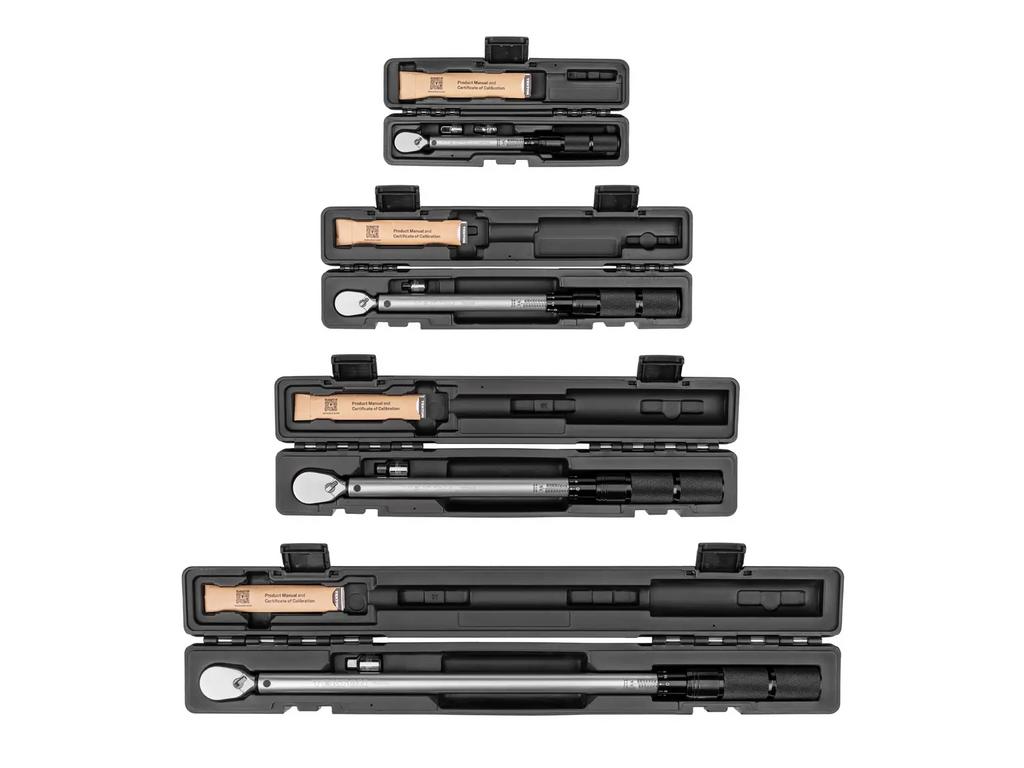

• Individual HDPE Case Per Wrench — Four separate cases; each wrench and its certificate stored and transported independently
• Store at Minimum Setting — Wind each wrench back to lowest marked value after every use to relieve spring tension and prevent calibration drift; applies to all four micrometer instruments
• Tekton Recertification Available — All four wrenches are supported by Tekton's manufacturer recertification service
• Total Set Weight: 8.9 lb.
• Lifetime Warranty — No receipts, no time limits; applies individually to each wrench in the set

Who the TRQ95903 Is For

The TRQ95903 is the correct set for: Part 145 repair stations running a mixed fleet where both standard-torque and high-torque 1/2 inch drive fasteners coexist in the AMM library; A&P training facilities that need to demonstrate correct wrench selection by drive size and range as a program principle; MRO shops whose tool SOPs require matching the wrench range to the specification rather than defaulting to the highest-ceiling instrument on every task; and any shop that wants the complete micrometer torque program — every drive size, both 1/2 inch ceiling options, every application covered — in a single purchase decision with a single calibration interval.
