Key Features:
• High Accuracy: 0.3% DCV basic accuracy ensures precise readings
• Wide Measurement Range: Covers 0-1,000 DCV, 0-750 ACV, 0-40MΩ, and AC/DC amps to 10
• Autoranging Convenience: Automatically selects the appropriate range for efficient measurements
• Essential Functions: Min/Max recording, data hold, and auto-off for enhanced usability
• Durability and Safety: cULus 61010-1 certified, CAT II - 1000V, CAT III - 600V rated for safe operation
• Versatile Measurements: Measures ACV, DCV, ACA, DCA, resistance, diodes, and continuity
• Additional Features: Record, range, and sleep functions for added flexibility

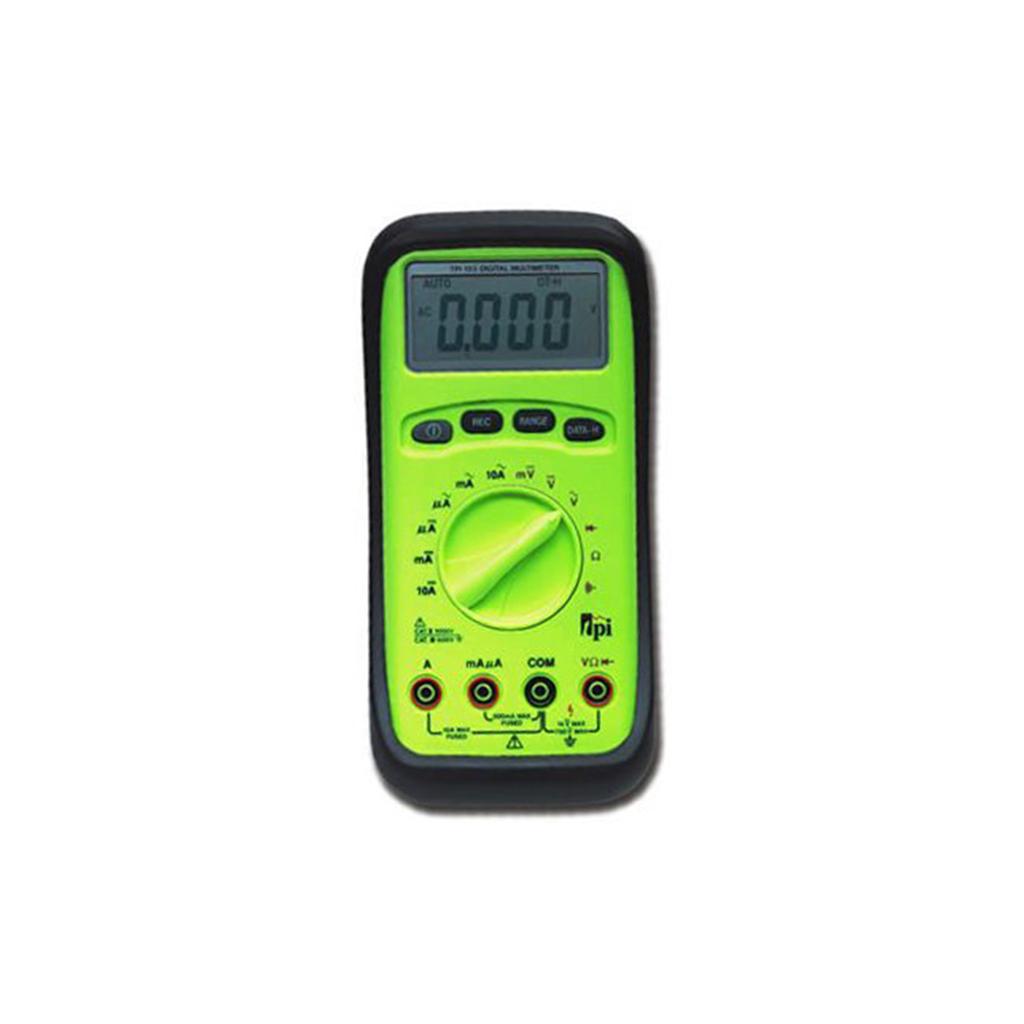

• Built to withstand the rigors of aviation environments, the Test Products International (TPI) 153 is your trusted companion for troubleshooting, maintenance, and quality control.
Includes:
• 153 Digital Multimeter
• Rubber Boot
• Fuses (2A and 10A)
• Test Lead Set
• Instruction Manual
• 9V Battery
| General Information | |
|---|---|
| Part # | 153 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.65 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9030310000 |
| Specifications | |
|---|---|
| AC Amps | Maximum Input: 10A, Maximum Resolution: 0.1μA, Accuracy: +/-0.8% |
| AC Volts | Maximum Input: 750V, Maximum Resolution: 0.001V, Accuracy: +/-0.8% |
| Agency Approval | cULus 61010-1, IEC 61010-1 |
| Battery Life | 500hrs Typical |
| Battery Type | 9V |
| Capacitance | N/A |
| Compare Mode | No |
| Conductance | No |
| Continuity | Audible at less than 50Ω |
| Data Hold | Yes |
| DC Amps | Maximum Input: 10A, Maximum Resolution: 0.1μA, Accuracy: +/-0.5% |
| DC Volts | Maximum Input: 1000V, Maximum Resolution: 0.1mV, Accuracy: +/-0.3% |
| Diode | 3V at 30µA maximum output |
| Display Type | 4000 count LCD |
| Duty Cycle | N/A |
| Frequency | N/A |
| Humidity | 80% non-condensing |
| Inductance | N/A |
| Min/Max Record | Yes |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| OverInput Category | CAT III 600V |
| Process Loop Output | No |
| Protective Boot | Yes (standard) |
| Pulse Width | No |
| Range Selection | Auto/Manual |
| Relative Mode | No |
| Resistance (Ohms) | Maximum Input: 40MΩ, Maximum Resolution: 0.1mΩ, Accuracy: +/-0.5% |
| RS-232 Output | No |
| Size | 6” x 3.1” x 1.2” (187mm x 86mm x 33mm) with boot |
| Sleep Mode / Auto Off | Ye |
Customers also viewed
24V - 25 Amp
5 cSt Synthetic Lubricant - 1 Quart Container
Mobile Aircraft Mule
10A, 1000V, Compare Mode, Conductance
2000 Count, 600V AC/DC, Basic
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
Is there a way to measure higher current with this multimeter?
Answer:
All TPI digital multimeters can read up to 10A AC/DC. Optional adapters, such as TPI's shunt adapters, can increase the current range up to 1,000A AC/DC.
Asked September 10, 2024
Question:
Does this multimeter measure temperature?
Answer:
Although not a built-in feature, this digital multimeter can measure temperature by using the optional A301 K-type thermocouple temperature adapter.
Asked September 10, 2024
Question:
Can this unit measure DC millivolts?
Answer:
Yes! All TPI digital multimeters can measure millivolts. Models are available with 1 or 0.1 millivolt resolution.
Asked September 10, 2024
Question:
Can this digital multimeter measure DC microamps?
Answer:
Yes! This digital multimeter has the capability to measure DC microamps.
Asked September 10, 2024
Question:
Will this multimeter measure capacitance?
Answer:
No, this digital multimeter does not have the capability to measure capacitance.
Asked September 10, 2024
