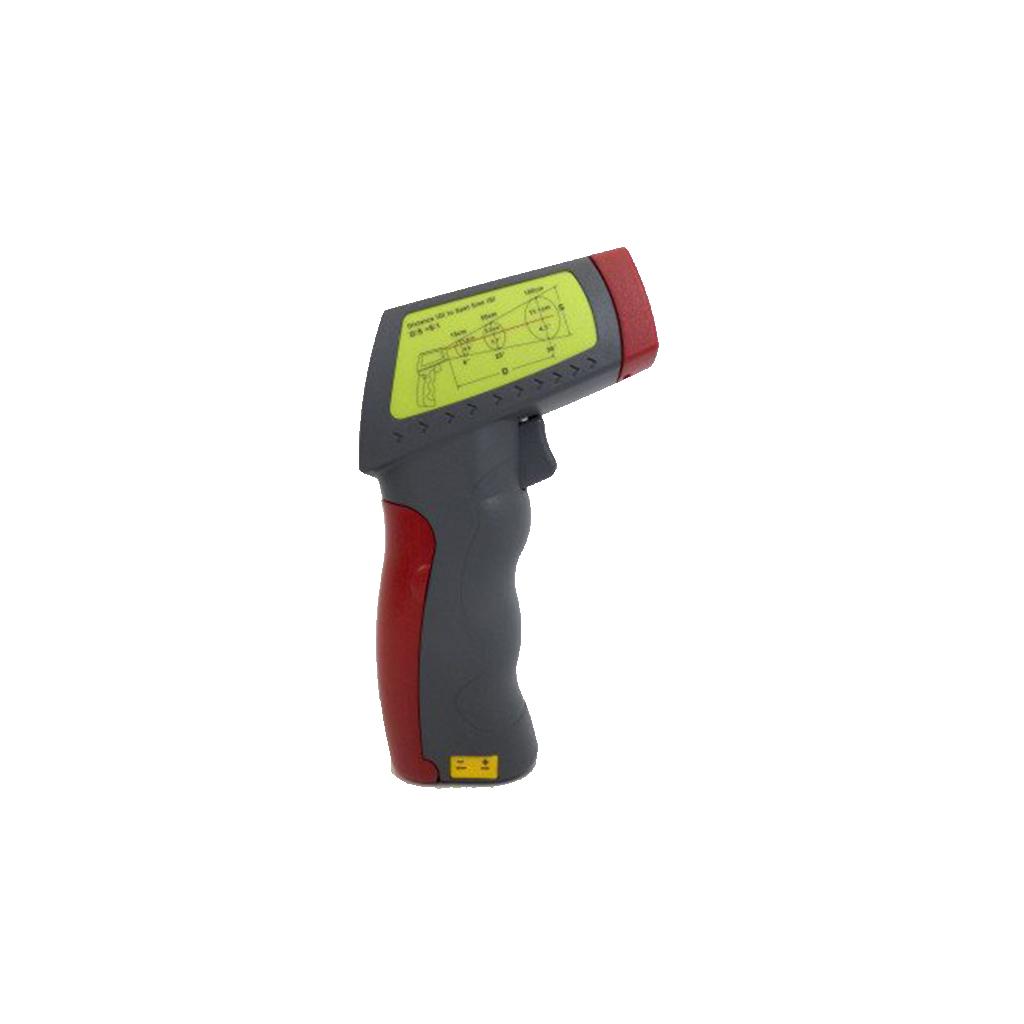

TPI 384A - Infrared Contact & Non-Contact Thermometer
With the Test Products International (TPI) 384A Infrared Thermometer, you can quickly and safely measure temperatures on aircraft components up to 1832°F (1000°C). It features laser sighting, 0.1° resolution, and one-button operation for efficient inspections. It is indispensable for aircraft maintenance professionals seeking reliable and efficient temperature measurement solutions.
Key Features
• Temperature range: 0°F to 1,832°F (-18°C to 1,000°C)
• Repeatable measurements, 0.1° resolution readings
• Temperature compensated for accurate readings
• Hold function
• Easy-to-use one-button operation
• °C and °F selectable
• Distance-to-spot ratio: 9:1
• Laser sighting
• Easy-to-read LCD with backlight
• Auto-off
Specifications
- Non-Contact (IR) Range: -31°F to 1,832°F (-35°C to 1000°C)
- Accuracy: +/-2% of reading or +/-3.5°F, whichever is greater
- Distance-to-Target Ratio: 9.5:1
- Response Time: 500mS
- Spectral Response: 7 to 14 um
- Emissivity: 0.95 Fixed
- Display Resolution: 0.1° / 1° (Automatic)
- Operating Temperature: 32°F to 120°F (0°C to 50°C)
- Battery Type: 9V
| General Information | |
|---|---|
| Part # | 384A |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 0.7 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9025198080 |
| Specifications | |
|---|---|
| Accuracy | +/-2% of reading or +/-3.5°F whichever is greater |
| Backlight Display | Yes |
| Battery Type | 9V |
| Contact (K-Type) Range | N/A |
| Display Resolution | 0.1° / 1° (Automatic) |
| Distance to Target Ratio | 9.5:1 |
| Emissivity | 0.95 Fixed |
| Laser Sighting | Yes |
| Min/Max Record | No |
| Non-Contact (IR) Range | -31°F to 1832°F, -35°C to 1000°C |
| Non-Contact Accuracy | N/A |
| Operating Temperature | 32°F to 120°F (0°C to 50°C) |
| Response Time | 500mS |
| Spectral Response | 7 to 14um |
Customers also viewed
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The laser spot needs to be showing inside the target area. An 8:1 distance-to-spot ratio means you are measuring a 1" diameter area at a distance of 8".
Distance is unlimited. The size of the target area sets the limit on distance for accurate measurements. For example, if the area you wish to measure is 1 foot in diameter, then you will need to be within 8 feet to record an accurate temperature.
Approximately one-half inch in diameter.
Emissivity is the ratio of an object's infrared emission compared to a theoretical black body considered 1. Emissivity is always less than 1.
Adjustable emissivity allows your non-contact thermometer to be adjusted to the surface you are checking to ensure more accurate readings.
