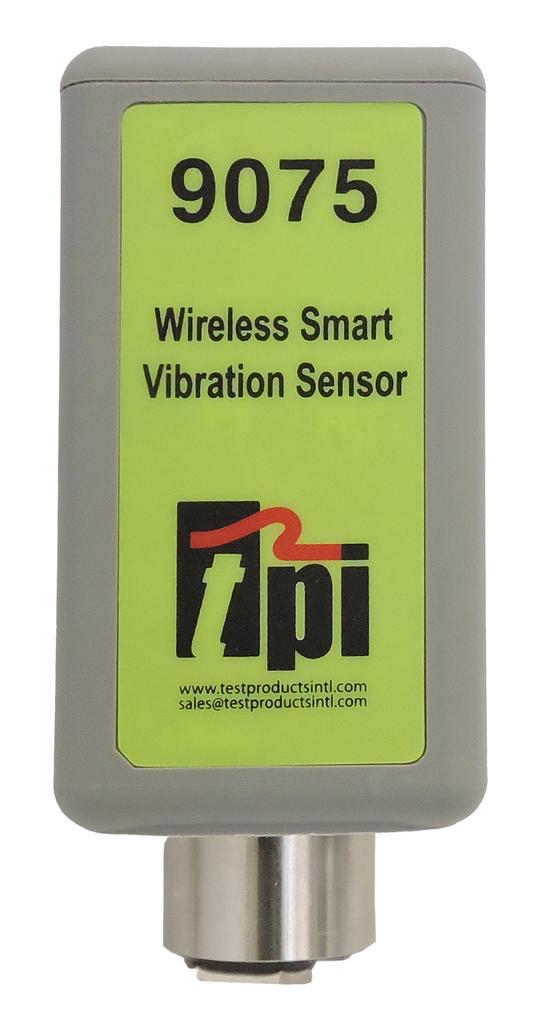

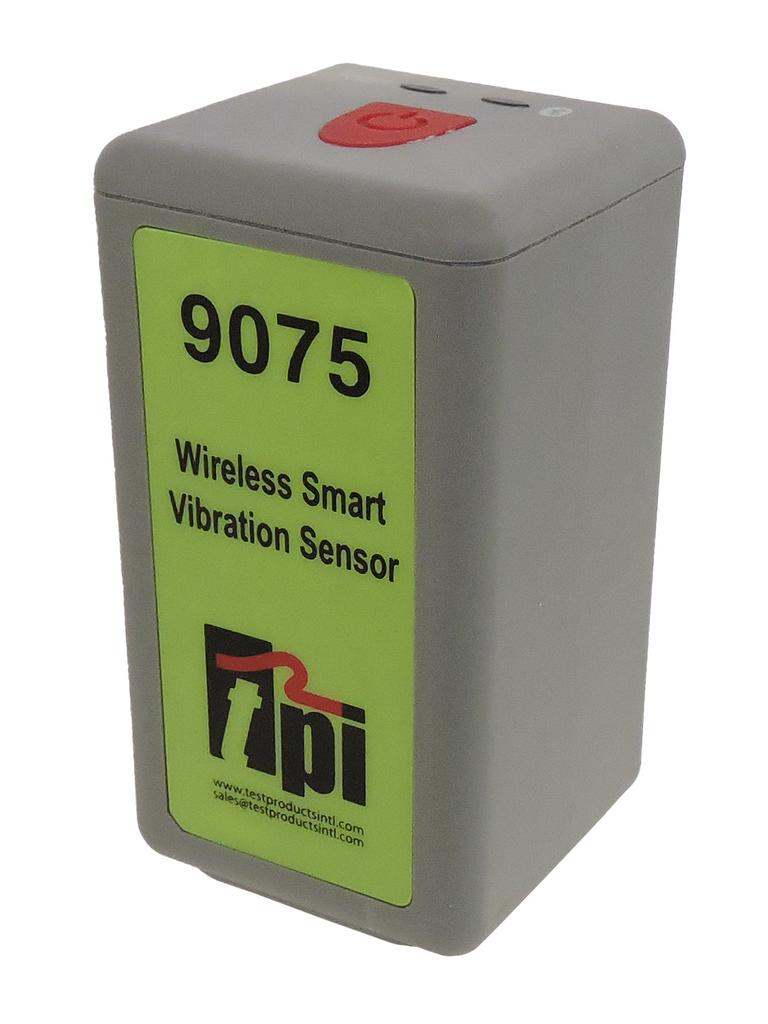

TPI 9075 - Wireless Accelerometer

The TPI 9075 Wireless Accelerometer is used for vibration monitoring and condition-based maintenance on rotating equipment. It helps technicians evaluate machine health by identifying common mechanical issues such as imbalance, misalignment, and looseness. It can also support early detection of bearing-related problems using higher-frequency vibration analysis.

The TPI 9075 can be used on a wide range of rotating assets where vibration trends are useful for reliability planning. This includes motors, pumps, fans, blowers, and other belt- or direct-driven machinery. Its frequency coverage supports both lower-frequency mechanical fault monitoring and higher-frequency bearing condition checks.

ISO vibration ranges are commonly used to assess general mechanical faults, such as unbalance, misalignment, and looseness, in rotating equipment. Bearing noise measurements focus on higher frequencies, often associated with rolling-element bearing wear and early-stage damage. The TPI 9075 supports both measurement ranges, helping technicians pinpoint the likely source of vibration issues.

The frequency range determines what types of vibration problems you can detect and analyze. Lower-frequency vibration is often associated with imbalance and alignment issues, while higher-frequency vibration is typically where bearing defects show up. The TPI 9075 covers a wide frequency span to support both general mechanical diagnostics and bearing condition evaluation.

Bluetooth connectivity enables the accelerometer to wirelessly transmit readings to a mobile device, reducing cable clutter and improving mobility during inspections. This is especially helpful when testing equipment in tight mechanical rooms or hard-to-reach areas. The TPI 9075 uses Bluetooth 5 for sensor connection.

An IP67 rating indicates the sensor is designed for strong protection against dust and water exposure in demanding environments. For maintenance teams, this helps support more confident use around dirty equipment, washdown areas, or wet mechanical spaces. It’s a practical durability advantage for routine vibration routes.

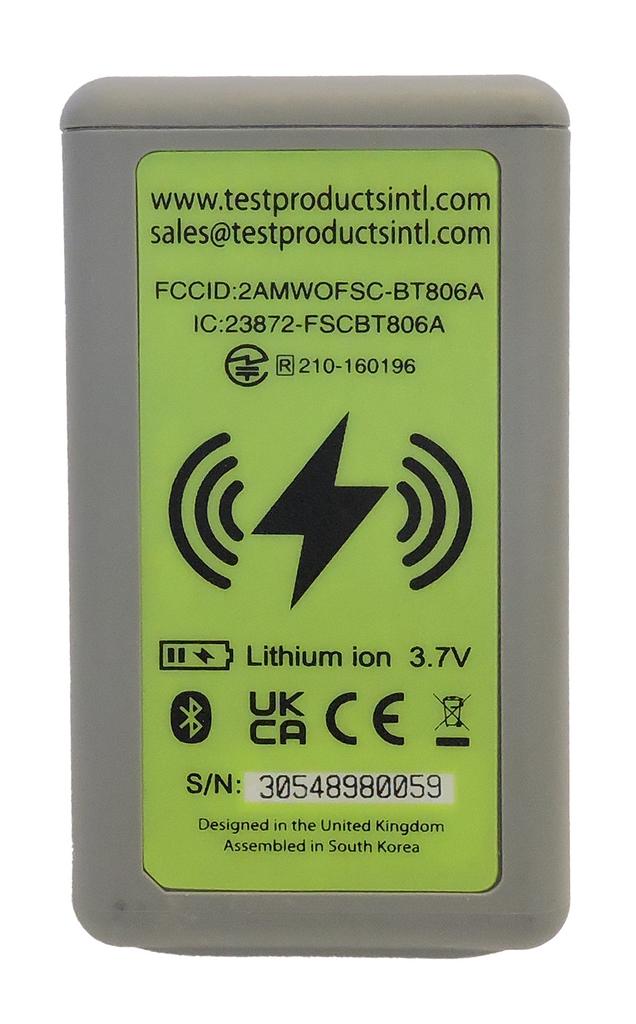

Wireless charging makes it easier to keep the accelerometer powered without relying on delicate charging ports or connectors. This can reduce wear over time, especially in field environments where tools are frequently handled and stored. The TPI 9075 features wireless charging and long battery life for maintenance-friendly operation.

The A9073 magnet is an accessory designed to help mount the accelerometer securely to equipment during testing. A stable mounting method helps reduce inconsistent readings caused by movement or poor contact. This improves repeatability when comparing vibration results over time.

Resolution impacts how detailed the vibration spectrum appears, which can influence how clearly faults can be identified. Higher resolution can help separate closely spaced vibration peaks and improve troubleshooting confidence. The TPI 9075 supports 100 to 800 lines with zoom for spectrum analysis.

“10 kHz Fmax” refers to the maximum frequency range available for analysis. Access to higher-frequency vibration data is especially useful when evaluating bearing condition and early-stage mechanical wear. This allows maintenance teams to detect issues sooner and plan repairs before failures escalate.

A 24-bit A/D converter supports more precise signal capture and improved measurement clarity. In vibration diagnostics, this can help produce cleaner data and more usable spectra when evaluating machine condition. The TPI 9075 uses a 24-bit A/D for reliable performance in the field.

Dynamic range describes how well a sensor captures both low- and high-level vibration signals without losing detail. A strong dynamic range can help technicians detect subtle changes early while still handling higher vibration levels. The TPI 9075 is rated at a dynamic range of 108 dB.

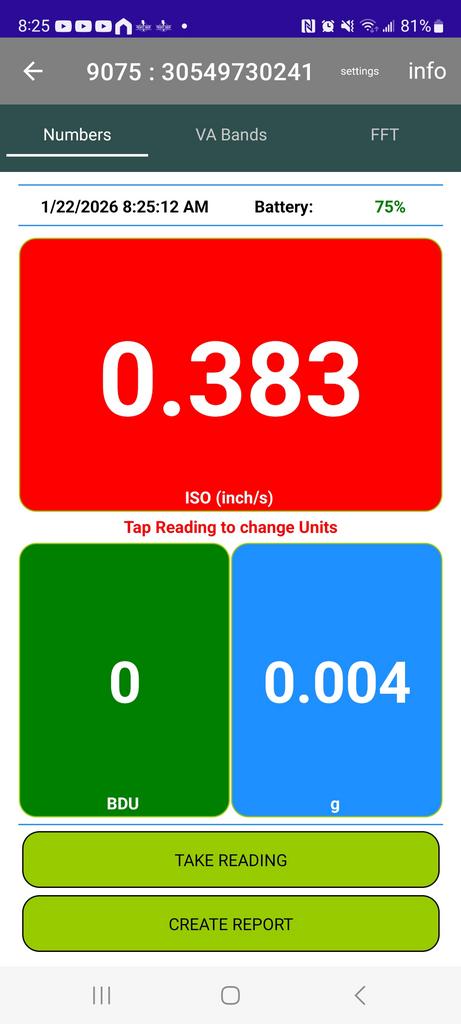

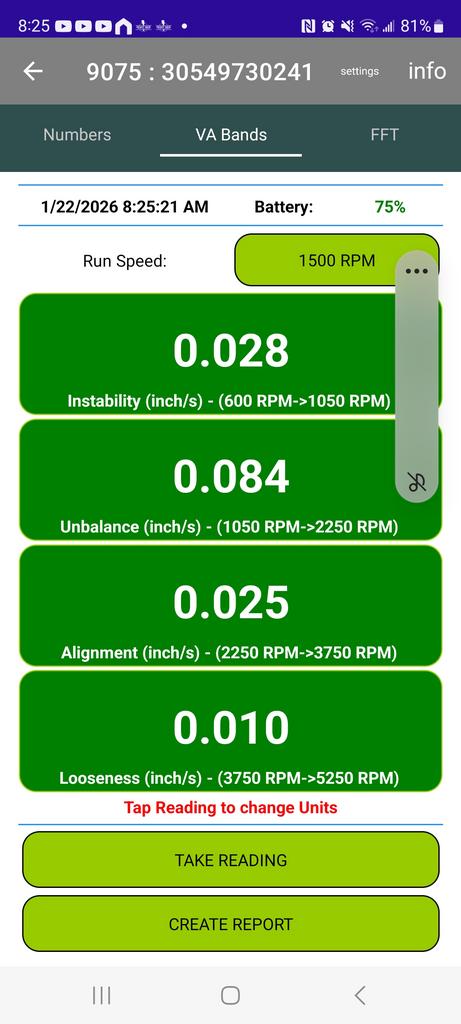

VA bands help organize vibration results into practical condition categories, rather than forcing technicians to interpret raw spectra every time. This can make it easier to quickly spot patterns tied to instability, unbalance, alignment issues, or looseness. The TPI View app includes VA bands for streamlined evaluation.

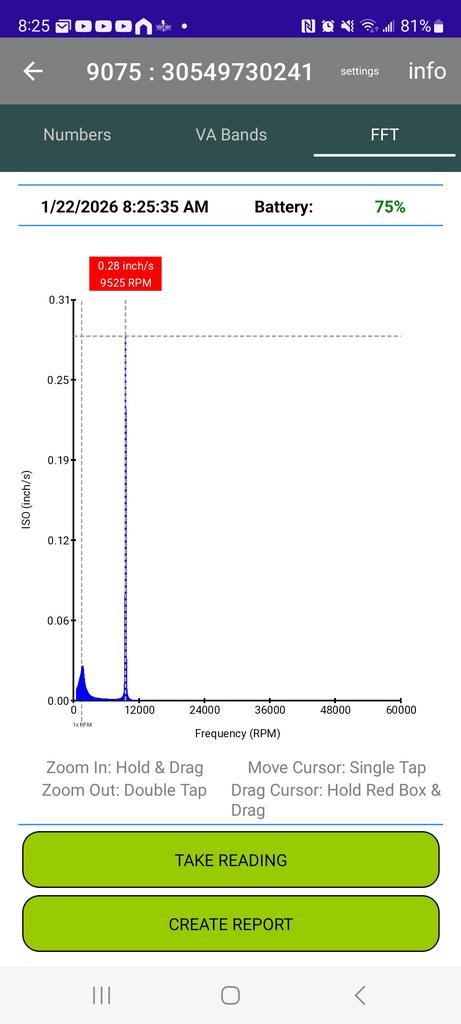

The FFT (Fast Fourier Transform) display breaks vibration signals into frequency components, helping identify where vibration energy is concentrated. This is valuable because different faults tend to show up at different frequency patterns. The TPI 9075 supports FFT display through the TPI View app for deeper diagnostics.

For best results, focus on consistent test locations, stable mounting, and repeatable measurement conditions so trend data stays meaningful. It also helps to track changes over time rather than relying on a single snapshot reading. With a frequency range of 2 Hz to 10 kHz, the TPI 9075 supports both general mechanical monitoring and bearing condition checks as part of a proactive maintenance strategy.
