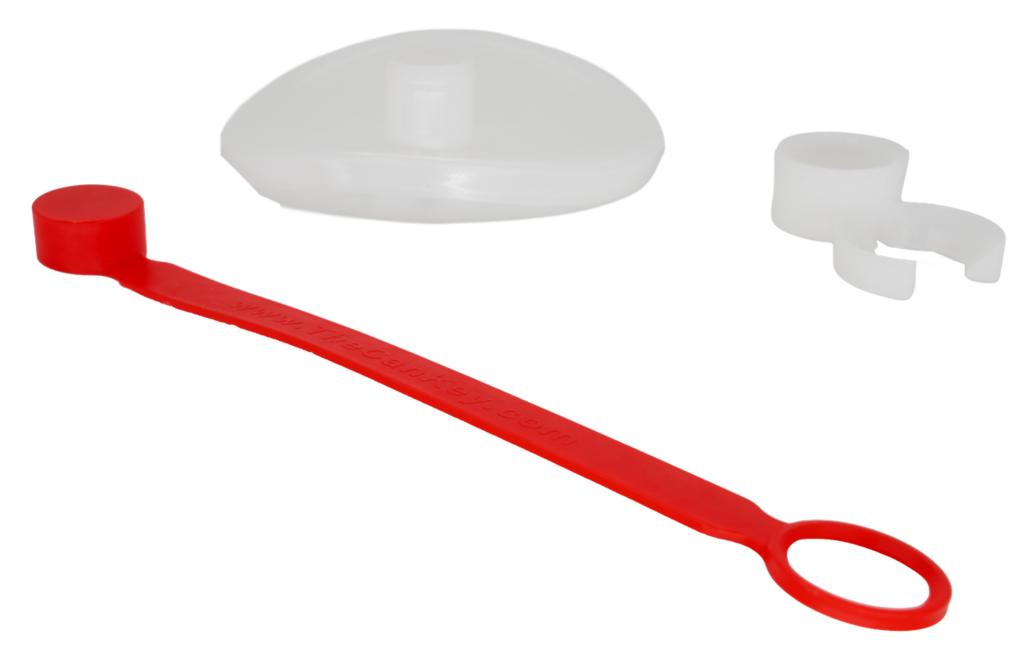

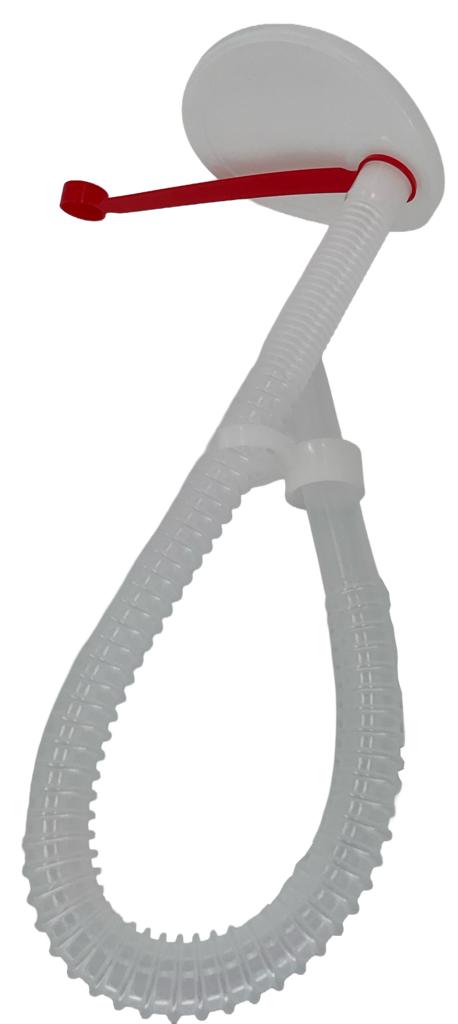

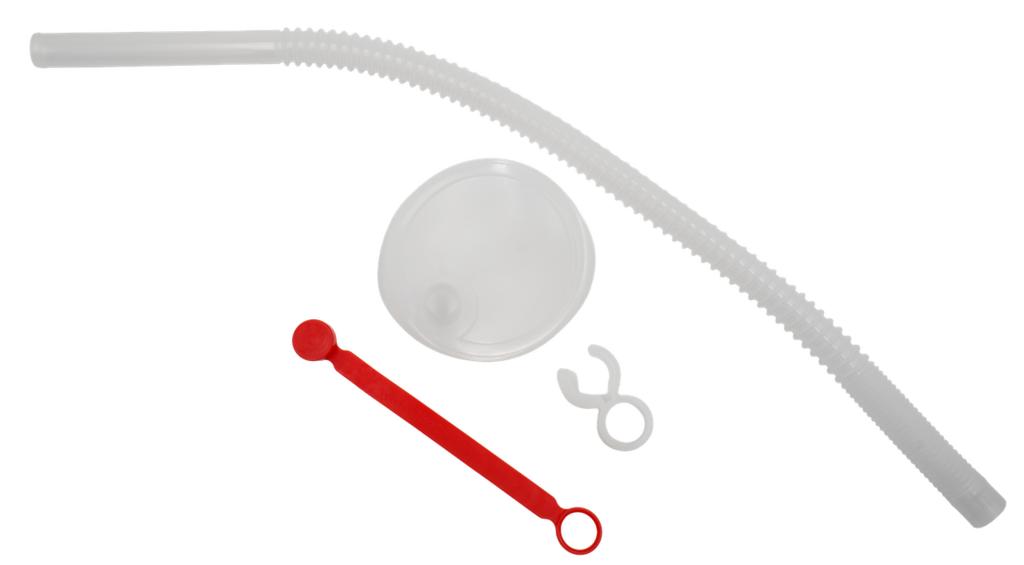

PJi® FunnelCap-QC Oil Can Funnel Cap with Quart Can Cover

The PJi® FunnelCap-QC Oil Can Funnel Cap with Quart Can Cover is a no-spill funnel cap engineered for one-quart oil cans used in aircraft maintenance, ground support servicing, and other contamination-sensitive fluid handling environments. By sealing to the can and routing oil through a flexible hose, this funnel cap supports safe, spill-free servicing of aircraft oil and hydraulic systems while helping reduce the risk of foreign object debris and supporting FOD prevention goals on the flight line and in the hangar.

Direct pouring from a quart can can be inconsistent, especially around tight filler access and sensitive components. FunnelCap-QC creates a controlled pour path by placing the hose directly into the filler opening, helping reduce drips and splashes. It also supports leak-proof storage for open, half-used cans. The hose can be removed if desired, clipped down for space-saving storage, and sealed with the red strap cap to help prevent leakage and limit contamination exposure between uses.

Key Features

• No-spill design helps prevent oil spills during aircraft oil and hydraulic servicing.
• Leak-proof storage capability helps store open, half-used quart cans with reduced leak risk.
• Flexible hose supports controlled delivery into filler openings and reduces mess in tight areas.
• Space-saving hose clip secures the hose to the can to minimize storage space when not in use.
• Extendable reach by connecting additional flex hoses when extra distance is required.
• Removable hose option for cleaning, replacement, or alternate configuration.
• Red strap cap seals the hose end to help prevent leakage and reduce contamination risk.
• Lightweight and compact for tool kits and service carts.

Specifications

• Application: One-quart oil cans for aircraft oil servicing and hydraulic system maintenance
• Weight: 0.058 kg
• Overall dimensions: 25 × 10 × 3 cm
• Hose: Flexible hose with storage clip and sealable end cap
• Modularity: Additional flex hoses can be connected for increased reach

How to Use

• Prepare the oil can by using TheCanKey oil can opener to create a clean pouring hole.
• Install the FunnelCap-QC on top of the can with slight hand pressure and position the flex hose over the pouring hole.
• Insert the end of the flex hose into the oil or hydraulic filler opening.
• Hold the can horizontally with the flex hose at the top so air can vent.
• Rotate the can slowly until the flex hose is at the bottom position to maintain steady flow.
• Install the red strap cap on the hose end when finished to seal and protect the outlet.
• Use a separate FunnelCap for different oil types to help prevent cross-contamination.

Typical Applications and Industries

• Aviation maintenance and MRO: Turbine and piston aircraft oil servicing, hydraulic fluid handling, and line maintenance with a focus on FOD prevention.
• Ground support operations: Cleaner dispensing workflows in storerooms and service bays.
• Industrial maintenance: Controlled quart can dispensing where spills and contamination create downtime.

If your servicing workflow involves quart cans, FunnelCap-QC is a practical way to improve spill control, support FOD prevention, and keep maintenance areas cleaner. It pairs naturally with FOD awareness initiatives and helps reduce avoidable contamination risks during everyday aircraft servicing.
