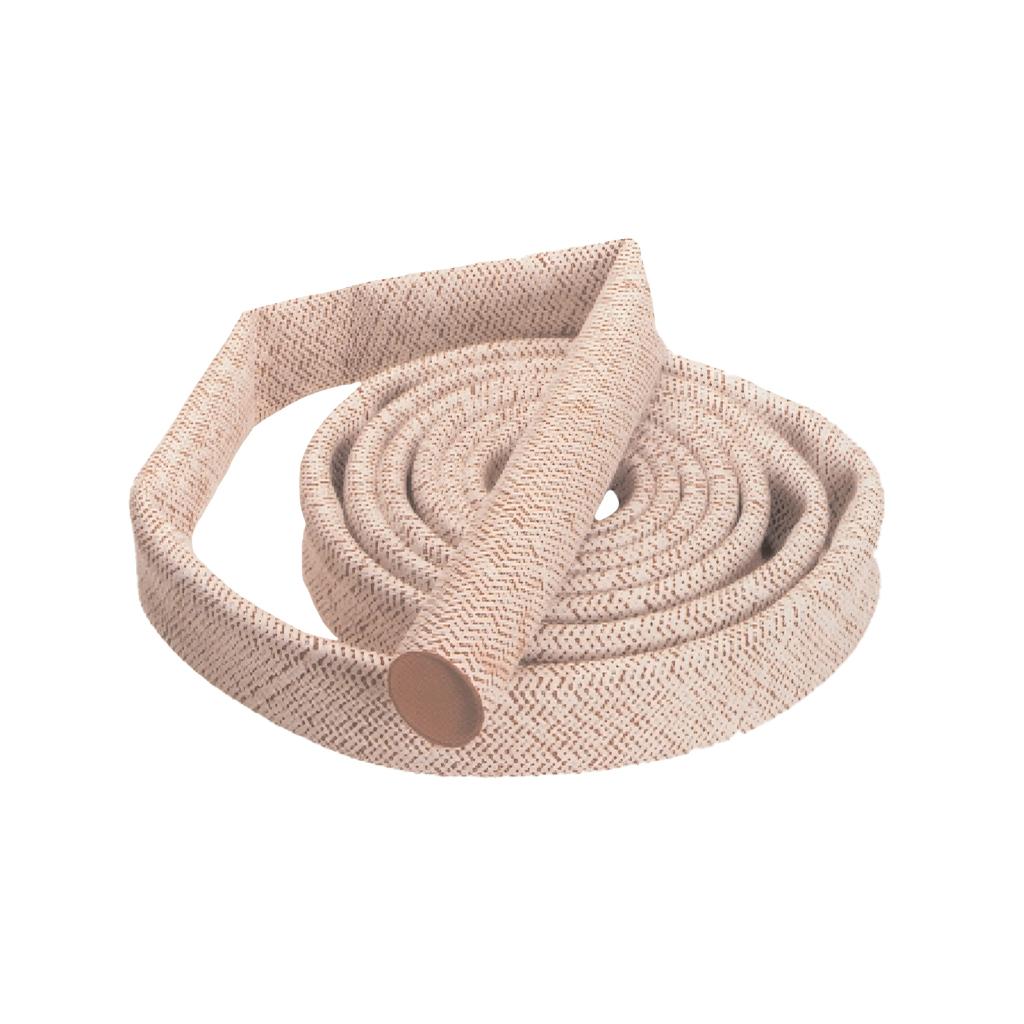

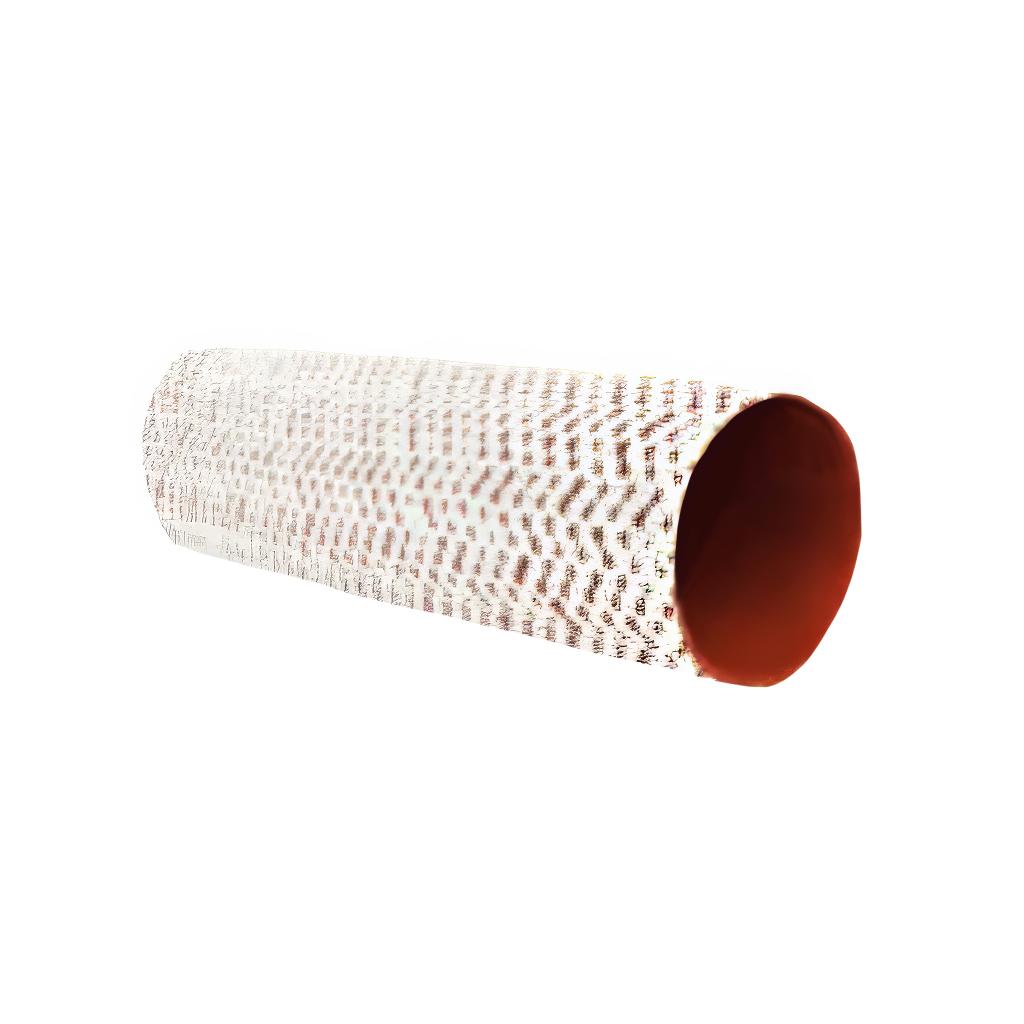

Thermoid 60 ft Aeroduct Jet Starter Pressure Hose 10H09-60-R1 - 00860201460

The Thermoid Aeroduct 10H09-60-R1 Jet Starter Pressure Hose - 00860201460 is an Aeroduct jet starter hose configuration intended for delivering high-volume start air at full pressure and temperature during aircraft engine start operations.

Jet starter hose assemblies are core GSE on the ramp and in the hangar, connecting air start units to the aircraft starter while withstanding repeated handling, temperature swings, and exposure to heat, solvents, and fuels. Thermoid designs pair a silicone rubber tube with reinforcement for burst strength, then add scuffer jacket protection to handle abrasion from drag across concrete surfaces. Similar high-temperature, high-flex hose assemblies are also used in industrial turbine service and other demanding air delivery applications.

Key Features

• High-temperature silicone tube: Built for demanding jet starter service
• Reinforced construction: Designed for high burst strength and dimensional stability
• Scuffer jacket protection: Options improve abrasion resistance and extend service life

Specifications

• Burst Strength: Over 450 psig
• Dimensions: 3.5" I.D. x 60'
• High Temperature: +500°F
• Low Temperature: -80°F
• Maximum Static Load: 2000 Pounds
• Proof Pressure Tested: All lengths tested at 200 psi at Chanute, KS factory
• Wall Thickness: 3/16" ± 1/32"
• Weight per Foot: 1.1 Pounds

Whether you are supporting aircraft line maintenance, heavy checks, or ground operations at an FBO, PJi® can help you match the right Thermoid part to your application and ensure you have the documentation you need. Contact our aviation specialists by phone, email, or chat for fit, spec, and availability support.
