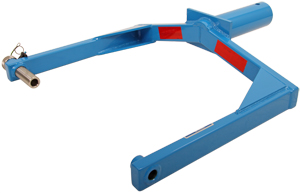

Tronair 01-0556-0000 – Towbar Head Attachment for Select Eurocopter Aircraft (CE)

The Tronair 01-0556-0000 Towbar Head Attachment is specifically designed for use with the Tronair 01-1202-0000 Multi-Head Towbar for towing the AS365N Dauphin and H155 helicopters manufactured by Eurocopter.

The towbar head attachment uses a sliding pin/stationary pin arrangement to interface with the aircraft tow point.

Standard Features

• Sturdy welded steel construction
• Positive locking to the towbar via a ball-lock T-pin
• Shear protection – both radial and/or compression tension – built in to protect the nose gear, as required
• CE marked
• Durable powder-coat finish (Tronair Blue)

Specifications

• Maximum Aircraft Gross Weight: 11,000 lbs. (4.9 metric tons)
• Length: 25.38” (64.4 cm) – from centerline to centerline
• Width: 24.8” (63 cm) – at the aircraft interface
• Height: 6” (15.2 cm)
• Weight: 23 lbs. (10.4 kg)
