Tronair 01-1281-0010 Towbar for CRJ and Challenger
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

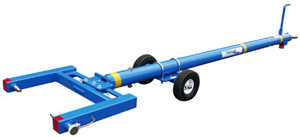

The Tronair 01-1281-0010 custom towbar is designed for towing the Canadair CRJ aircraft along with Challenger 870 and 890.
The towbar includes pneumatic tires with a urethane skid at the tug end. There is an eyebolt at the
towing end of the towbar which incorporates a spring to dampen shock loads. The towing head has
machined pins which attach to the aircraft tow point.
Maximum Aircraft Gross Weight: 82,775 lbs (37.5 Metric ton)
Length: 148.4 in (376.9 cm) from eyebolt centerline to aircraft attachment
Width: 35.2 in (89.4 cm)
Height: 8.56 in (21.7 cm) from ground to aircraft attachment
Tube: 4.5 in (11.43 cm) diameter
Standard Features
- Positive locking mechanism to aircraft tow point
- Tension, compression and/or radial shear protection incorporated where required
- Handles provided to lift towbar into position
- Unpainted surfaces plated to resist corrosion
- Pneumatic tires
- CE marked
- Finish: Durable Powder Coat Tronair Blue
| General Information | |
|---|---|
| Part # | 01-1281-0010 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Product Weight (Piece 1) | 200 lbs. |
| Product Dimensions (Piece 1) | 139 x 24 x 18 in. |
| Product Weight (Piece 2) | 65 lbs. |
| Product Dimensions (Piece 2) | 39 x 43 x 9 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Length | 153 (381) in (cm) |
| Material | Aluminum |
| Shock | Yes |
| Special Features | 1, 2, 3, 6 |
| Weight | 200 (91) lb (kg) |
| Accessories/Kits/Adapters | |
|---|---|
| K-4074 | Landing Gear Assembly Kit for towbar with 3 1/2" diameter tube |
| K-4075 | Landing Gear Assembly Kit for towbar with 4" diameter tube |
| K-4076 | Landing Gear Assembly Kit for towbar with 4 1/2" diameter tube |
| K-4499 | Converts 01-1308-0000 to 01-1308-0010 (accomodates new nose gear widths) |
| Spare Parts | |
|---|---|
| G-1310-1250 | PIN, 3/4 X 5.0 BALL LOK-T |
| K-1550 | KIT, REPL. WHEEL (SINGLE) |
| K-2537 | KIT, REPLACEMENT BOLTS |
| K-2660 | KIT, HANDLE |
| K-2663 | KIT, WHEEL-TOWBAR BRACKET (P) |
| K-2664 | KIT, AXLE (P) |
| K-2674 | KIT, REPLACEMENT WHEEL (D) |
| K-2958 | KIT, SHEAR PINS (QTY 3) |
| K-3274 | KIT, SHOCK ASSEMBLY |
| K-3734 | KIT, REPL. SKID (P) |
| K-4076 | KIT, TOWBAR HYD LIFT (4.5") |
| R-1855 | PIN, SLIDING |
Customers also viewed
Sikorsky S76 Ems Towbar (CE)
Towbar, Portable Crj-700 (Ce)
Portable Towbar - Hawker Premier (Ce)
Multi-Head Aircraft Towbar, 125,000-lb. Towing Capacity
Towbar, Custom Casa C295 (Ce)
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | Challenger 870 , Challenger 890 , CRJ1000 , CRJ700 , CRJ705 , CRJ900 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
