Discontinued or No longer available
This item has been discontinued or is no longer available.
It has been replaced by Tronair 02-7822C0110
CofC and 8130 available at no cost
Worldwide shipping available
Standard Features:
- Hand Pump with built-in pressure relief valve
- Threaded rams with improved hand wheel style safety nut
- Quick rising center extension
- Easy access filler/breather cap
- Heavy duty wheels on all jacks where spring loaded casters are not standard
- Hydraulic fluid: MIL-PRF-5606
- 3/4 in (2 cm) spherical radius cup jack pad
- Finish: Durable Powder Coat Tronair Blue
| General Information | |
|---|---|

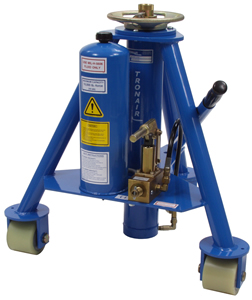

| Part # | 02-7822-0110 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Capacity | 5 tons |
| Closed Height | 27 (69) in (cm) |
| Fully Extended | 70 (178) in (cm) |
| Hydraulic Extension | 34 (86) in (cm) |
| Mechanical Extension | 9 (23) in (cm) |
| Single (S) or Multi (M) Stage | M |
| Weight | 160 (73) lb (kg) |
| Spare Parts | |
|---|---|
| G-1307-0825 | Safety Pin |
| H-2395 | Cover |
| K-1001 | Pump Seal Kit |
| K-1035 | Cylinder Seal Kit |
| K-1043-31 | Air Pump Kit |
| K-1061-02 | Replacement Reservoir Kit |
| K-1106 | Air Pump Manifold Kit |
| K-1685 | Air Pump Seal Kit (Hydraulic) |
| K-1686 | Air Pump Seal Kit (Pneumatic) |
| K-2232 | Weldment |
| K-2783 | Release Screw |
| K-3240 | Hand Wheel |
| R-1013-03 | Center Extension |
| TR-1026 | Ram Protection Ring |
Customers also viewed
44" to 76", CE-Marked
CE-Marked, Nose Landing Gear – ATR 42, ATR 72
108" to 154", CE-Marked, Aft Fuselage
Jack, Tripod 5 Ton
12-Ton Hydraulic Tripod Jack, 108" to 154"
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| ATR | 42 , 72 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
