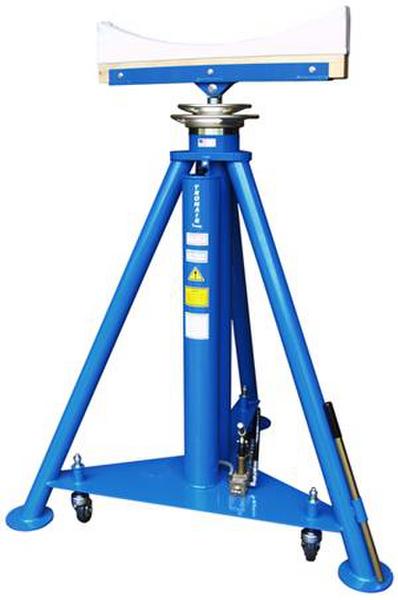

Tronair 03-5825-0110 – Single-Stage Tail Stand for Select CRJ Aircraft
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 03-5825-0110 Single-Stage Aircraft Tail Stand is used to stabilize a plane by its fuselage during maintenance. This unit is specifically intended for use on the CRJ700, CRJ705, and CRJ900 aircraft manufactured by Bombardier (Regional).
Standard Features
- Stabilizes the aircraft when lifting with tripod jacks
- Padding is included on all adapters that may come in contact with the aircraft's skin
- Welded steel tripod structure offers a sturdy and stable platform
- Dual casters for easy. maneuverability
- Mechanical ram lock nut prevents the lowering of the tail stand under a load
- Quick-action mechanical extension
- Single-speed, manually operated pump with pressure relief (valve?)
- Wide range of interface adapters
- Durable powder-coat finish (Tronair Blue)
Specifications
- Rated Capacity: 10,000 lbs. (4,535 kg)
- Hydraulic Fluid: MIL-PRF-5606
- Closed Height: 66.75" (169 cm)
- Mechanical Extension: 16.5" (41.9 cm)
- Hydraulic Extension: 42" (106.7 cm)
- Extended Height: 125.25" (318 cm)
- Weight: 600 lbs. (272 kg)
| General Information | |
|---|---|
| Part # | 03-5825-0110 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Freight NMFC | 178160 |
| Schedule B | 8431100090 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1100-110524 | Bolt, 5/8-18 Hex Head Grade 5 |
| G-1151-109210 | Screw, 1/2-13 Hex Socket Head Cap |
| G-1202-1105 | Stop Nut, 5/8-18 Elastic |
| G-1250-1100N | Flat Washer, 5/8 Narrow |
| G-1300-31200 | Pin, 5/16 X 2 Lg Roll |
| H-1009-01-1 | Handle, Pump |
| H-2326 | Stop Nut, 30-Ton |
| H-2329 | Stop Nut, 30-Ton |
| K-1051 | Kit, Replacement Ram Seal |
| K-2920 | Kit, Replacement Caster |
| K-3062 | Kit, Cradle Pad Assembly |
| K-3434 | Kit, Replacement Jack Weldment (P) |
| K-3436 | Kit, Replacement Reservoir (P) |
| K-3448 | Kit, Replacement Pump (D) |
| N-2004-15-S | Elbow, Extra-Long Male |
| N-2016-05-S | Tee, Run Swivel Nut |
| N-2250-10 | Adapter, Expanding Pipe |
| R-1150 | Extension, Screw |
| R-1878 | Pad, Cradle |
| TF-1043-06*22.5 | Assembly, Hose (#6 MB) |
| TR-1470 | Plate, Mounting |
| Z-1612-1 | Assembly, Ram |
Customers also viewed
Tail Stand for CRJ1000, CRJ200, CRJ700, & CRJ900 Aircraft
Support, Fairing
Tail Stand for Dash 8-100 & 8-300 Aircraft 1 thru 23 (Pole)
Tail Stand for C-21/Learjet 35A Aircraft
Aircraft Tail Stand for Dash 8-100, 8-200, & 8-300 – Post-Modification: 8/1795
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | CRJ700 , CRJ705 , CRJ900 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
