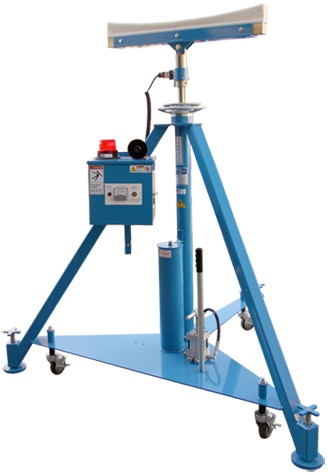

Tronair 03A5846C0100 Tail Stand with Alarm for Airbus A220-100 & AS220-300 Aircraft

The Tronair 03A5846C0100 is an aircraft tail stand used to support an airplane by its fuselage during maintenance and inspection, with a maximum load that does not exceed the rated capacity of the tail stand. This unit is specifically intended for use on the Airbus A220-100 (CS100) and A220-300 (CS300) aircraft.

This tail stand is outfitted with an alarm system that alerts the operator when a load shift in the aircraft fuselage is being applied to the top of the cradle. The unit attached to the tail stand sounds a loud 120 dB warbling tone until the aircraft is lifted off the cradle.

Standard Features

• Stabilizes the aircraft when lifting with tripod jacks
• Padding is included on all adapters that may come in contact with the aircraft's skin
• Welded steel tripod structure offers a sturdy and stable platform
• Dual casters for easy maneuverability
• Quick-action mechanical extension
• Wide range of interface adapters
• CE marked
• Durable powder-coat finish (Tronair Blue)

Safety Features

• Ram Lock Nut: Prevents the lowering of the ram. The ram lock nut must be lowered as the cradle is lifted into position.
• CE Hand Pump with Check Valve: Prevents unintentional descent of the aircraft if the relief valve should fail.
• Mechanical Lock Nut Retaining Ring: Keeps the mechanical lock nut in place to prevent unwanted movement.
• Pressure Relief Valve: Prevents overload during aircraft raising operations.

Technical Specifications

• Rated Capacity: 2,000 lbs (907 kg)
• Temperature Range: 25°F to 100°F (-4°C to 38°C)
• Hydraulic Fluid: MIL-PRF-5606
• Minimum Closed Height: 75" (190 cm)
• Mechanical Extension: 13" (33 cm)
• Hydraulic Extension: 42" (107 cm)
• Maximum Height Obtainable: 130" (330 cm)
• Width: 63.5" (161.3 cm)
• Length: 72.6" (184.3 cm)
• Weight: 410 lbs (186 kg)
• Input Voltage: AC 115/230, 50/60 Hz
• Battery Charger: 12V, 5 amps
• Battery: 12V, 7.2 amp-hours
• Alarm (Battery-Powered): 12V DC at 24 amps
• Alarm Horn: 120 dB
