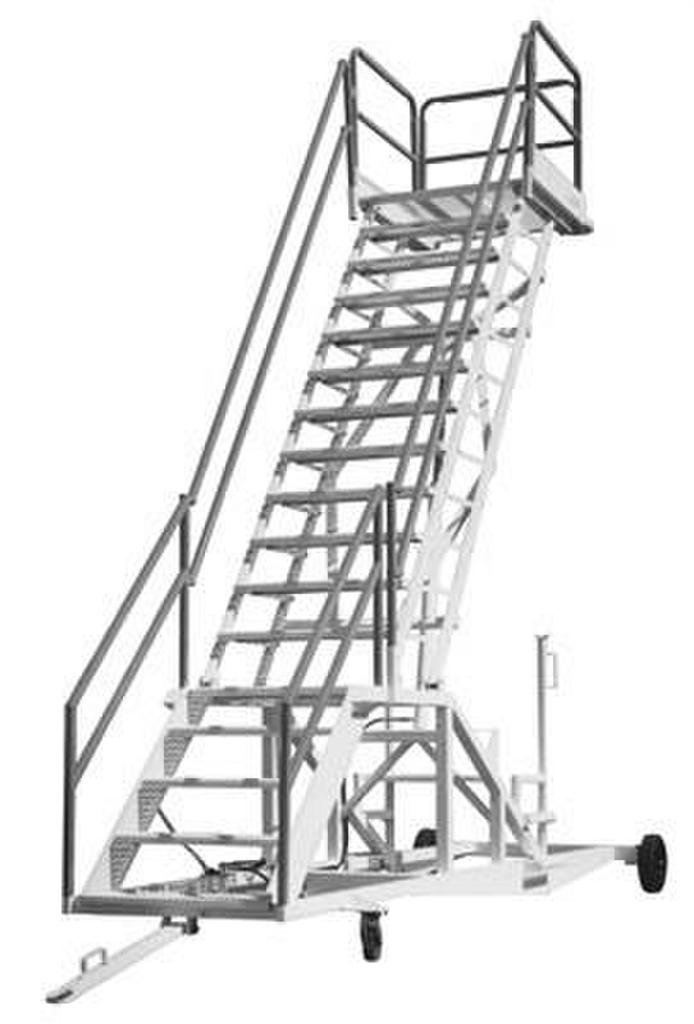

Tronair 04-6041-0100 – Hydraulic Maintenance Platform, 7' to 15' (CE)

The Tronair 04-6041-0100 Hydraulic Maintenance Platform is a self-elevating work platform designed to provide safe access to different heights and areas of an aircraft for various maintenance and repair tasks.

Standard Features

• Sturdy welded steel construction
• 500-lb. (227 kg) capacity
• 41" (104 cm) removable guardrails can be stored in the base (Compliant with OSHA Act 1910 Subpart D – Walking Working Surfaces – built-in fall protection with guardrails. Removability of guardrails also adds to the ability to apply different fall protection techniques that may be more applicable given the situation and the work to be done.)
• Hydraulic cylinder contains 11 mechanical safety locking positions (Compliant with OSHA Act 1910 Section 5[a] [1] – General-Duty Clause – eliminates potential known hazard of mechanical/hydraulic failure by adding mechanical safety locking positions to help prevent the platform from falling.)
• Nonslip grating on the stair steps and platform (Compliant with OSHA Act 1910 Subpart D – Walking Working Surfaces – aids in preventing slips, trips, and falls.)
• Toe board (Compliant with OSHA Act 1910 Subpart D – Walking Working Surfaces – built-in falling object protection with toe boards.)
• Double-acting hydraulic hand pump with 3-gallon (11 liters) reservoir
• Two 8" (20 cm) swivel casters with foot locks and polyurethane tread wheels for easy maneuvering
• Two 16" (41 cm) pneumatic wheels
• Detachable towbar for easy maneuverability
• Poly-vinyl bumpers help protect the aircraft skin
• CE marked
• Durable powder-coat finish (Tronair Blue)

Specifications

• Platform Height: 7' to 15' (2 to 4.6 m)
• Working Range: 10' to 21' (3 to 6.4 m)
• Raised Height Clearance: 18.4' (5.6 m)
• Platform Size: 4' x 4' (1.2 x 1.2 m)
• Base Dimensions (Collapsed): 5.8' x 20.6' (1.8 x 6.3 m)
• Weight: 2,070 lbs. (939 kg)
