Tronair 06-5004-0500 8 Gallon Fluid Service Unit - 5606 / 83282

Tronair 06-5004-0500
Manufacturer: Tronair
Part Number: 06-5004-0500
NSN: 4920-01-312-5326
Condition: New
Used Available

We have used or refurbished of this item in stock (subject to prior sale).

Item Not Available New

This item has been discontinued or is no longer available.

It has been replaced by 06-5004C0500.

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Fluid Service Unit - 8 Gallon - 5606 / 83282
Hydraulic Service Unit With Coupling
Fluid Service Unit - 8 Gallon - Skydrol - 3000 PSI
Fluid Service Unit - 8 Gallon - 5606 / 83282 - Dual Hose Selector Valve
Fluid Service Unit (Ce) - 5606 / 83282 - 2 Gallon Stainless Steel Reservoir

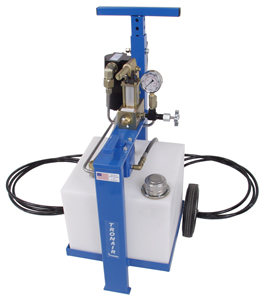

The 06-5004-0500 is a 8 gallon aircraft fluid service unit / reservoir for use with 83282 or 5606 hydraulic fluid.

Standard Features

  • 8 gal (30 l) polyethylene reservoir
  • 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector
  • Shut off valve for static testing
  • 2 micron filtration (beta rating > 2000 @ 4µm per ISO 4572)
  • Dual stage manual hand pump
  • Stroke displacement: 2.1 cu in/stroke to 500 psi, .4 cu in/stroke to 5,000 psi
  • 8 in (20 cm) semi-pneumatic tires
  • Dual hose selector valve standard on 06-5004 and 06-5041 series only
  • Sturdy welded steel construction
  • 06-5004C0500 - CE marked
  • Finish: Durable Powder Coat Tronair Blue
Alternate Models
06-5004C0500New Part Number
Specifications
Max Working Pressure3,000 (207) psi (bar)
Length19 (48) in (cm)
Height32 (81) in (cm)
Width19 (48) in (cm)
Pressure Gauge5,000 (345) psi (bar)
Fluid TypeMIL-PRF-5606 / MIL-PRF-83282
Weight65 (29.5) lb (kg)
Compatible Aircraft*
Airbus Military (CASA)CN-235/HC-144A
Bombardier (Business)Challenger 300, Challenger 350, Learjet 60
EmbraerERJ-170, ERJ-175, ERJ-190, ERJ-195, Lineage 1000
Fairchild/DornierDornier DO328, Dornier DO328 Jet
GrobG120A, G120TP
GulfstreamG280
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight88 lbs.
Pkg. 1 Dimensions37 in. x 25 in. x 29 in.
Servicing

We service the 06-5004-0500 and other items like it at our facility.

A few of the common services we offer for this item are:
• Overhaul / Refurbishment
• New Pumps
• New Filters
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 06-5004-0500. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Filter Element Kit
• Seal Kit
• Replacement Pump
• Replacement Reservoir
• Hose
• Aircraft Service Couplers
Renting

We provide short-term and long-term rentals for the 06-5004-0500. We will ship the item directly to you and arrange for pickup at the end of your lease.
